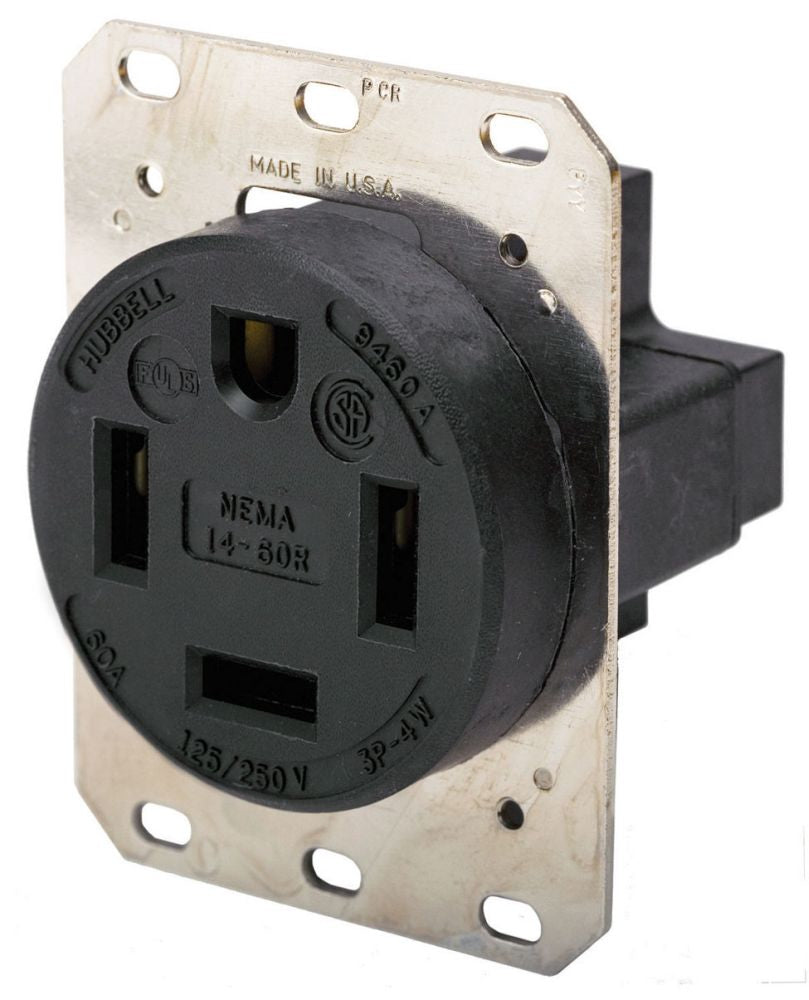

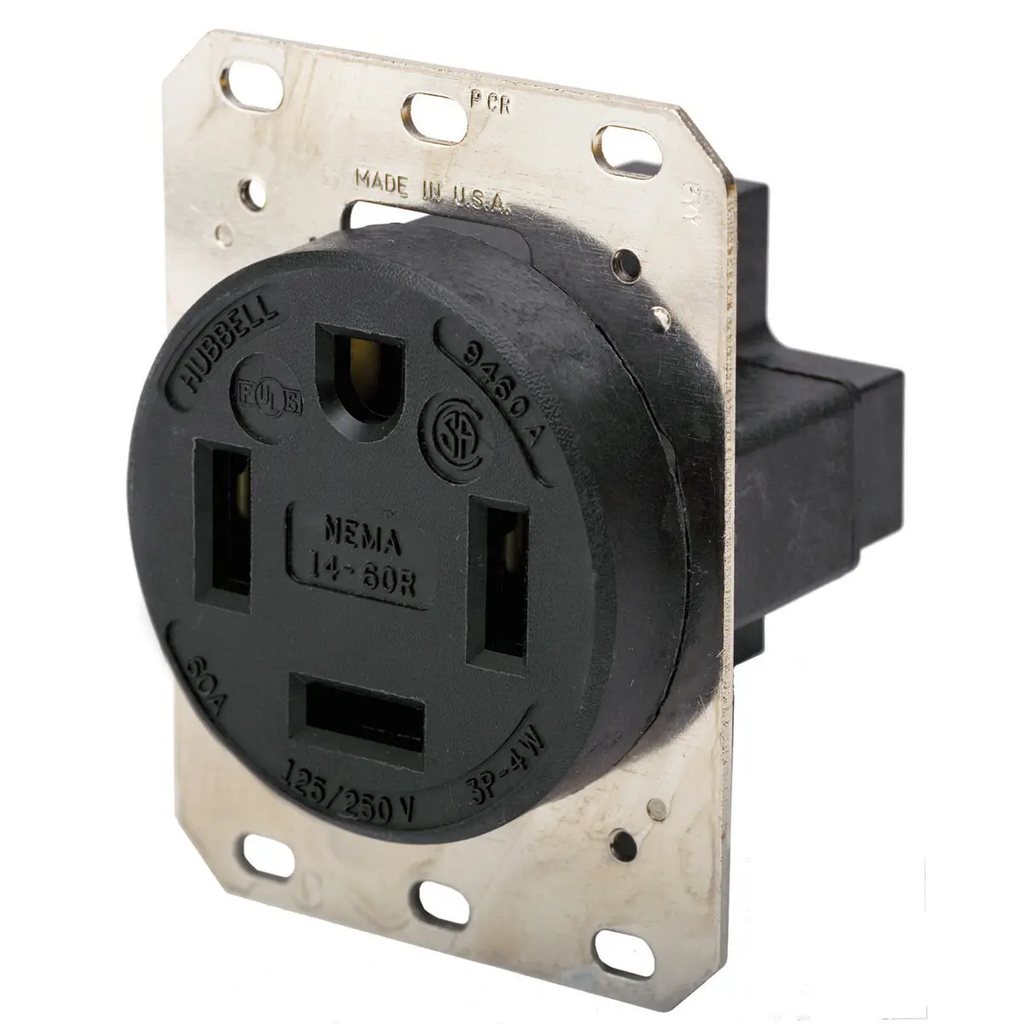

HBL9460A - Hubbell 60A 125/250V 3-Pole 4-Wire NEMA 14-60R Straight Blade Receptacle Black

HBL9460A

HBL9460A is a Hubbell 60 Amp, 125/250 Volt, 3-Pole 4-Wire NEMA 14-60R straight blade receptacle in black color.This industrial grade receptacle features a reinforced thermoplastic polyester body with 0.04 inch brass blades and a 0.062 inch plated steel mounting strap. It is rated for 60 Amps and 125/250 Volts with a 3-pole, 4-wire grounding configuration. The device is UL and CSA certified, designed for screw mounting, and withstands a dielectric voltage of 2,000V minimum. It operates reliably in temperatures from -40°C to 75°C continuous without impact. The receptacle accommodates #12 AWG to #4 AWG copper wire and meets NEMA 14-60R standards.

Key Specifications
• Amperage: 60 A
• Voltage Rating: 125/250 V
• Poles: 3
• Wires: 4-Wire Grounding
• Configuration: NEMA 14-60R
• Mounting Type: Screw Mounting
• Material: Reinforced Thermoplastic Polyester
• Blade Material: 0.04 Inch Brass
• Dielectric Strength: 2,000 V minimum
• Operating Temperature: -40°C to 75°C continuous
• Certifications: UL, CSA
• Color: Black

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL9460A
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve
• Voltage : 125/250 125/250

Product Data

• UPC : 783585015347
• GTIN : 00783585015347
• Dimensions : 3.28 in H x 2.75 in W x 2.44 in D 3.28 x 2.75 x 2.44 3.28 x 2.75 x 2.44 in
• Weight : 1
