Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL9432C

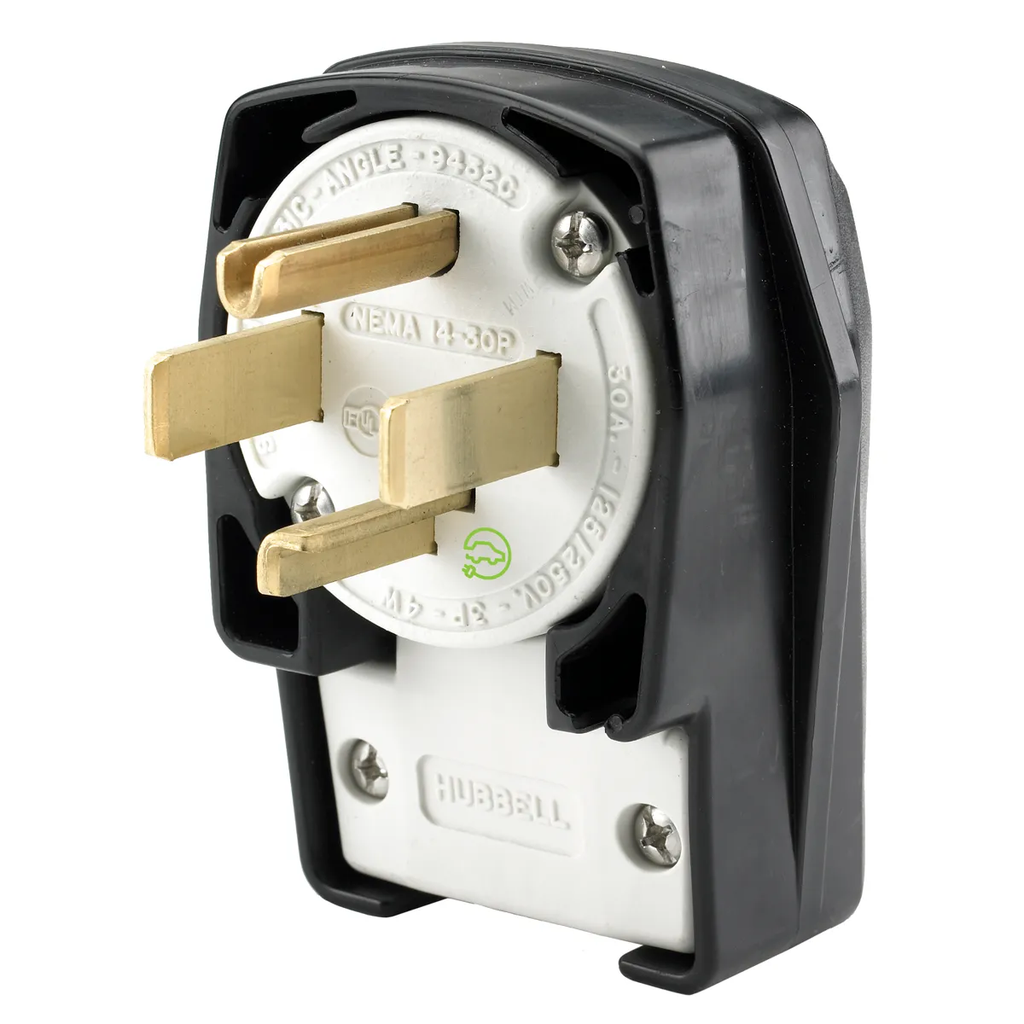

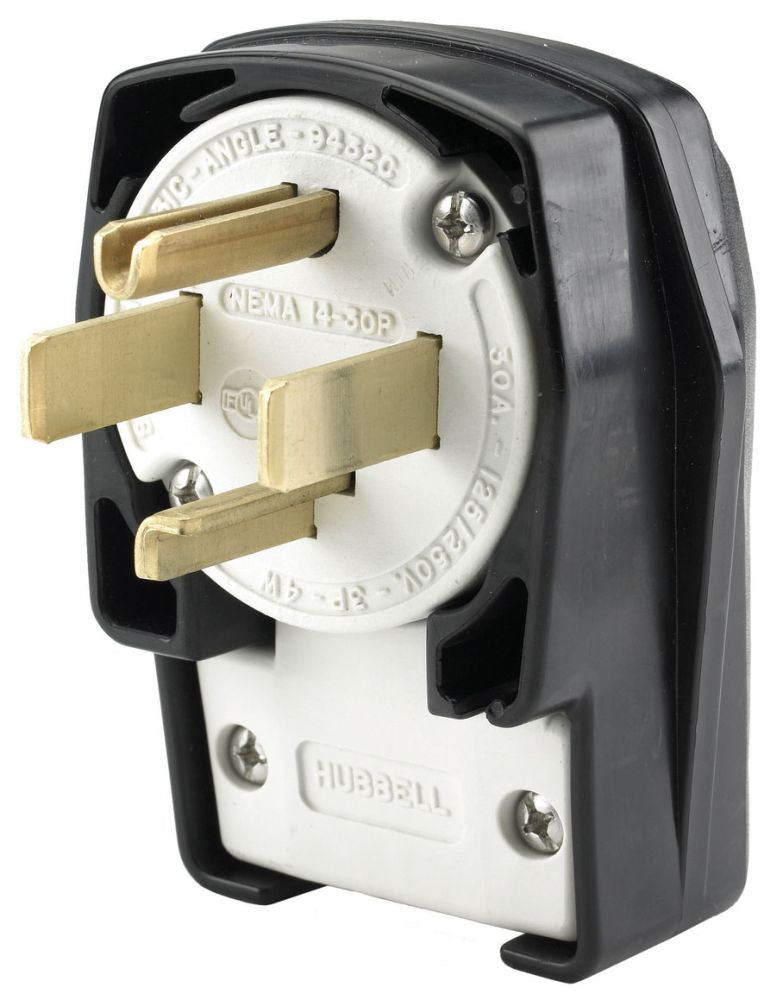

HBL9432C is a heavy-duty, industrial-grade angled straight blade plug designed for 30 amp, 125/250 volt applications.This Hubbell plug features a 3-pole, 4-wire grounding configuration with a durable black nylon housing and reinforced thermoplastic polyester components. It supports wire sizes from #12 AWG to #4 AWG and withstands a dielectric strength of 2,000 volts minimum. Certified to UL 498 and CSA standards, it meets NEMA 14-30P specifications and operates reliably in temperatures from -40°C to 75°C.
- Key Specifications
- Amperage Rating: 30 A
- Voltage Rating: 125/250 V
- Number of Poles: 3-Pole
- Number of Wires: 4-Wire
- Material: Black Nylon Housing
- Cord Range: 0.625" to 1.310"
- Dielectric Strength: 2,000 V minimum
- Configuration: NEMA 14-30P Angled Plug
- Operating Temperature: -40°C to 75°C
- Certifications: UL Listed, CSA Certified
- Series: Extra Heavy Duty
- Part Number: HBL9432C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 125/250 125/250
- UPC : 783585015446
- GTIN : 00783585015446
- Dimensions : 4.5 in H x 3.38 in W x 2.38 in D 4.5 x 3.38 x 2.37 in
- Weight : 1
