Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL9431C

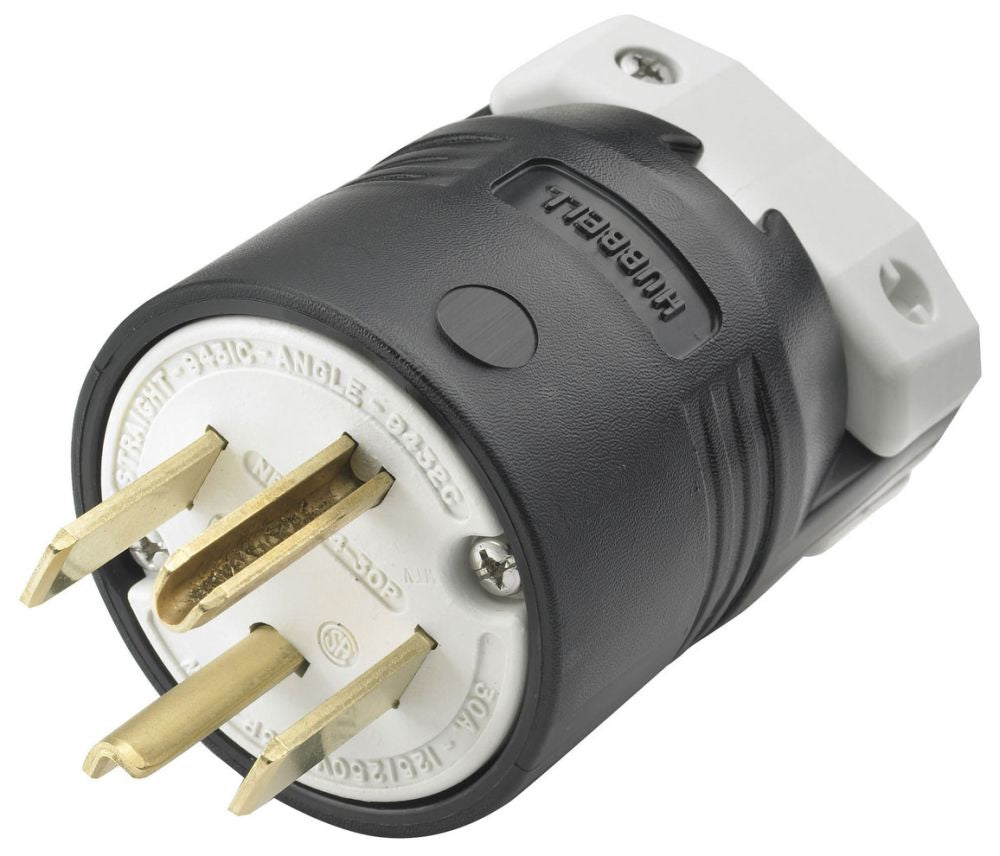

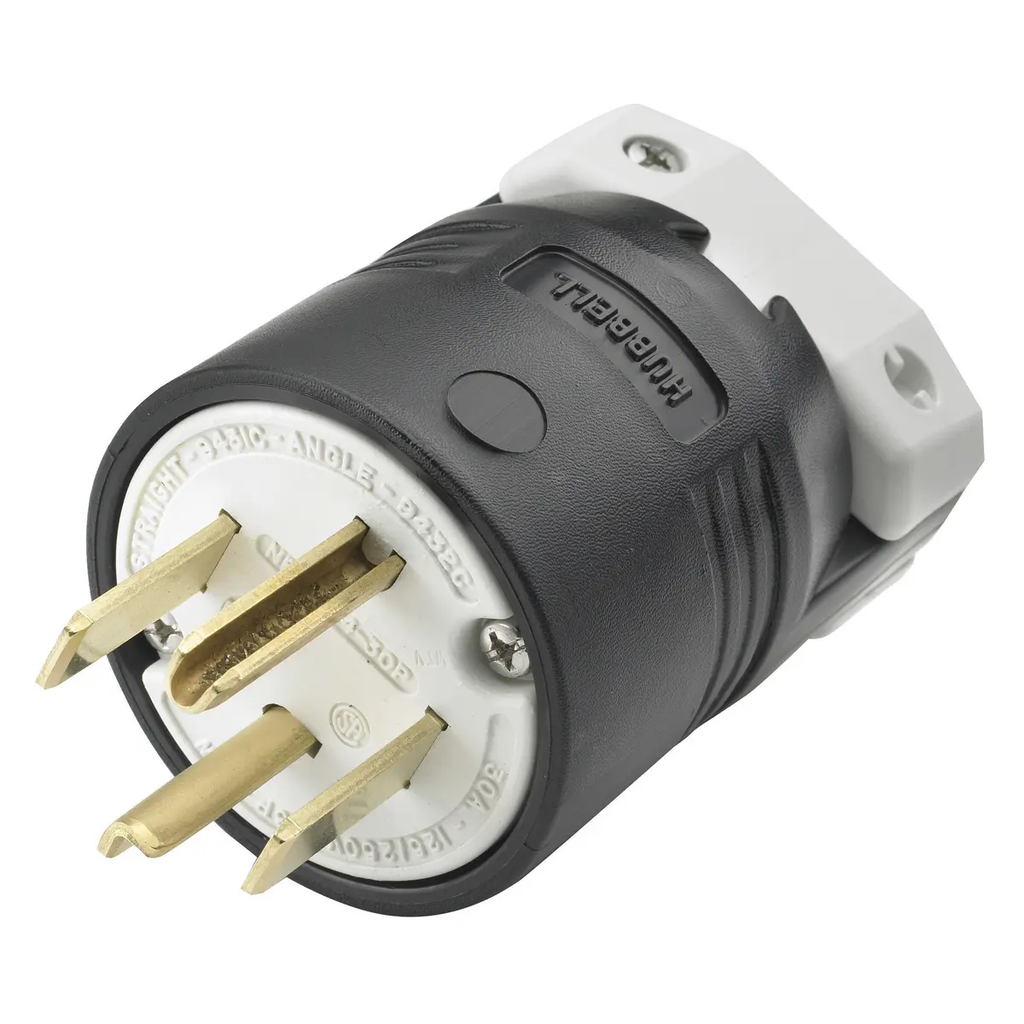

HBL9431C is a heavy duty nylon straight blade plug designed for industrial and commercial applications.This 3-pole, 4-wire grounding plug is rated for 30 amps and 125/250 volts, featuring a NEMA 14-30P configuration. It supports wire sizes from #12 AWG to #4 AWG and withstands a dielectric voltage of 2,000V minimum. The plug is constructed from durable nylon material, suitable for continuous operation up to 75°C and down to -40°C without impact. It is UL and CSA certified for current interrupting at full rated current and meets IP20 ingress protection.
- Key Specifications
- Amperage: 30 A
- Voltage: 125/250 V
- Poles: 3
- Wires: 4
- Configuration: NEMA 14-30P
- Material: Nylon
- Cord Range: 0.625" - 1.310"
- Dielectric Strength: Withstands 2,000 V minimum
- Operating Temperature: -40°C to 75°C continuous
- Certifications: UL, CSA
- Mounting Type: Cord Mount
- Weight: 0.85 lb
- Part Number: HBL9431C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 125/250 125/250
- UPC : 783585015309
- GTIN : 00783585015309
- Dimensions : 4.13 in L x 2.88 in W 4.13 x 2.88 x 2.88 in
- Weight : 1
