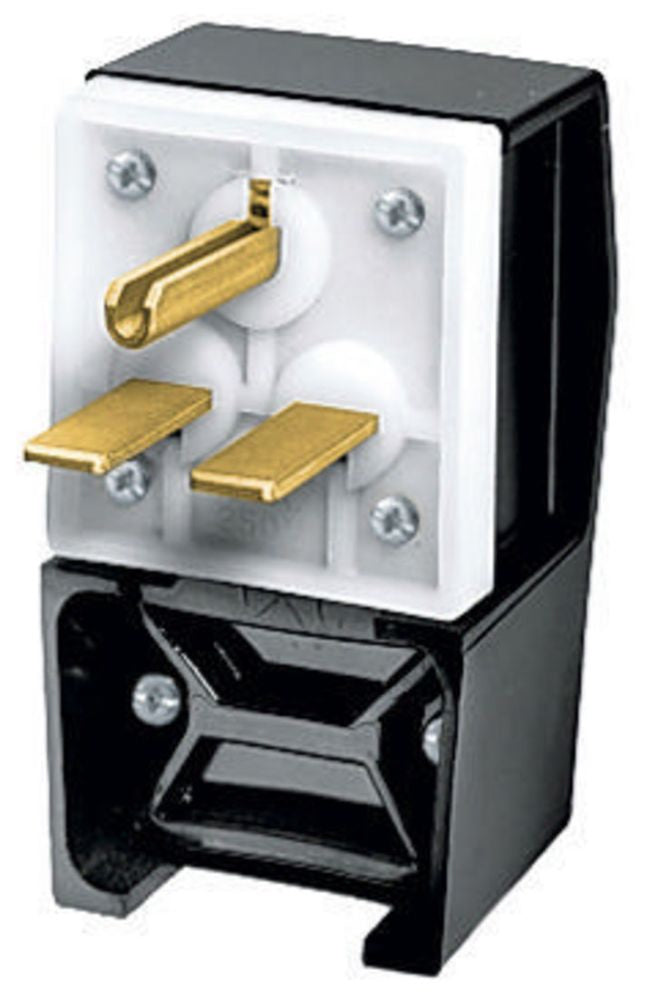

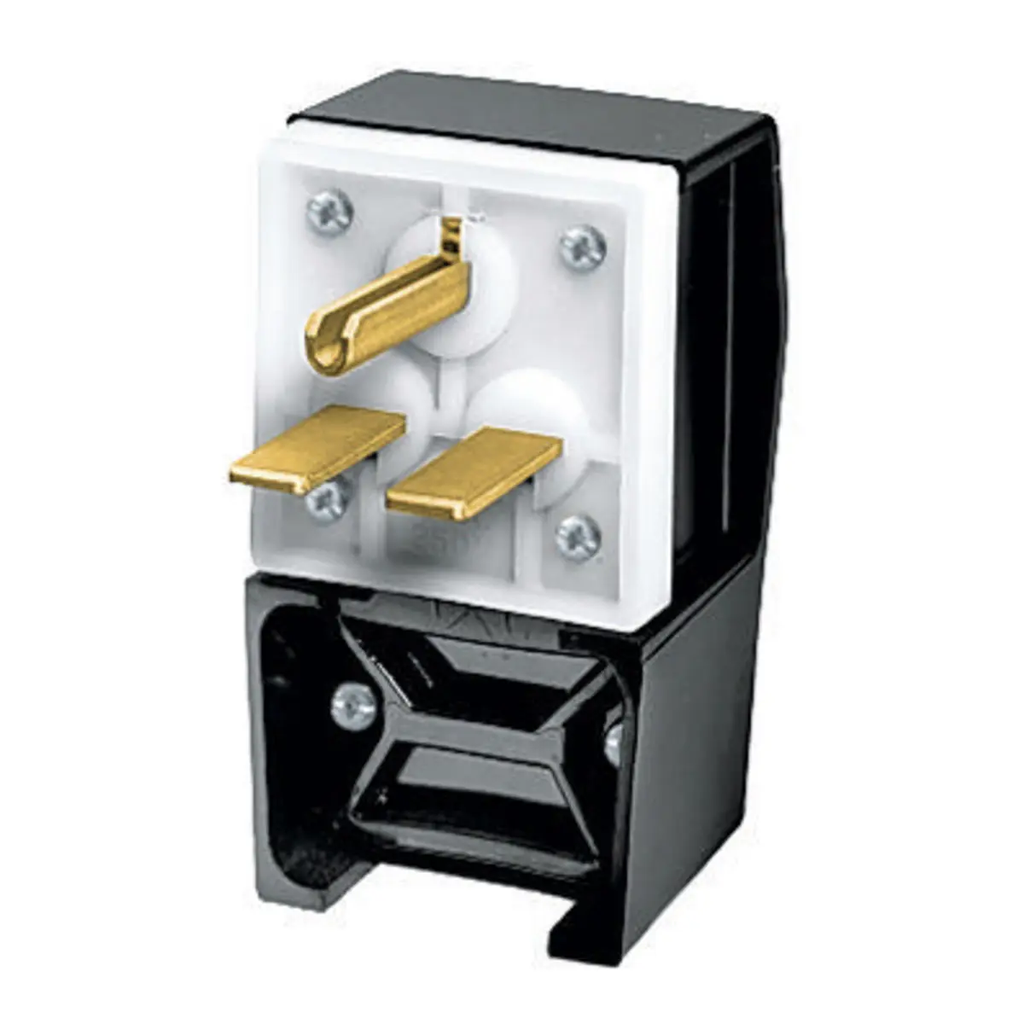

HBL9331 - Hubbell 30A 250V 2-Pole 3-Wire NEMA 6-30P Angled Straight Blade Plug

HBL9331

HBL9331 is a heavy-duty angled straight blade plug designed for industrial and commercial applications requiring reliable power connections.This Hubbell Insulgrip plug features a 2-pole, 3-wire grounding configuration with a 30A, 250V rating and NEMA 6-30P compatibility. Constructed from reinforced thermoplastic/nylon, it offers durability and resistance to harsh environments. The plug is suitable for cord sizes from #12 AWG to #4 AWG and is rated for continuous operation from -40°C to 75°C. It is UL Listed to UL498 and CSA Certified to C22.2 No. 42, ensuring compliance with safety standards.

• Part Number: HBL9331
• Manufacturer: Hubbell
• Amperage Rating: 30 A
• Voltage Rating: 250 VAC
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 6-30P
• Mounting Type: Cord Mount
• Material: Thermoplastic/Composite
• Wire Size: #12 AWG to #4 AWG
• Operating Temperature: -40°C to 75°C
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL9331
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve
• Voltage : 250 250

Product Data

• UPC : 783585015248
• GTIN : 00783585015248
• Dimensions : 4.33 in H x 2.75 in W x 1.88 in D 4.34 x 2.75 x 1.88 in
• Weight : 5.19
