Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL9308

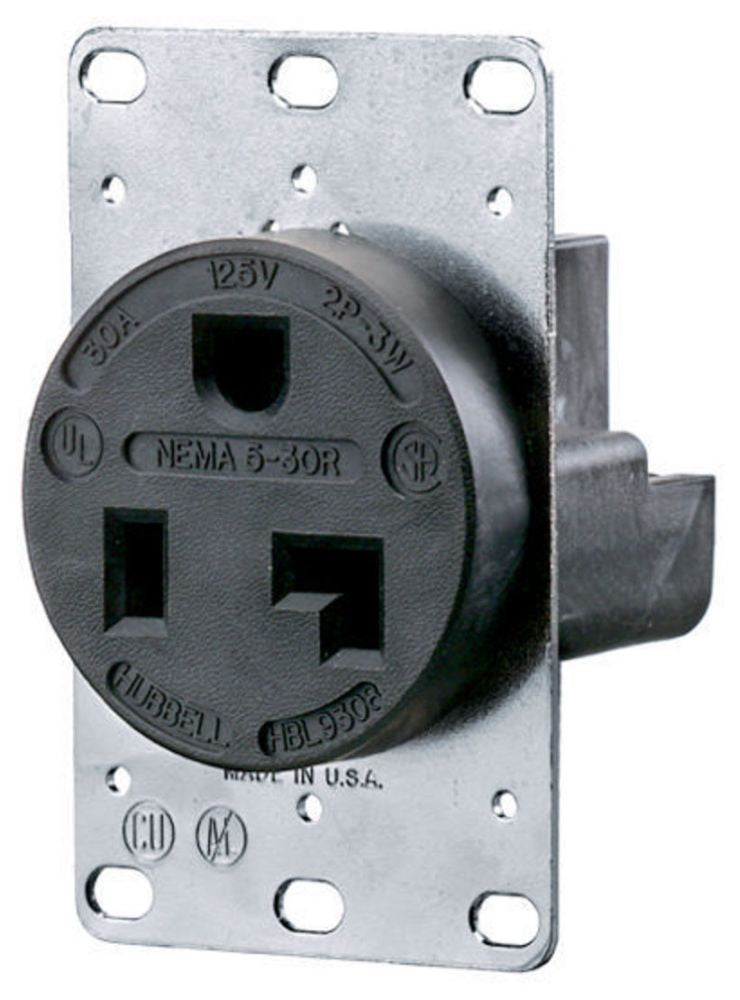

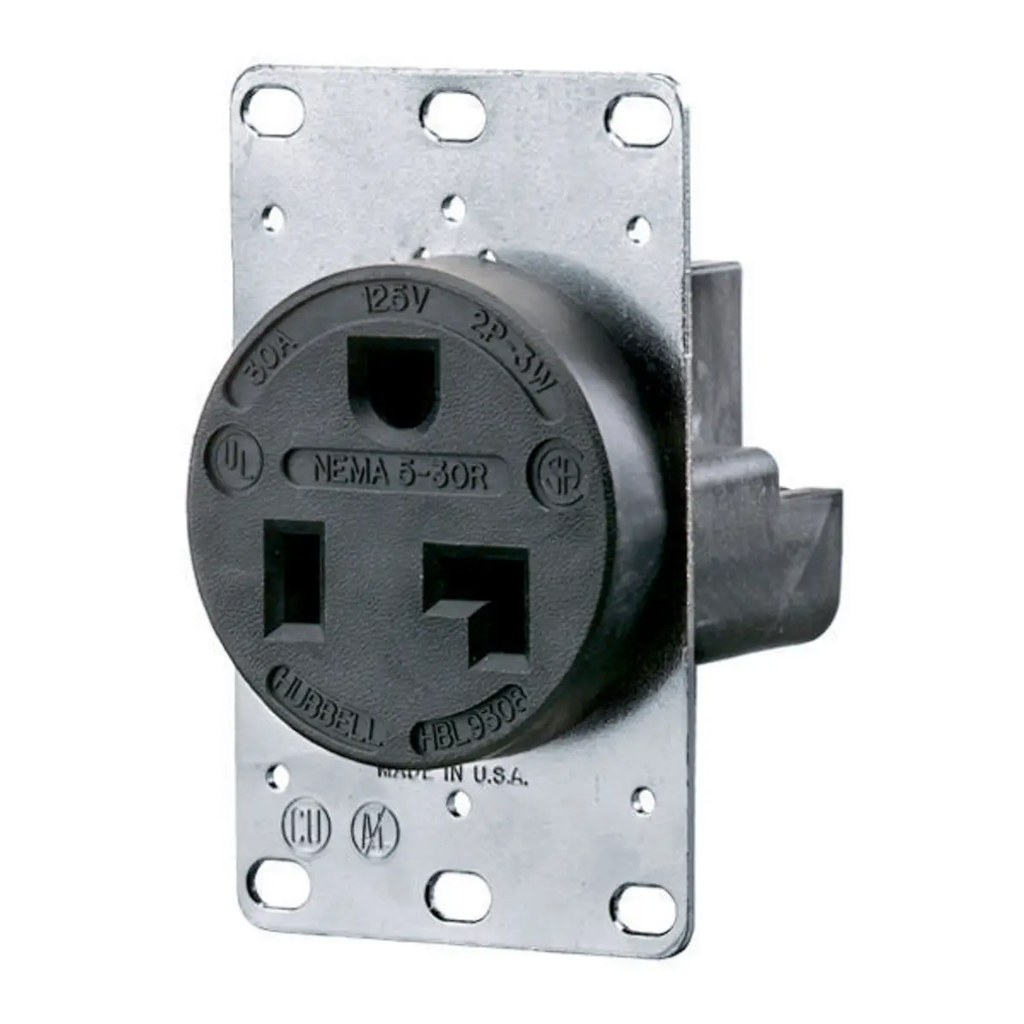

HBL9308 is a heavy duty single receptacle designed for demanding industrial and commercial applications. This Hubbell receptacle features a 2-pole, 3-wire grounding configuration with a 30A, 125V rating and NEMA 5-30R compatibility. Constructed with reinforced thermoplastic polyester and brass contacts, it offers reliable performance and durability in dry indoor environments. The device includes sequenced contacts for added protection and a one-piece design for easy installation. Hubbell HBL9308 receptacles are ideal for heavy-duty use and are certified to UL 498, CSA, and NEMA WD-6 standards. The receptacle is suitable for back and side wire connections and accommodates #12 AWG through #4 AWG copper wire. The mounting type is screw, flush, and the device is rated for maximum continuous operation at 75°C and minimum -40°C without impact.
- Part Number: HBL9308
- Manufacturer: Hubbell
- Amperage Rating: 30 A
- Voltage Rating: 125 V
- Number of Poles: 2
- Number of Wires: 3-Wire Grounding
- Mounting Type: Screw, Flush
- Interrupt Rating: Full rated current
- Series/Frame: Extra Heavy Duty
- Certifications: UL 498, CSA, NEMA WD-6, RoHS
- Wire Size: #12 AWG to #4 AWG
- Operating Temperature: -40°C to 75°C
Specifications
- Part Number: HBL9308
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125 125
Product Data
- UPC : 783585015217
- GTIN : 00783585015217
- Dimensions : 2.25 in W x 2.23 in D x 3.28 in H 3.28 in H x 2.25 in W x 2.23 in D
- Weight : 1
