Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL8431C

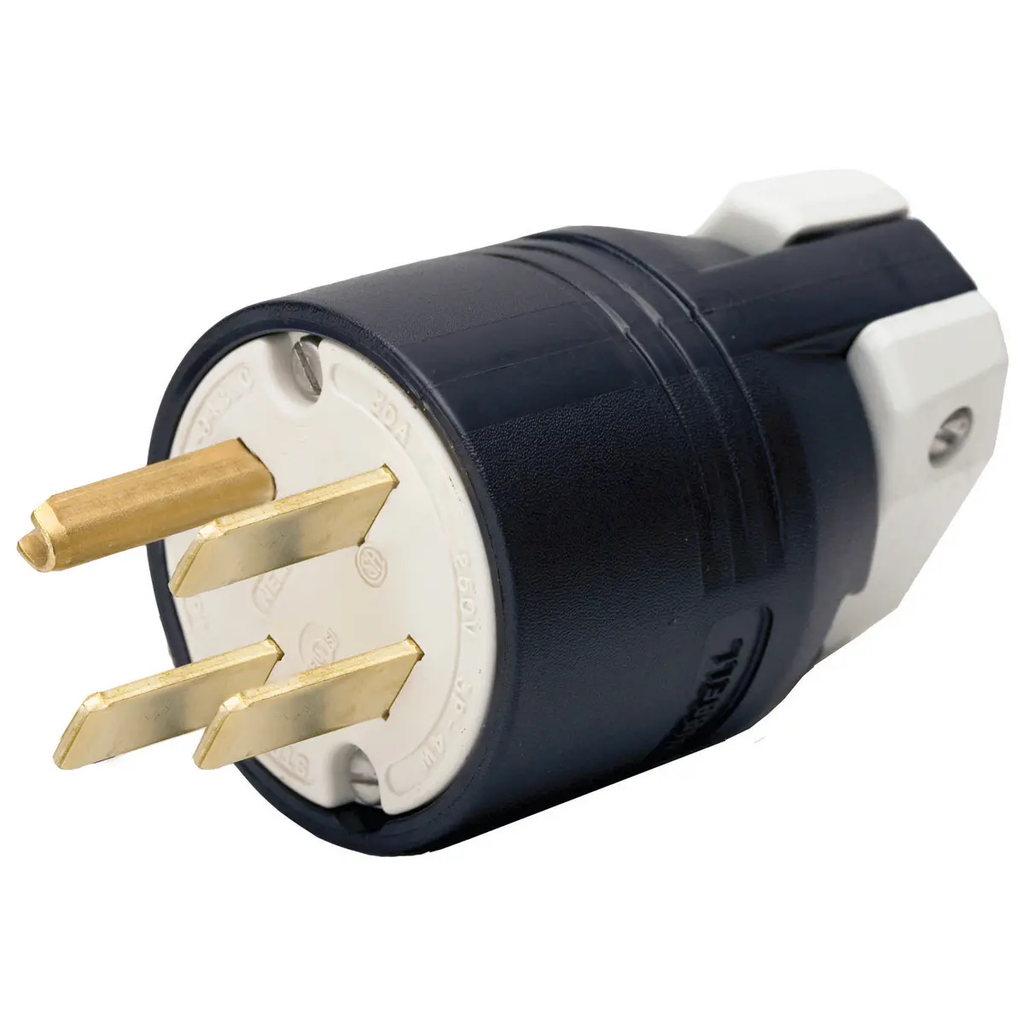

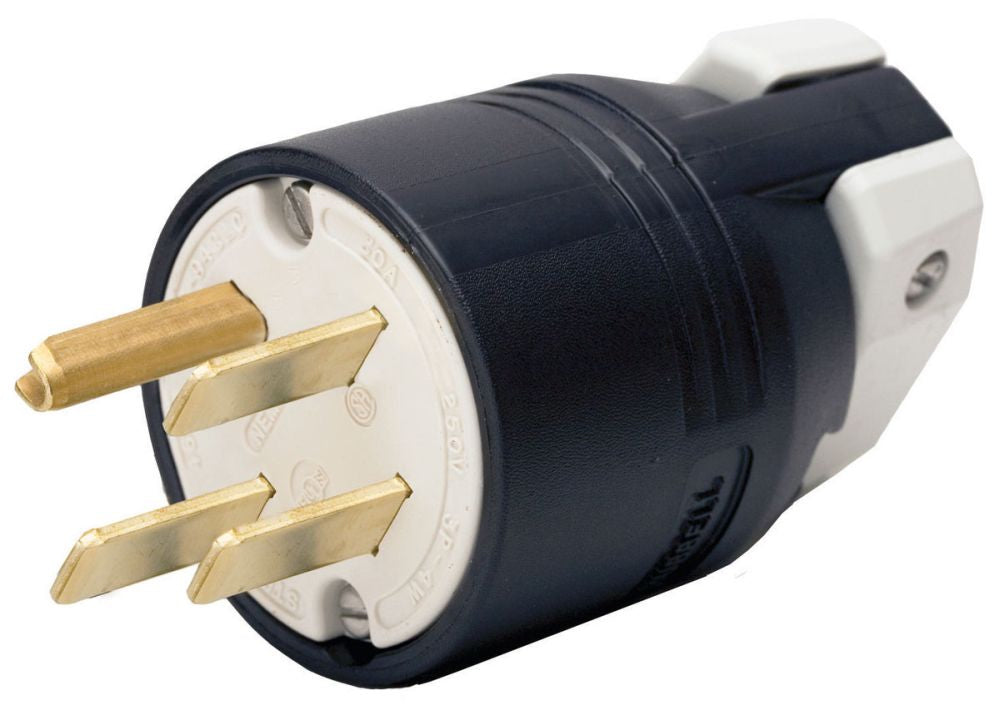

HBL8431C is an industrial-grade straight blade plug designed for reliable 3-phase power connections in demanding environments. This Hubbell plug features a robust black nylon housing and is rated for 30A, 250VAC, 3-pole, 4-wire grounding applications with NEMA 15-30P configuration. Ideal for use in industrial and commercial power distribution systems requiring secure and durable connections. The HBL8431C plug is built for heavy-duty performance with a dielectric strength of 2,000V minimum and a wide operating temperature range from -40°C to 75°C. Its cord grip accommodates wire sizes from #12 AWG to #4 AWG, and the plug is certified for current interrupting at full rated current. The plug is rated for industrial environments and features IP20 ingress protection.
- Part Number: HBL8431C
- Manufacturer: Hubbell
- Amperage Rating: 30A
- Voltage Rating: 250VAC
- Poles: 3-Pole
- Wires: 4-Wire Grounding
- NEMA Configuration: 15-30P
- Interrupt Rating: Full rated current
- Dielectric Strength: 2,000V minimum
- Operating Temperature: -40°C to 75°C
- Wire Size: #12 AWG to #4 AWG
- Ingress Protection: IP20
- Material: Black Nylon
- Mounting Type: Straight Blade Plug
- Series/Frame: Industrial Grade
- Certifications: RoHS Compliant
Specifications
- Part Number: HBL8431C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 250 250
Product Data
- UPC : 783585015408
- GTIN : 00783585015408
- Dimensions : 2.88 in Dia x 4.13 in L
- Weight : 0.4
