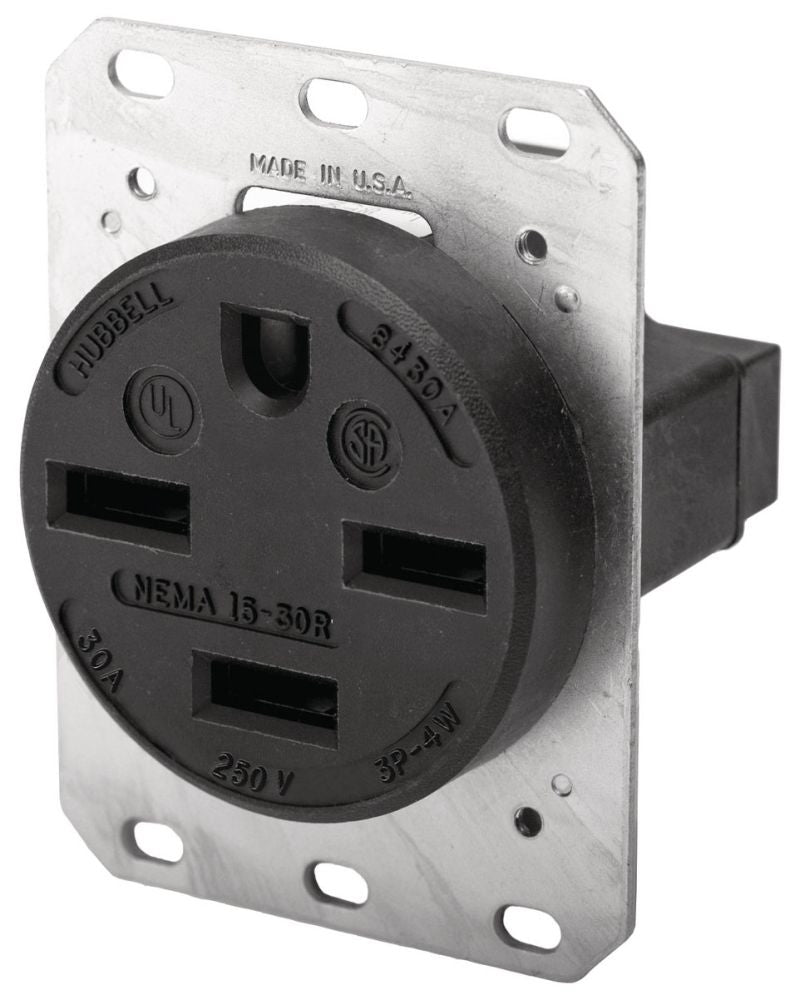

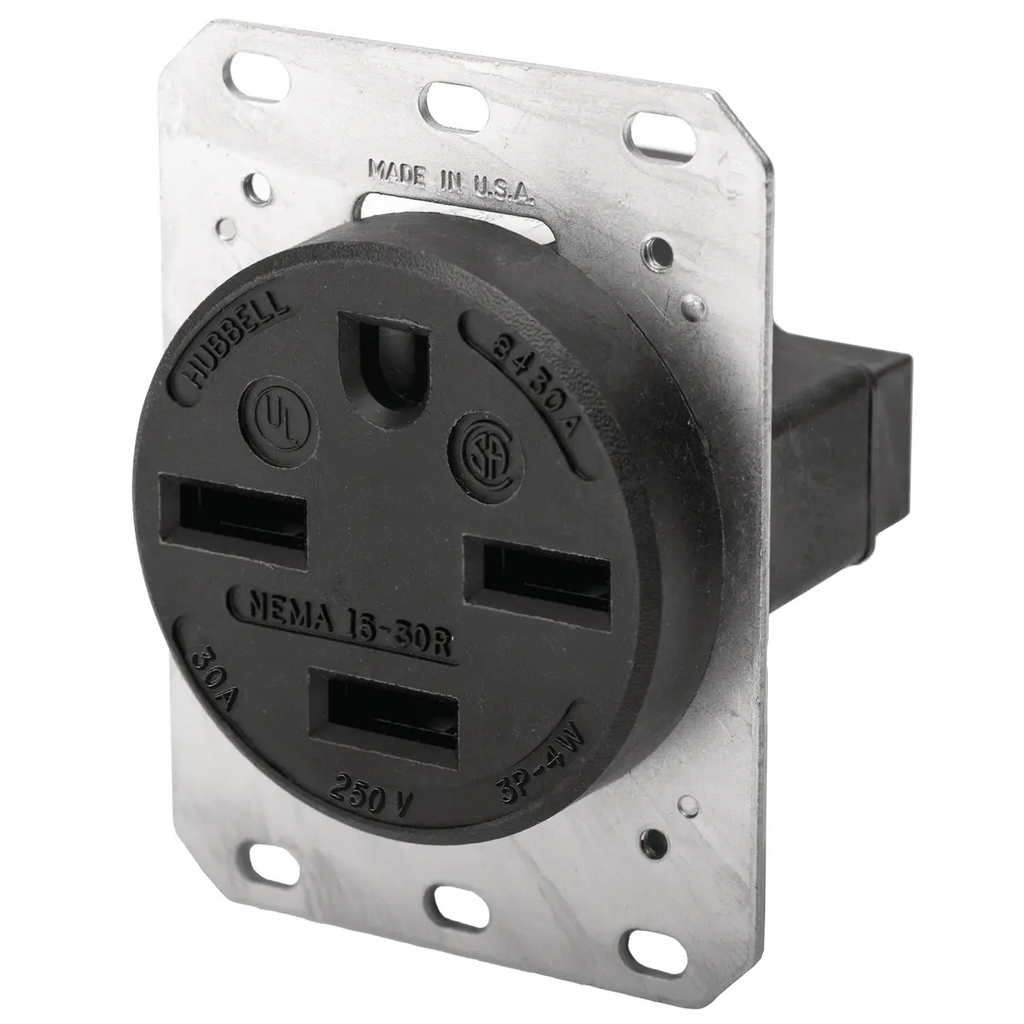

HBL8430A - Hubbell 30A 250V 3-Pole 4-Wire Flush Receptacle NEMA 15-30R Black Industrial Grade

HBL8430A

HBL8430A is a Hubbell industrial grade flush receptacle designed for 30 amp, 250 volt, 3-pole, 4-wire grounding applications with NEMA 15-30R configuration.HBL8430A features a durable thermoplastic/composite housing with screw mounting and back and side wired screw terminals. It is rated for 30 amps and 250 VAC, suitable for three-phase power, and withstands a dielectric voltage of 2,000V minimum. The device supports wire sizes from #12 AWG to #6 AWG and operates reliably in temperatures from -40°C to 75°C continuous without impact. It is UL listed, CSA certified, and compliant with NEMA WD-6 standards.

Key Specifications
• Amperage Rating: 30 A
• Voltage Rating: 250 VAC
• Number of Poles: 3-Pole
• Number of Wires: 4-Wire Grounding
• Mounting Type: Screw Mounting
• Dielectric Strength: Withstands 2,000V minimum
• Material: Thermoplastic/Composite Housing, Brass Contacts
• Connectivity: Back and Side Wired Screw Terminals
• Operating Temperature: -40°C to 75°C continuous
• Certifications: UL Listed, CSA Certified, NEMA WD-6 Compliant
• Configuration: NEMA 15-30R
• Phase: Three Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL8430A
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve
• Voltage : 250 250

Product Data

• UPC : 783585015149
• GTIN : 00783585015149
• Dimensions : 2.75 in W x 2.44 in D x 3.69 in H 3.69 in H x 2.75 in W x 2.44 in D
• Weight : 5.19
