HBL8300I - Hubbell 20A 125V 2-Pole 3-Wire Hospital Grade Duplex Receptacle Ivory 5-20R

HBL8300I

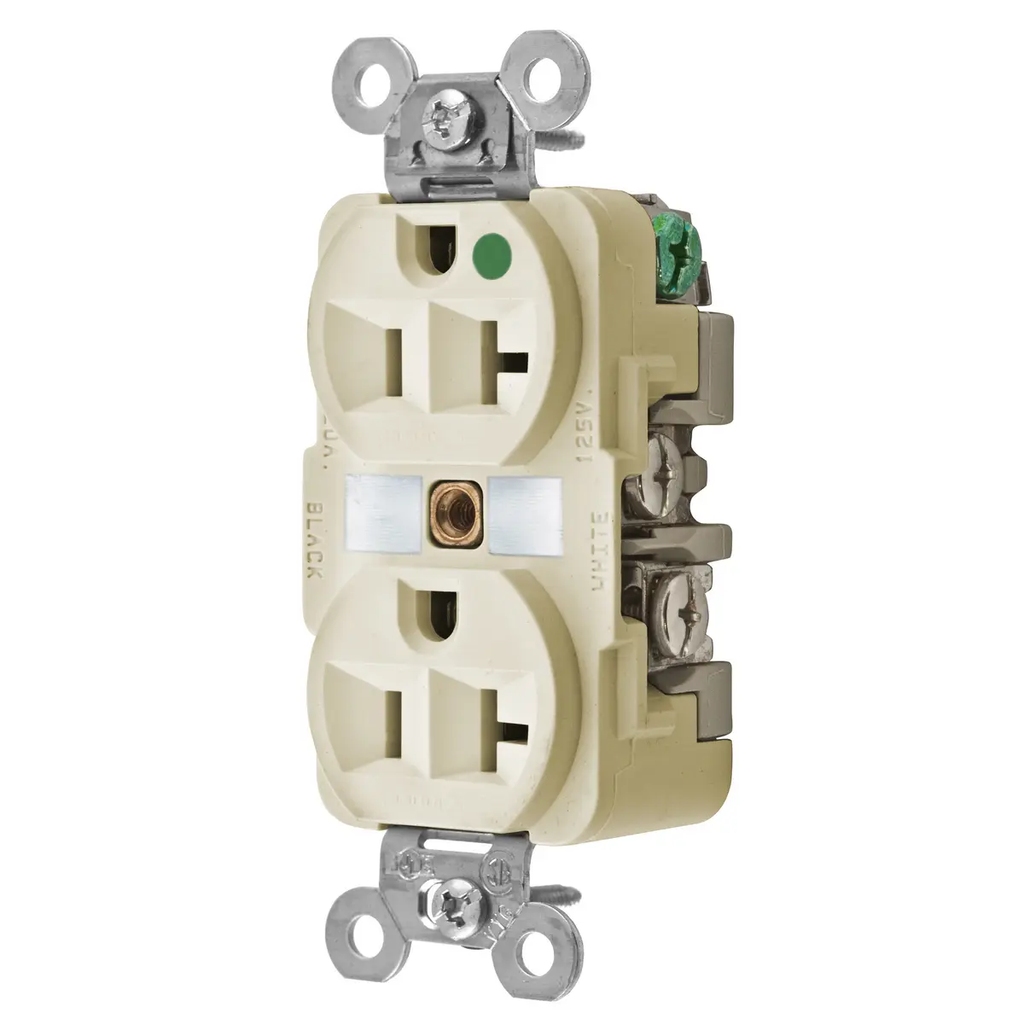

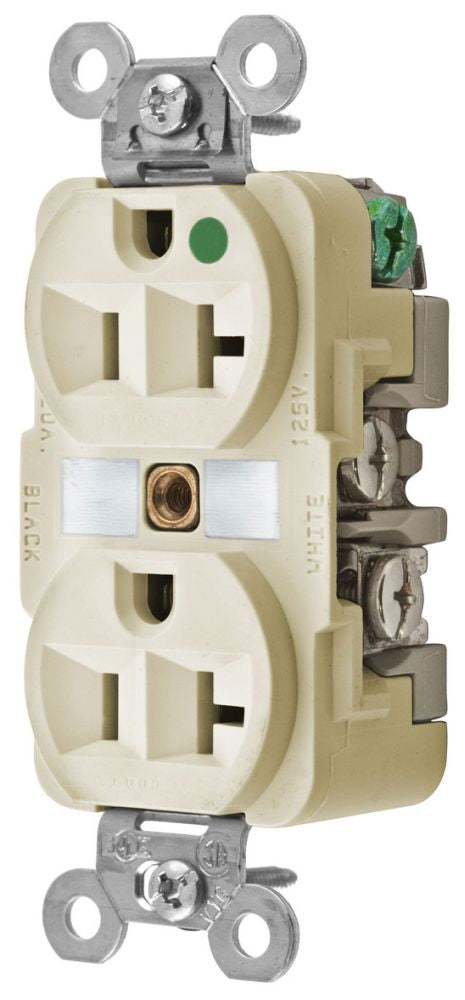

HBL8300I is a hospital grade duplex receptacle designed for reliable power distribution in demanding environments. This Hubbell device features a 2-pole, 3-wire grounding configuration rated for 20A and 125V, with a NEMA 5-20R configuration and ivory finish. It is certified for current interrupting at full rated current and features a deep body design with circuit ID face for easy identification. The receptacle is constructed with PBT face and base, nickel-plated brass bypass power contacts, and brass ground contacts for durability and performance. Hubbell's HBL8300I is built for hospital grade applications, offering redundant grounding and a unique bypass contact design. It is suitable for both back and side wiring, accommodating #14 AWG to #12 AWG copper conductors. The device meets UL 498 and CSA standards, is RoHS compliant, and withstands a dielectric voltage of 2,000V minimum. It is rated for continuous operation up to 75°C and down to -40°C without impact.

• Part Number: HBL8300I
• Manufacturer: Hubbell
• Amperage: 20A
• Voltage: 125V
• Poles: 2-Pole
• Wires: 3-Wire Grounding
• NEMA Configuration: 5-20R
• Mounting Type: Back and Side Wired Terminal Screws
• Interrupt Rating: Full Rated Current
• Series/Frame: HBL Extra Heavy Duty MAX
• Certifications: UL 498, CSA, RoHS
• Operating Temperature: -40°C to 75°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL8300I
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Locking Devices
• Family : HBL
• Voltage : 125 125

Product Data

• UPC : 783585435725
• GTIN : 00783585435725
• Dimensions : 3.28 in L x 1.65 in W x 1.19 in H 3.28 x 1.65 x 1.19 3.28 x 1.65 x 1.19 in
• Weight : 0.3
