Product Info
- Manufacturer:Hubbell
- Sub-Category:Wiring Devices
Description
HBL8215CAT

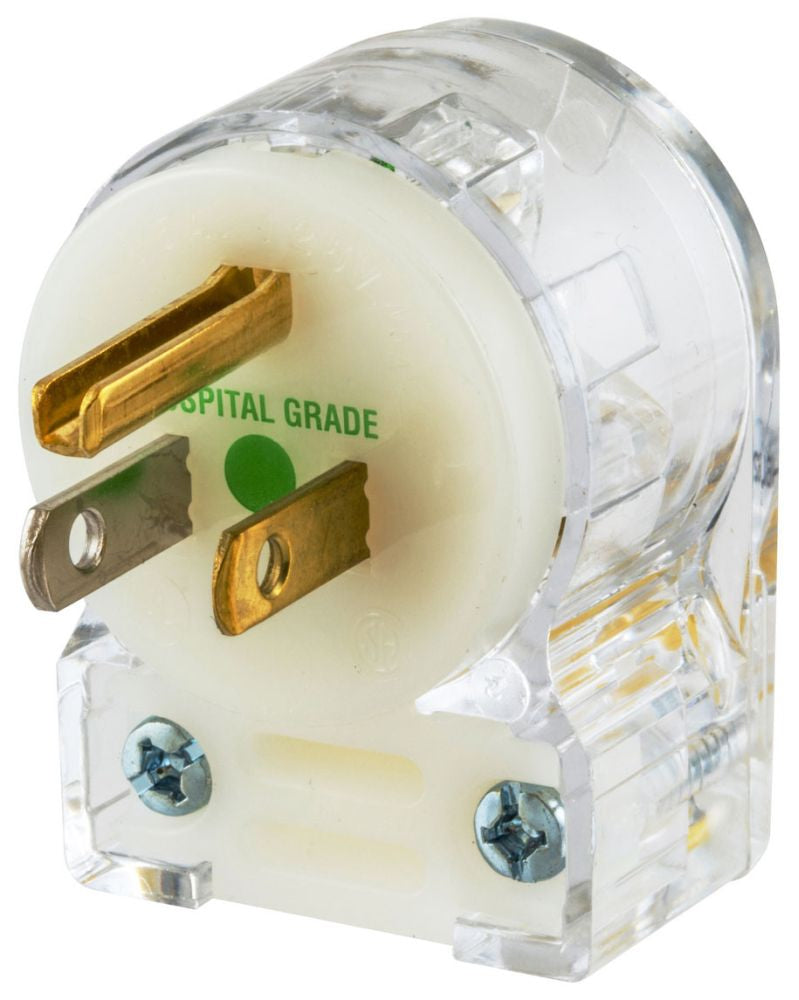

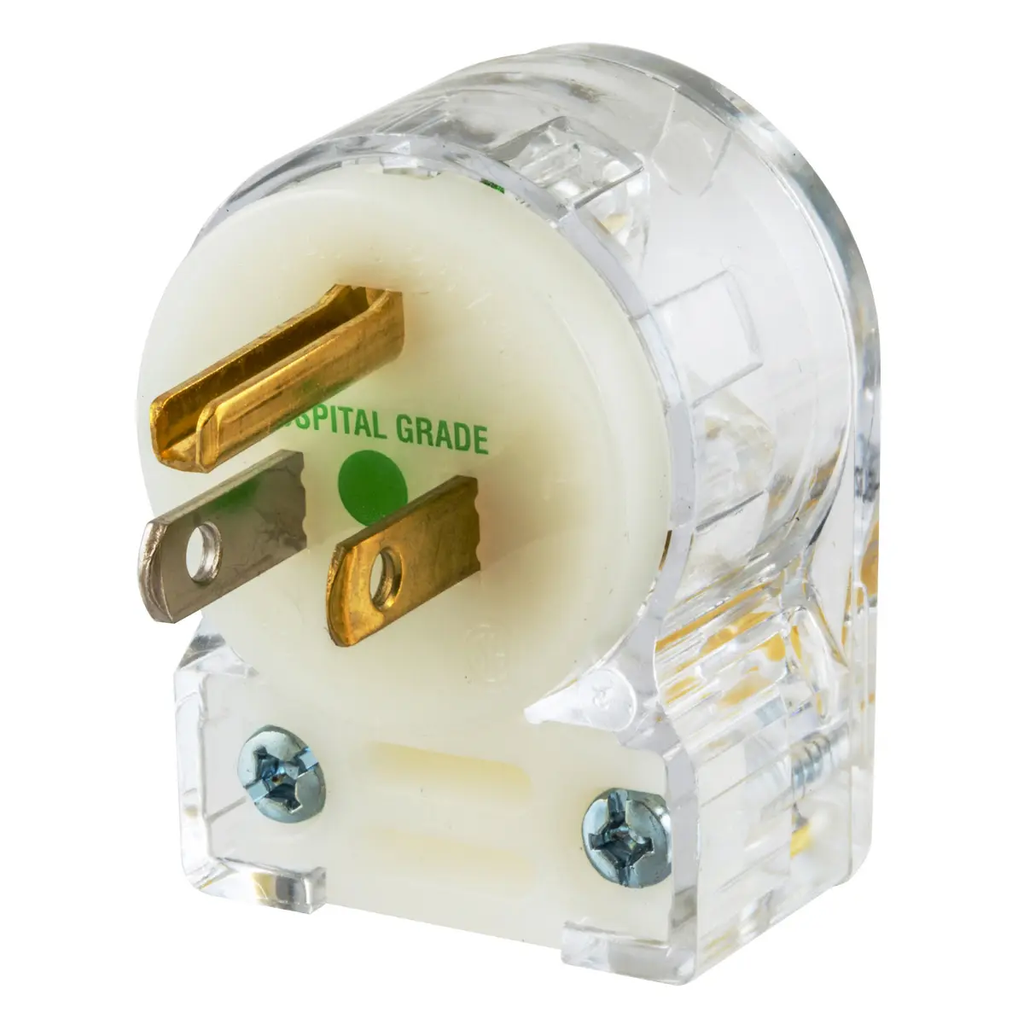

HBL8215CAT is a hospital grade straight blade plug designed for medical and critical care environments requiring reliable power connections. This 2-pole 3-wire angled plug features Insulgrip construction with a transparent polycarbonate housing, nylon blade holder, and individual wire binding terminals for secure cord attachment. The plug accommodates wire sizes from #18 AWG to #10 AWG and maintains dielectric strength of 2,000V minimum, ensuring safe operation in demanding healthcare settings. Operating temperature range is -40°C to +75°C maximum continuous.
- Amperage Rating: 15A
- Voltage Rating: 125V AC
- Configuration: NEMA 5-15P
- Poles: 2-Pole
- Wires: 3-Wire with grounding
- Style: Insulgrip Hospital Grade
- Mounting Type: 8-position angle
- Housing: Transparent polycarbonate
- Cord Range: 0.250 inch to 0.655 inch diameter
- Certifications: UL 498, CSA C22.2, FSUL approved
- Dimensions: 1.53 inch width x 2.11 inch height x 1.22 inch thickness
- Weight: 0.15 lb
Specifications
- Part Number: HBL8215CAT
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Wiring Devices
- Voltage : 125
Product Data
- UPC : 783585179254
- GTIN : 00783585179254
- Dimensions : 1.52 in W x 1.21 in D x 2.08 in H
- Weight : 5.19
