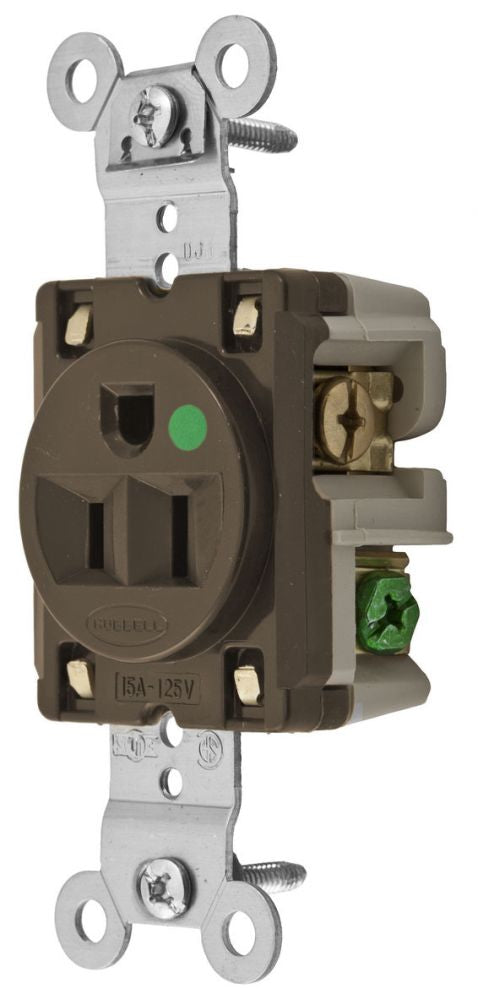

HBL8210 - Hubbell Hospital Grade Single Receptacle 15A 125V 2-Pole 3-Wire Grounding 5-15R Brown

HBL8210

HBL8210 is a Hubbell hospital grade single receptacle rated for 15 amps and 125 volts with 2 poles and 3-wire grounding.This specification grade receptacle features a 5-15R NEMA configuration, brown nylon face, and PBT base. It supports back and side wired screw terminals, is rated for 1875 watts, and is designed for indoor dry locations. The device is constructed with stainless steel mounting screws, a brass mounting strap, and nickel-plated brass power contacts and ground contact. It is UL listed, CSA certified, and compliant with NEMA WD-6 standards.

Key Specifications
• Amperage: 15 A
• Voltage: 125 V
• Poles: 2-Pole
• Wiring: 3-Wire Grounding
• Configuration: 5-15R
• Material: Nylon Face, PBT Base
• Mounting: Screw Mounting
• Interrupt Rating: Withstands 2000V Dielectric Strength
• Certifications: UL Listed, CSA Certified, NEMA WD-6 Compliant
• Operating Temperature: -40°C to 75°C
• Wire Size: #14 AWG to #10 AWG
• Weight: 0.2 lb
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HBL8210
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Wiring Devices
• Item Subcategory : Plugs Recep
• Voltage : 125



Product Data

• UPC : 783585016214
• GTIN : 783585013992
• Dimensions : 3.28 x 1.63 x 1.19 in
• Weight : 5.19
