Product Info
- Manufacturer:Hubbell
Description
HBL8200SGIA

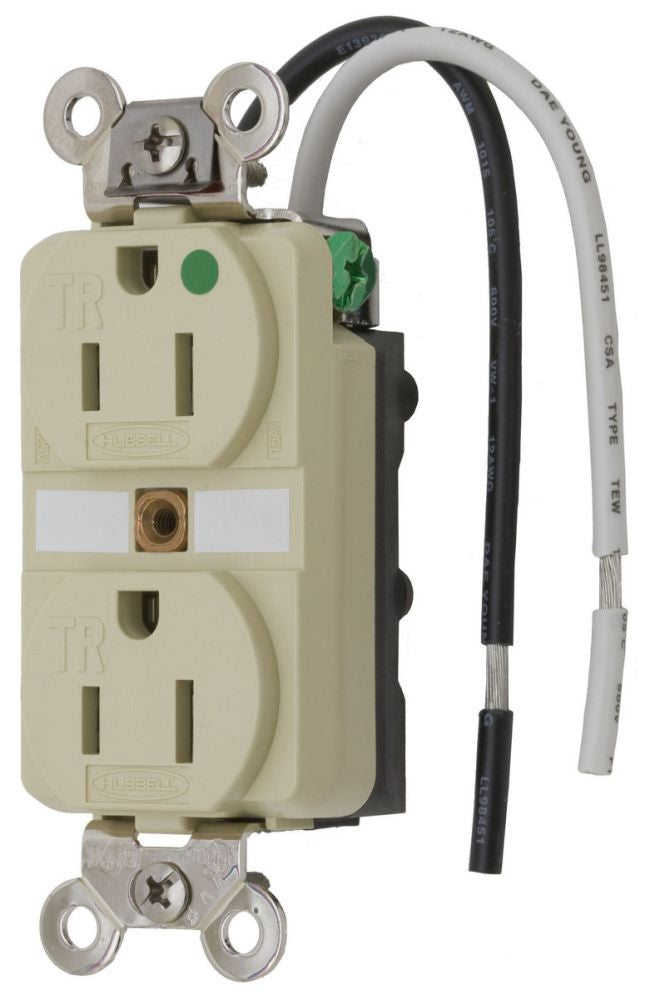

HBL8200SGIA is a hospital grade, tamper resistant duplex receptacle designed for extra heavy-duty applications. This receptacle features a 2-pole, 3-wire grounding system and is rated for 15A and 125V, providing reliable and safe power distribution in demanding environments. Constructed with a thermoplastic body and PBT face/base, the HBL8200SGIA offers durability and resistance to impact. It includes automatic self-grounding clips and nickel-plated brass contacts for enhanced conductivity and long-term performance. The receptacle is designed for screw mounting and supports wire sizes from #12 AWG to #10 AWG. It is certified for current interrupting at full rated current and meets CSA and C22.2 No. 42 standards.
- Amperage Rating: 15A
- Voltage Rating: 125V
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- Mounting Type: Screw Mounting
- Interrupt Rating: Full Rated Current
- Series/Frame: Hospital Grade
- Material: Thermoplastic, PBT Face/Base
- Contacts: Nickel Plated Brass
- Wire Size: #12 AWG to #10 AWG
- Operating Temperature: -40°C to 75°C
- Certifications: CSA, C22.2 No. 42
Specifications
- Part Number: HBL8200SGIA
- Manufacturer : Hubbell
- Brand : Hubbell
Product Data
- UPC : 783585435602
- GTIN : 783585411002
- Weight : 1
