Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL7962

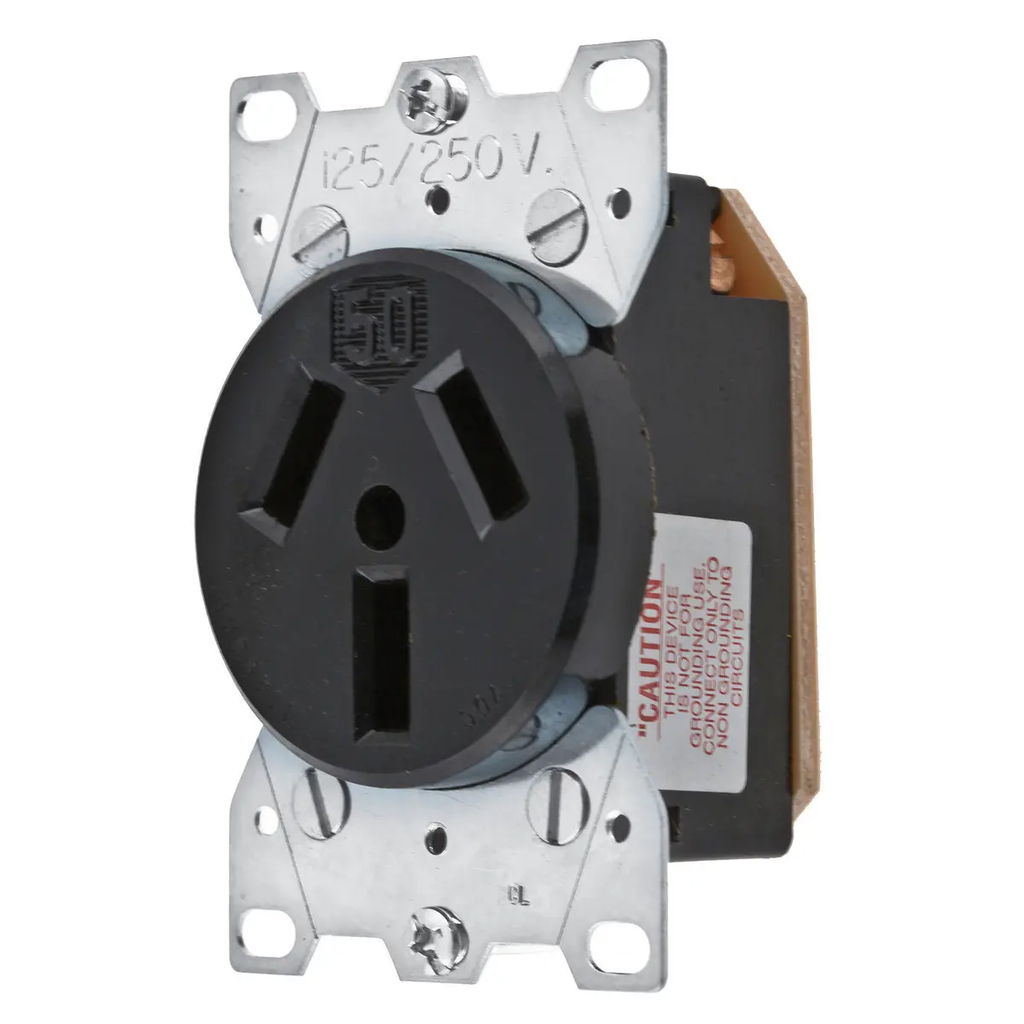

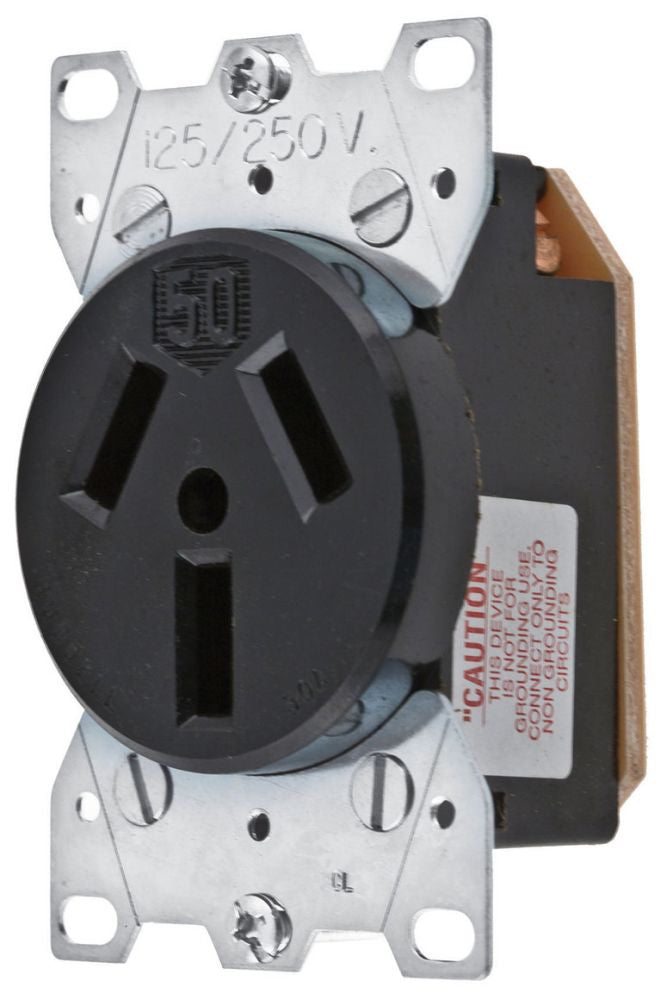

HBL7962 is an industrial-grade flush receptacle designed for heavy-duty applications requiring reliable power connections. This Hubbell receptacle features a 3-pole, 3-wire non-grounding configuration rated for 50A and 125/250V, making it ideal for single-phase power distribution in demanding environments. Constructed from durable thermoplastic, it offers resistance to impact and harsh operating conditions. The receptacle supports both back and side wiring with a wire size range of #12 AWG to #4 AWG, and includes molded-in ratings and certifications for easy identification. Its screw mounting design ensures secure installation, while the sequenced contacts provide added protection during connection and disconnection.
- Part Number: HBL7962
- Manufacturer: Hubbell
- Amperage Rating: 50 A
- Voltage Rating: 125/250 V
- Number of Poles: 3-Pole
- Number of Wires: 3-Wire
- Mounting Type: Screw Mounting
- Wire Size: #12 AWG to #4 AWG
- Dielectric Strength: 2,000V minimum
- Operating Temperature: -40°C to 75°C
- Material: Thermoplastic
- NEMA Rating: 10-50R
- Color: Black
- RoHS Compliant: Yes
Specifications
- Part Number: HBL7962
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 125/250 125/250
Product Data
- UPC : 783585015125
- GTIN : 00783585015125
- Dimensions : 2-1/4 in W
- Weight : 1
