HBL7810D - Hubbell 3-Pole 30A 600V AC Manual Motor Disconnect Switch Back & Side Wired

HBL7810D

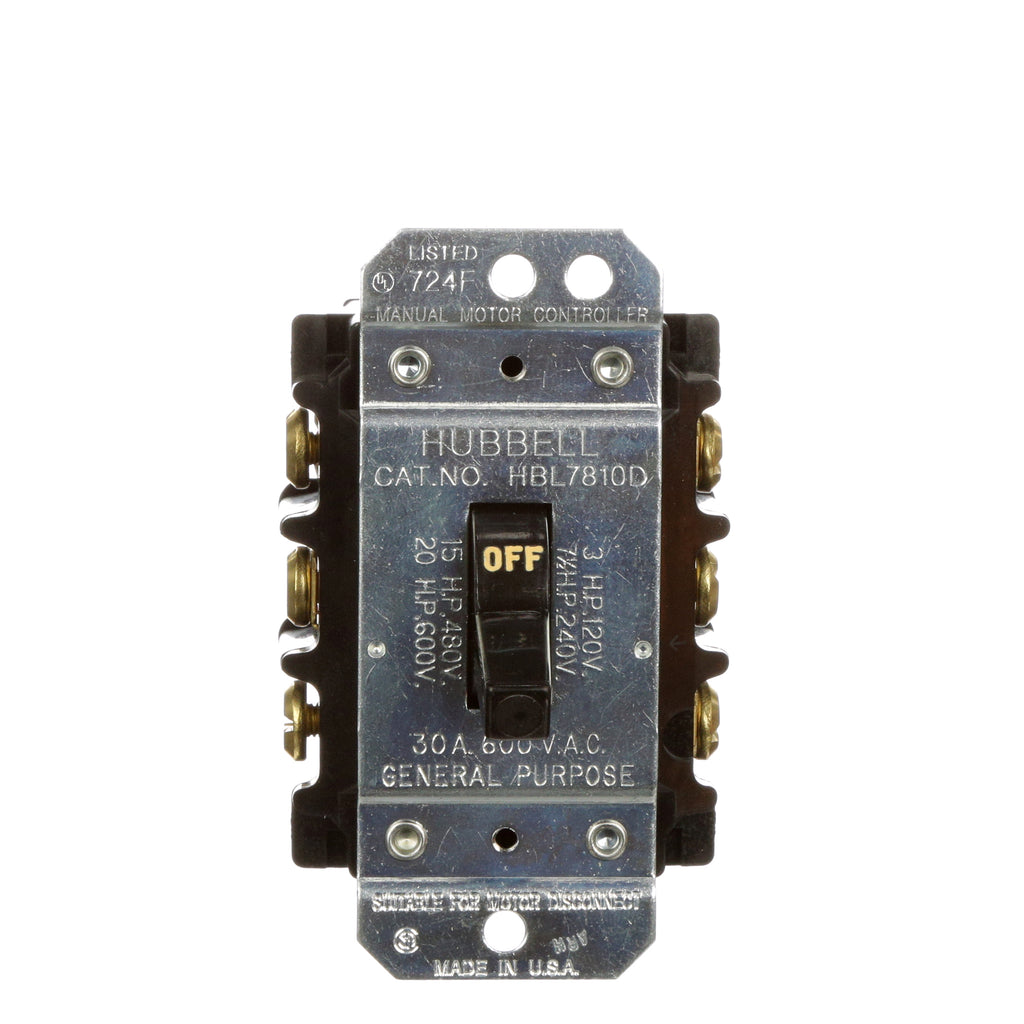

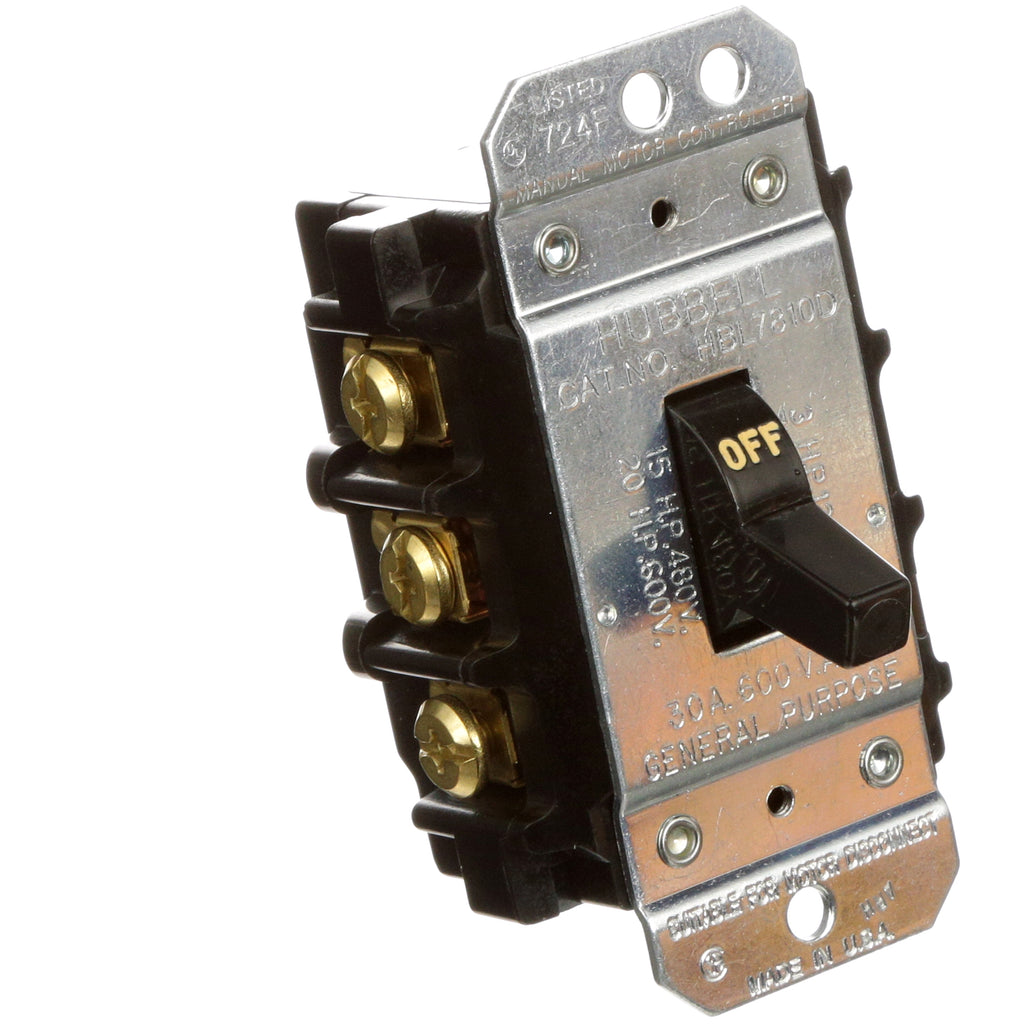

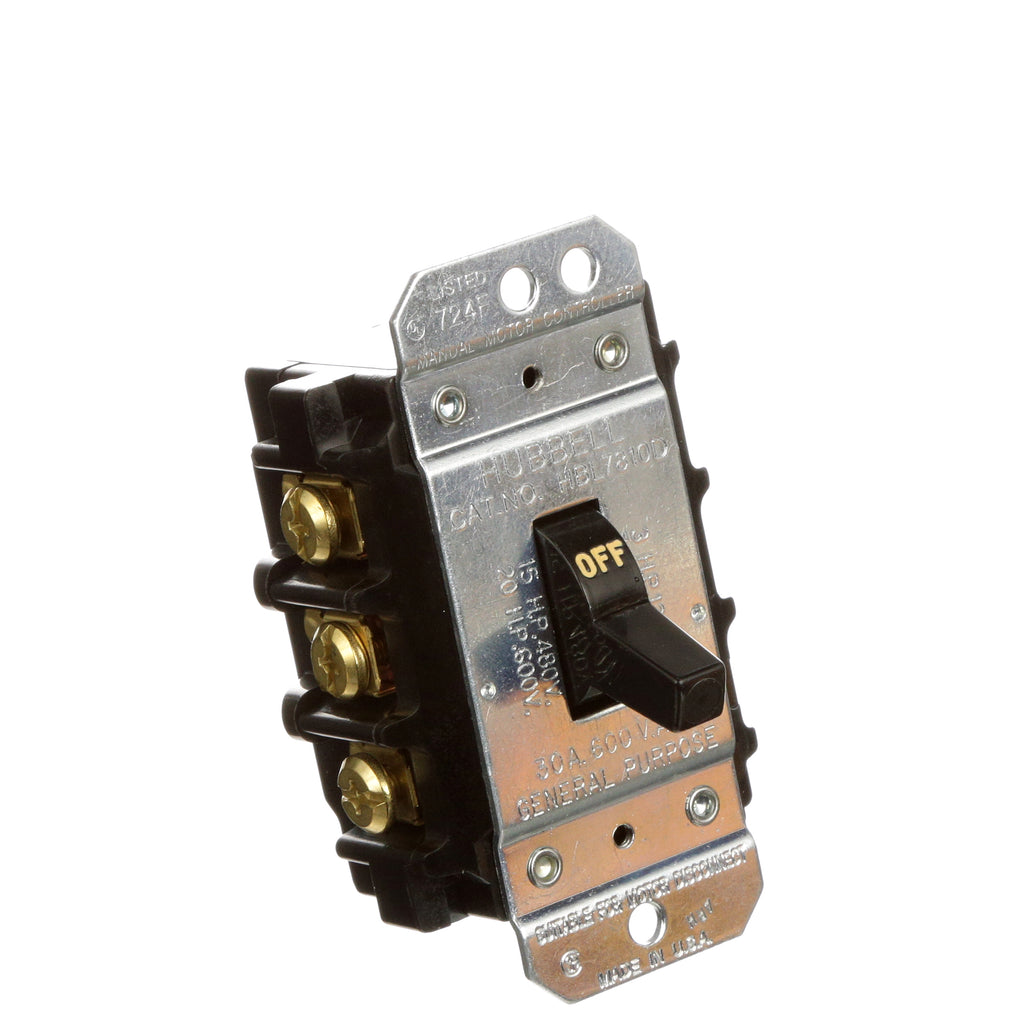

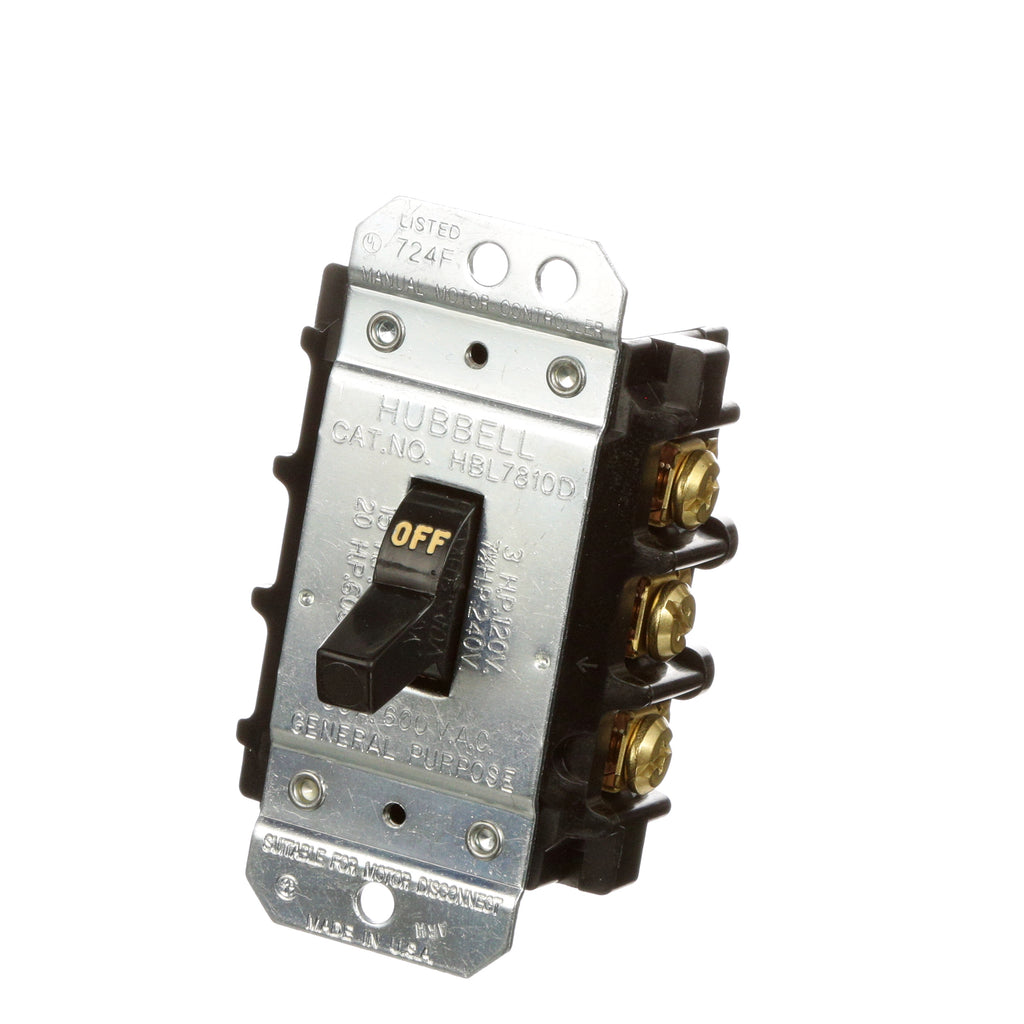

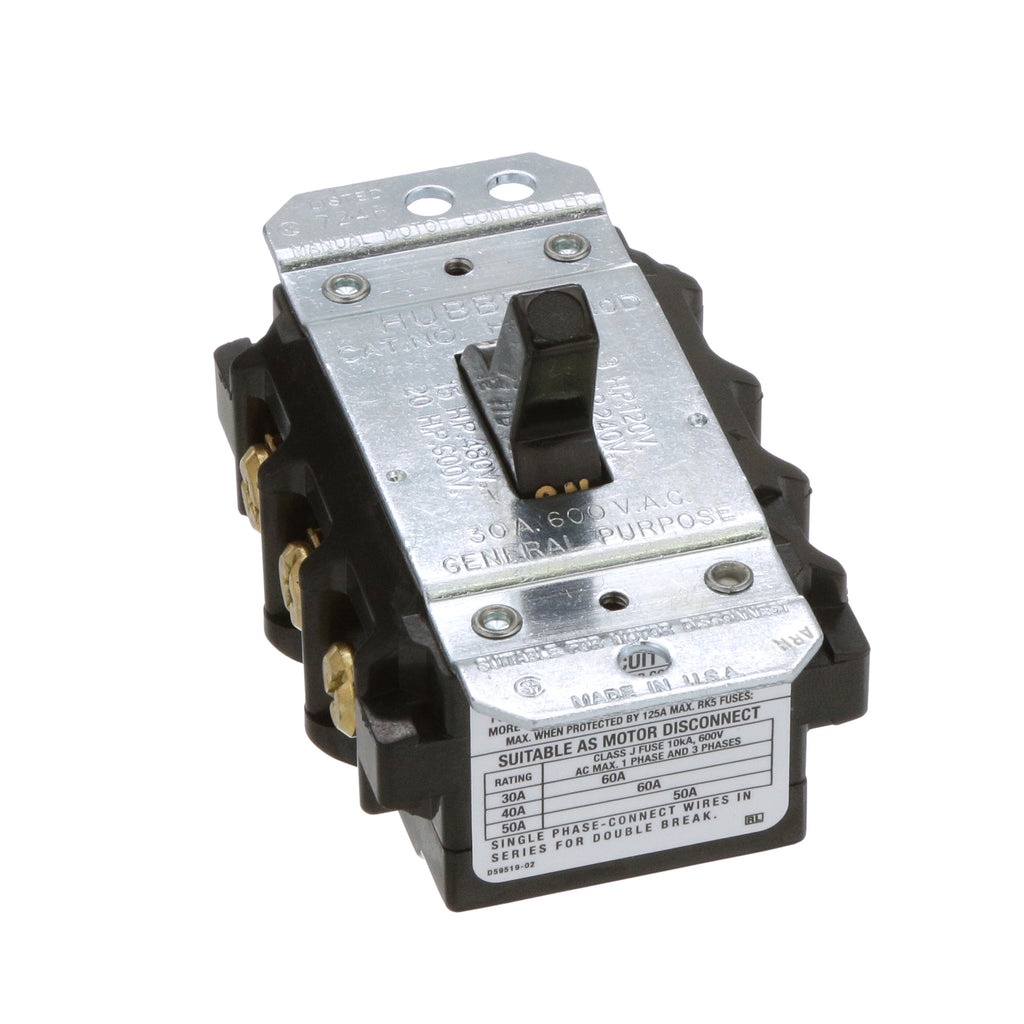

HBL7810D is a 3-pole, 30 amp, 600 volt AC manual motor disconnect switch by Hubbell designed for industrial applications.This Circuit-Lock® manual toggle controller features a thermoset body for high resistance to electrical arc tracking, strong ON/OFF action with quick-make slow-break operation, and four large silver alloy contacts per pole for excellent conductivity and longevity. It is back and side wired with screw mounting hardware, rated for 10,000 mechanical cycles, and operates reliably in temperatures from -40°C to 75°C. The switch is UL and CSA certified and suitable for indoor dry environments.

Key Specifications
• Amperage: 30 A
• Voltage Rating: 600 VAC
• Poles: 3 Pole
• Mounting Type: Screw Mounting
• Interrupt Rating: 20 HP max
• Series: Circuit-Lock® Standard Toggle
• Trip Unit: Manual Toggle

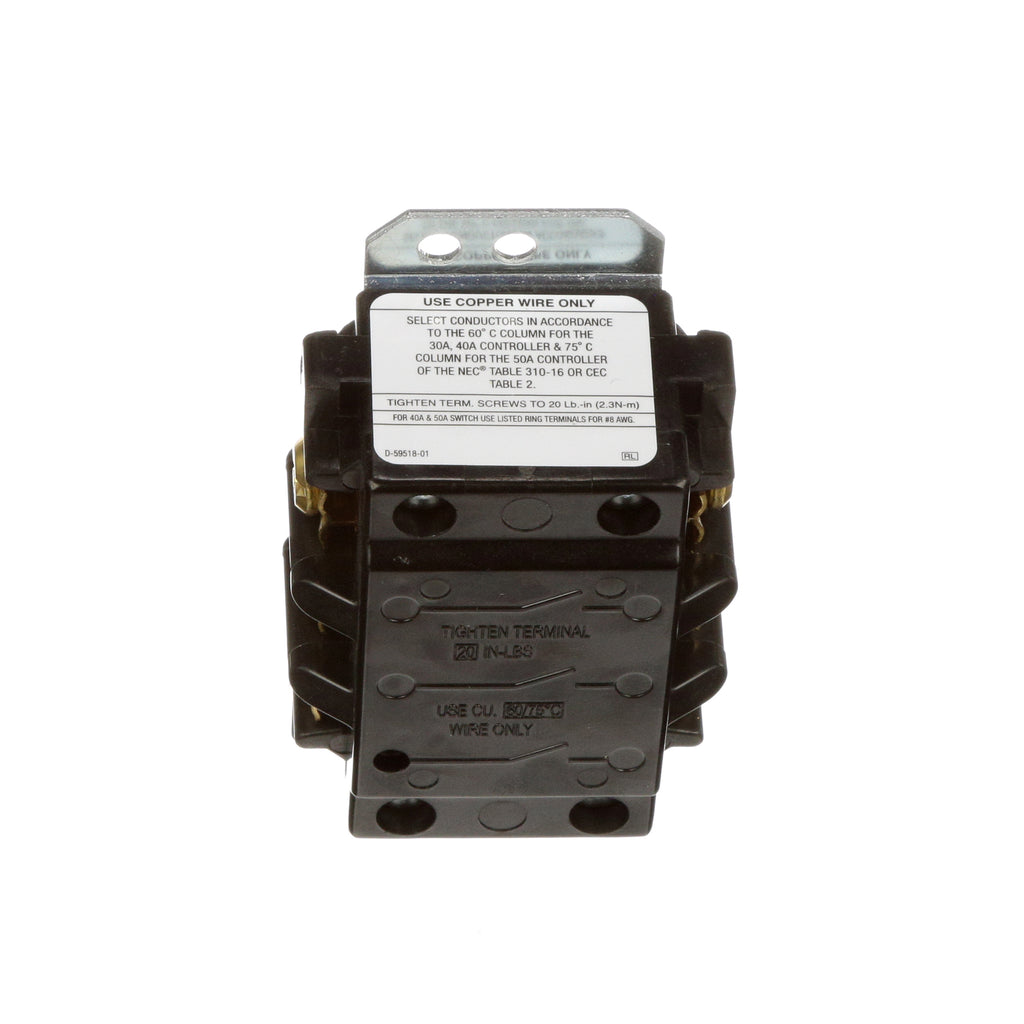

• Wiring: Back and Side Wired
• Material: Thermoset Body with Stainless Steel Hardware
• Operating Temperature: -40°C to 75°C
• Certifications: UL Listed, CSA Certified, RoHS Compliant
• Mechanical Life: 10,000 cycles minimum
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HBL7810D
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Switch
• Item Subcategory : Disconnect
• Voltage : 600
• Amperage : 28
• Phase : 3
• Poles : 3
• AIC rating : 42kA@600V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Wire : 4
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24
• Protection : Solid State
• Compatible Frames : FAP



Product Data

• UPC : 783585202792
• GTIN : 00783585202792
• Weight : 45
• Temp Rating : -13–158 °F (-25–70 °C)
