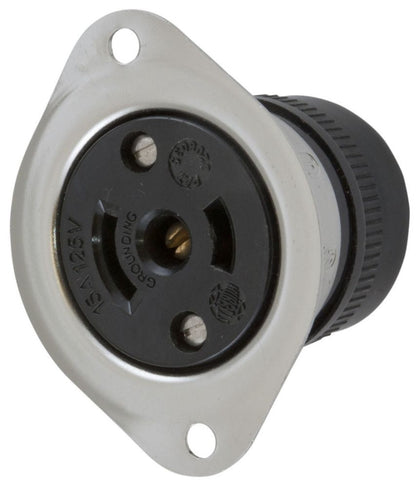

HBL7598 - Hubbell 15A 125V 2-Pole 3-Wire NEMA ML-2R Midget Twist-Lock Flanged Receptacle Stainless Steel

HBL7598

HBL7598 is a 15 Amp, 125 Volt, 2-pole 3-wire grounding midget twist-lock flanged receptacle by Hubbell designed for heavy-duty industrial applications.This flanged receptacle features a stainless steel flange with screw terminal mounting, rated for 15 Amps and 125 Volts AC. It meets NEMA ML-2R standards and withstands a dielectric strength of 2000V minimum. The device accommodates #18 to #14 AWG solid or stranded copper wire and is suitable for indoor dry environments unless otherwise protected. Operating temperature ranges from -40°C to 75°C continuous without impact.

Key Specifications
• Amperage Rating: 15 A
• Voltage Rating: 125 V AC
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• Mounting Type: Screw Terminal Flanged
• Material: Stainless Steel Flange
• NEMA Rating: ML-2R
• Dielectric Strength: 2000 V minimum
• Wire Size: #18 AWG to #14 AWG
• Operating Temperature: -40°C to 75°C
• Application: Heavy Duty Industrial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL7598
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Wiring Devices
• Item Subcategory : Plugs Recep
• Voltage : 125

Product Data

• UPC : 783585237831
• GTIN : 783585237831
• Country of Origin : United States
• Dimensions : 2.06 x 1.62 x 1.25 in
• Weight : 5.19
• Certification : Certified for current interrupting at full rated current; UL/CSA
