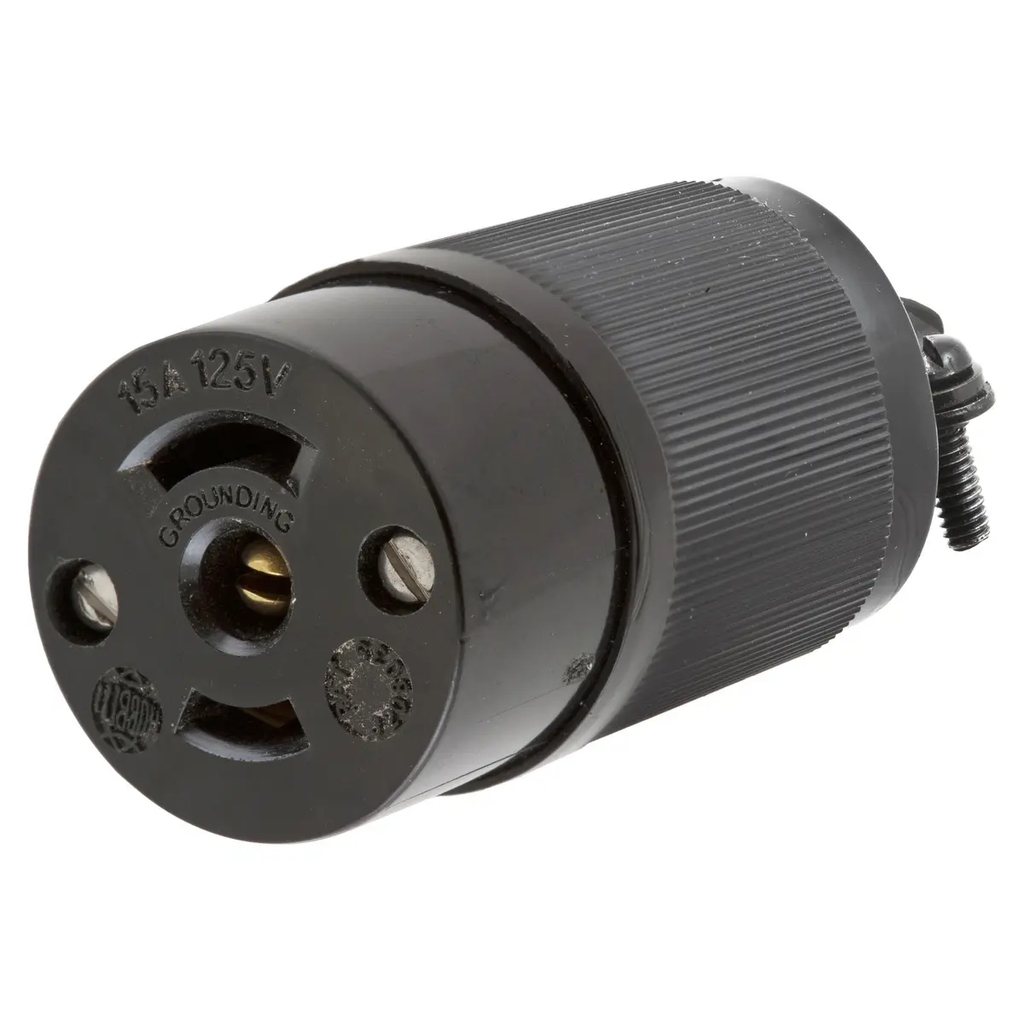

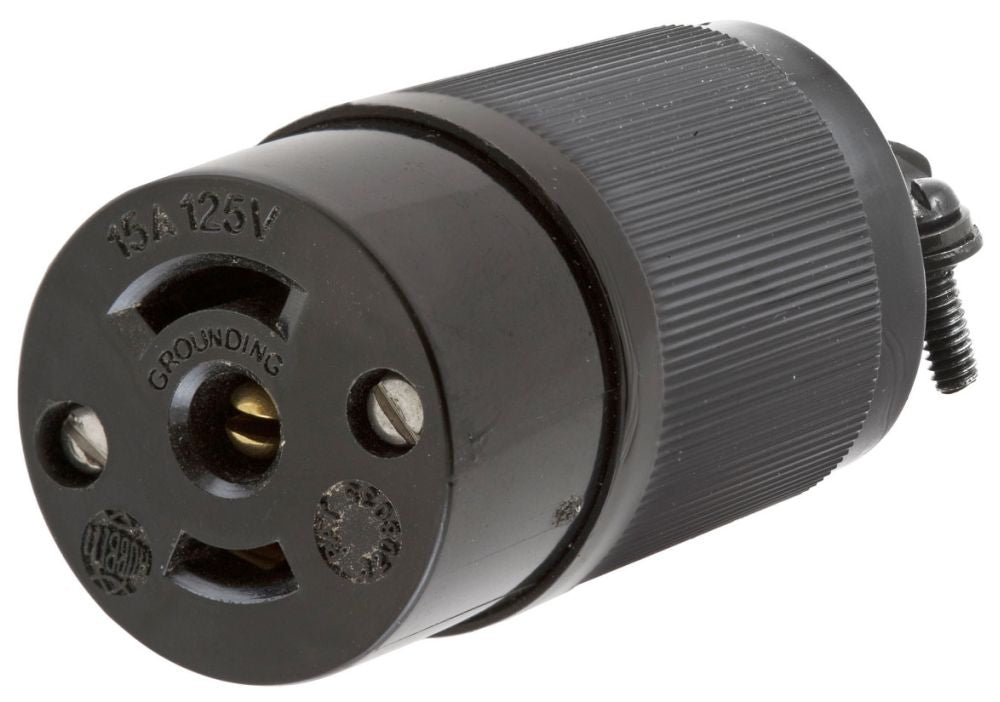

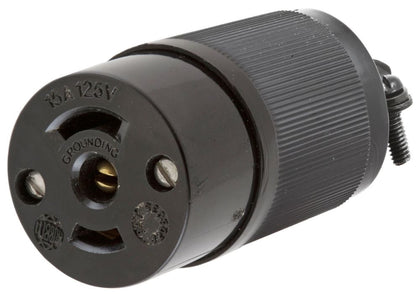

HBL7593 - Hubbell 15A 125V 2-Pole 3-Wire NEMA ML-2R Midget Twist-Lock Connector Body

Save $9.48
SKU: HBL7593-New
Condition: New
Price:
$31.12 $40.60
Stock:
45 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

HBL7593 Hubbell Twist-Lock Industrial Connector 15A 125V 2-Pole 3-Wire NEMA ML-2R - Essential Electric Supply
HBL7593 - Hubbell 15A 125V 2-Pole 3-Wire NEMA ML-2R Midget Twist-Lock Connector Body - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HBL7593 Hubbell Twist-Lock Industrial Connector 15A 125V 2-Pole 3-Wire NEMA ML-2R - Essential Electric Supply
HBL7593 - Hubbell 15A 125V 2-Pole 3-Wire NEMA ML-2R Midget Twist-Lock Connector Body - Essential Electric Supply

Description

HBL7593


HBL7593 is a 15A 125V 2-Pole 3-Wire NEMA ML-2R Midget Twist-Lock Connector Body from Hubbell, designed for secure and reliable power connections in industrial and commercial applications. This cord-mounted connector features a durable nylon housing, brass blades, and a phenolic contact holder for long-lasting performance in demanding environments. The connector is rated for continuous operation up to 75°C and is suitable for use with #14 AWG to #12 AWG conductors. It is certified to UL 498 and CSA C22.2 No.42 standards, ensuring compliance with industry safety requirements. The connector provides a secure locking mechanism and is ideal for applications requiring a compact, robust power connection solution. This connector is designed for cord mounting and features pressure terminal screws for easy installation. The connector is insulated, with a zinc-plated steel terminal clamp and brass terminal screws. The connector is rated for a maximum continuous temperature of 75°C and a minimum continuous temperature of -40°C without impact, and -25°C with impact. The connector is RoHS compliant and is suitable for indoor dry environments unless protected by additional means.
  • Part Number: HBL7593
  • Manufacturer: Hubbell
  • Amperage Rating: 15 A
  • Voltage Rating: 125 V
  • Poles: 2-Pole
  • Wires: 3-Wire Grounding
  • NEMA Rating: ML-2R
  • Mounting Type: Cord Mounted
  • Material: Nylon Housing, Brass Blades, Phenolic Contact Holder
  • Terminal Type: Pressure Terminal Screws
  • Temperature Rating: 75°C Max Continuous, -40°C Min Continuous
  • Certifications: UL 498, CSA C22.2 No.42, RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HBL7593
  • Manufacturer : Hubbell
  • Brand : Hubbell
  • Category : Conduit & Fittings
  • Item Subcategory : Locking Devices
  • Family : HBL
  • Voltage : 125 125

Product Data

  • UPC : 783585237749
  • GTIN : 00783585237749
  • Dimensions : 1.17 x 1.17 x 2.42 1.17 x 1.17 x 2.42 in 2.02 in L x 1.17 in W
  • Weight : 5.19
