HBL7556 - Hubbell 10A 250V/15A 125V 3-Pole 3-Wire Non-NEMA Twist-Lock Flanged Inlet, Stainless Steel, Screw Terminal, 2000V Dielectric

HBL7556

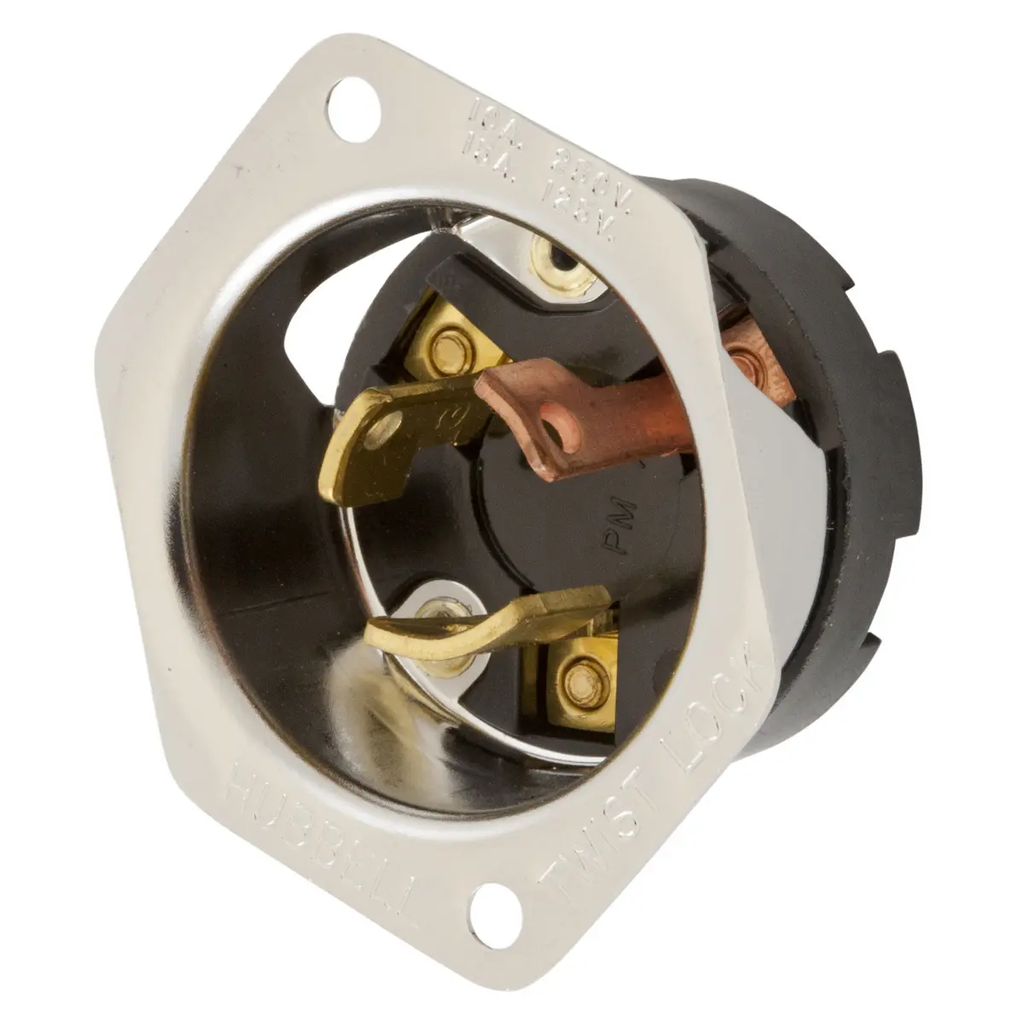

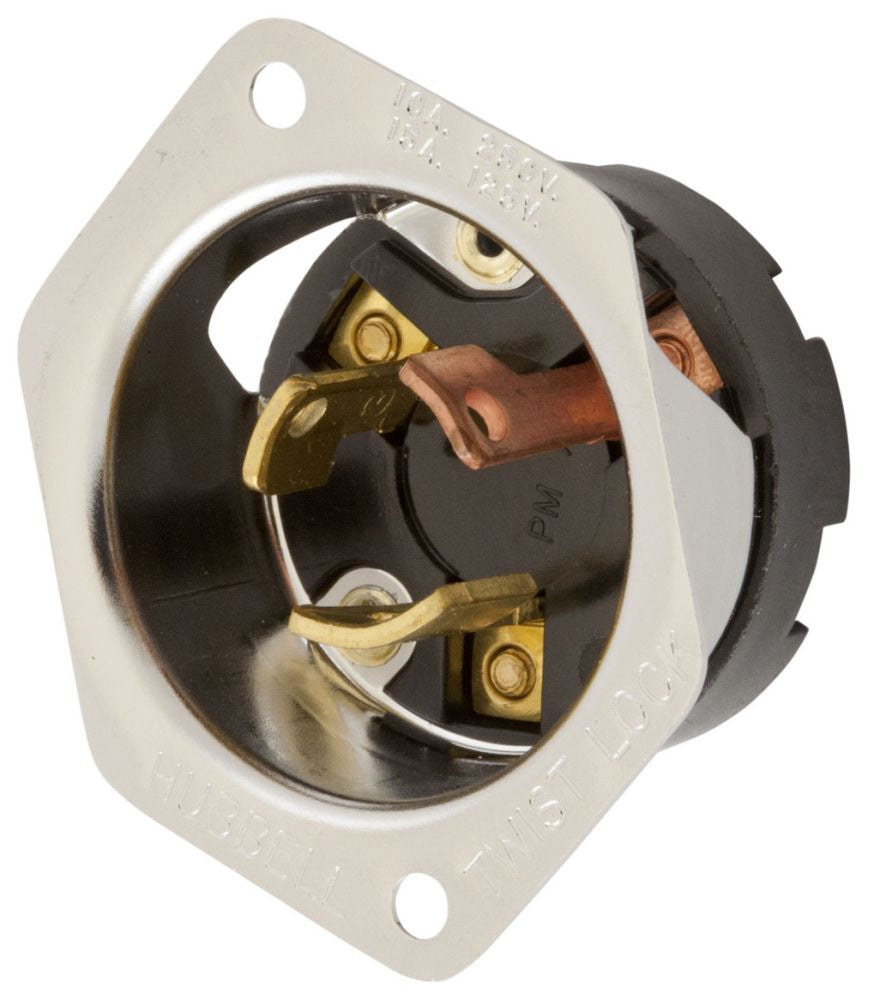

HBL7556 is a Hubbell industrial-grade, non-NEMA, twist-lock flanged inlet designed for reliable power connections in demanding environments.

This stainless steel inlet features a 3-pole, 3-wire configuration with screw terminals, supporting wire sizes from #16 AWG to #12 AWG. It is rated for 10A at 250V or 15A at 125V, with a maximum continuous operating temperature of 75°C and a minimum of -40°C. The unit is certified for current interrupting at full rated current and withstands a minimum dielectric voltage of 2,000V. Its compact, rugged design is ideal for industrial applications where durability and safety are critical.

Key Specifications
• Part Number: HBL7556
• Manufacturer: Hubbell
• Amperage: 10A 250V / 15A 125V
• Voltage: 250V / 125V
• Poles: 3
• Wires: 3
• Mounting Type: Screw terminal, flanged
• Interrupt Rating: Certified for full rated current interrupting
• Series/Frame: Not specified
• Trip Unit: Not applicable
• Certifications: Dielectric withstand 2,000V minimum
• Material: Stainless steel flange, brass blades and terminal screws
• Operating Temperature: -40°C to 75°C
• Dimensions: 2.31" x 2.31" x 1.13"
• Weight: 0.1 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL7556
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Locking Devices
• Voltage : 250 AC,125

Product Data

• UPC : 783585237640
• GTIN : 00783585237640
• Country of Origin : United States
• Dimensions : 2.31 in x 2.31 in x 1.13 in
• Weight : 0.11
• Certification : Certified for current interrupting at full rated current
