Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL7515C

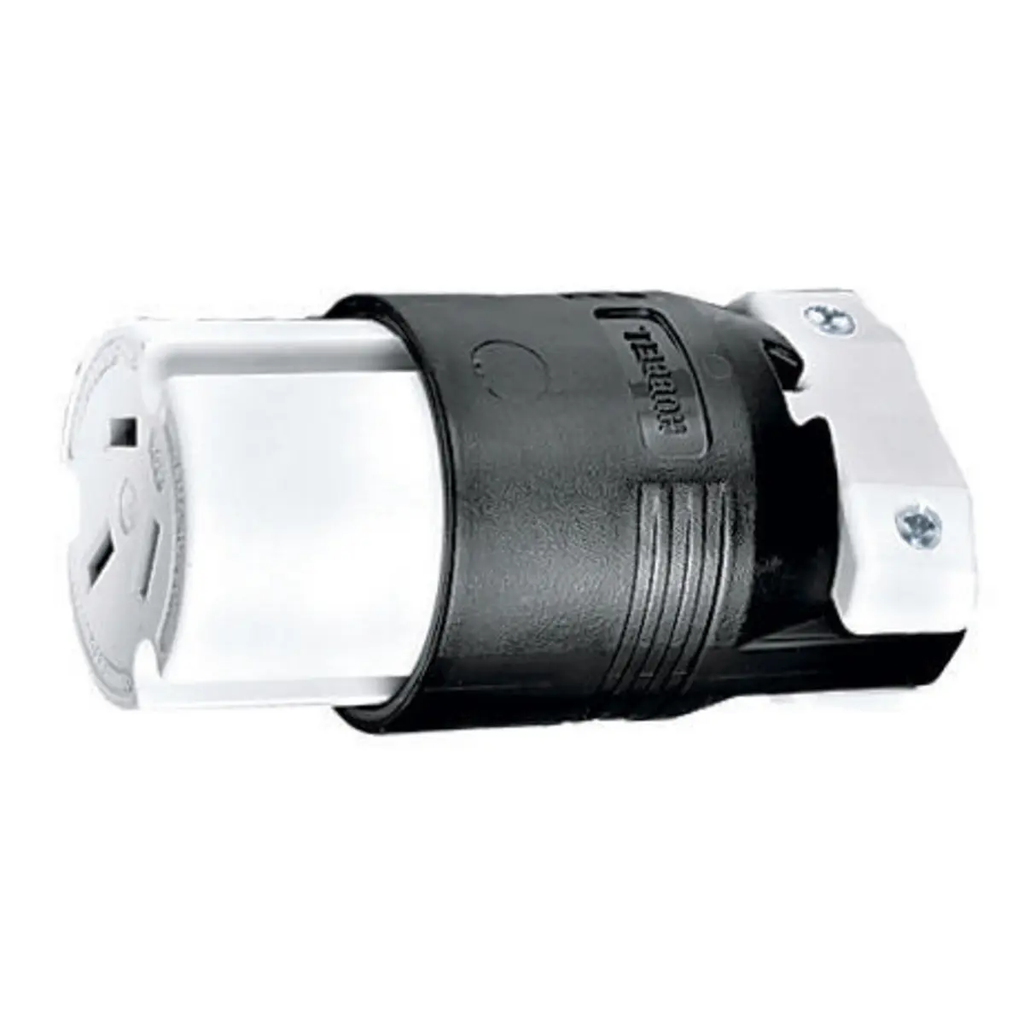

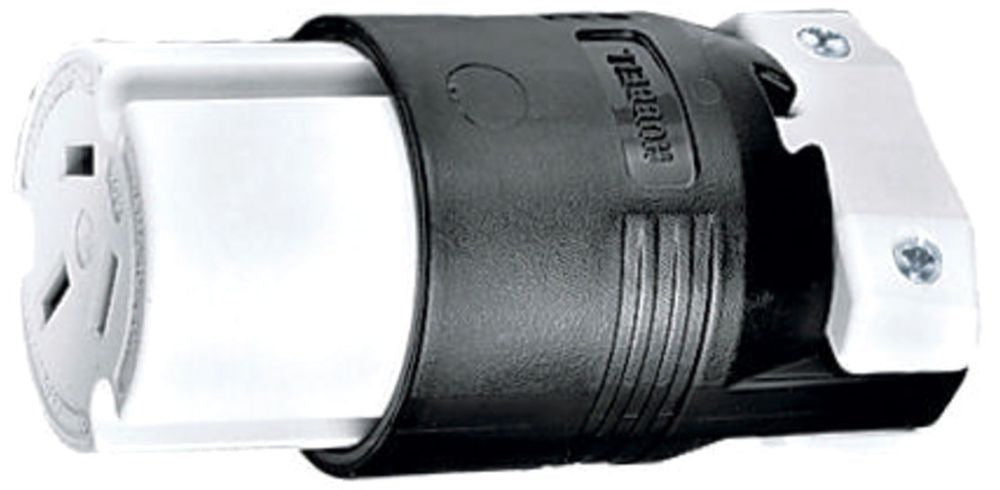

HBL7515C is a heavy-duty, industrial/commercial grade straight blade female connector rated for 50 amps and 125/250 volts with a 3-pole, 3-wire non-grounding design.This connector features a black and white nylon composite housing with screw terminal connectivity, designed for cord mounting. It supports wire sizes from #12 AWG to #4 AWG and withstands temperatures from -40 to 75 degrees Celsius. The device meets UL 498 and CSA C22.2 certifications and has a NEMA 10-50R configuration with an IP20 enclosure rating.
- Key Specifications
- Amperage Rating: 50 A
- Voltage Rating: 125/250 V
- Number of Poles: 3
- Number of Wires: 3 (Non-Grounding)
- Configuration: NEMA 10-50R
- Material: Nylon Composite
- Mounting Type: Cord Mounted
- Temperature Rating: -40 to 75 °C
- Connectivity: Screw Terminals
- Certifications: UL 498, CSA C22.2
- Dielectric Strength: 2000V minimum
- Cord Range: 0.625" to 1.218"
Specifications
- Part Number: HBL7515C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 125/250 125/250
Product Data
- UPC : 783585015118
- GTIN : 00783585015118
- Dimensions : 2.88 in Dia x 5.75 in L 5.75 x 2.88 x 2.88 in
- Weight : 0.5
