Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL7484

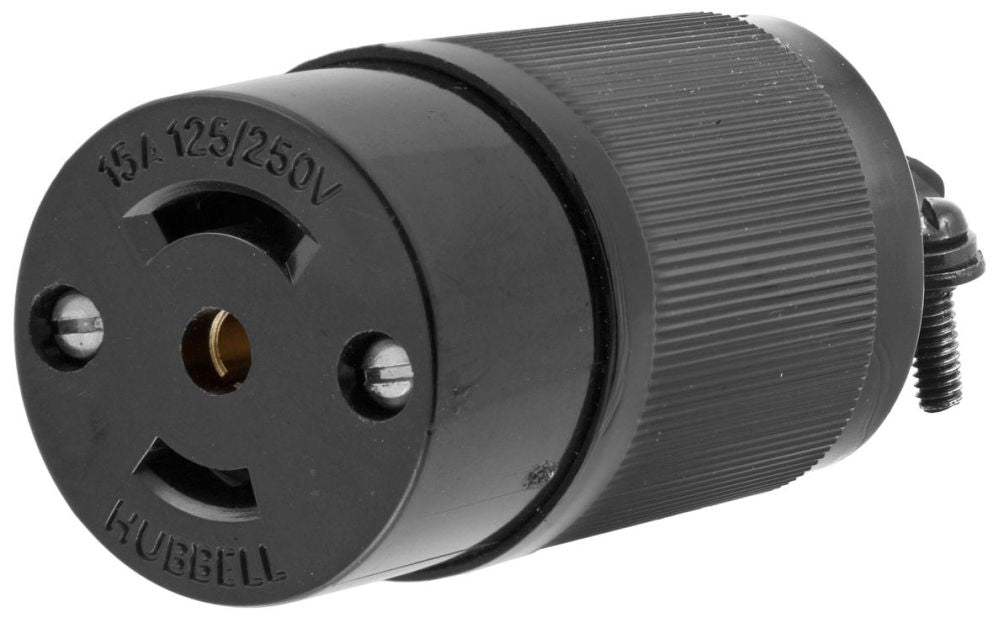

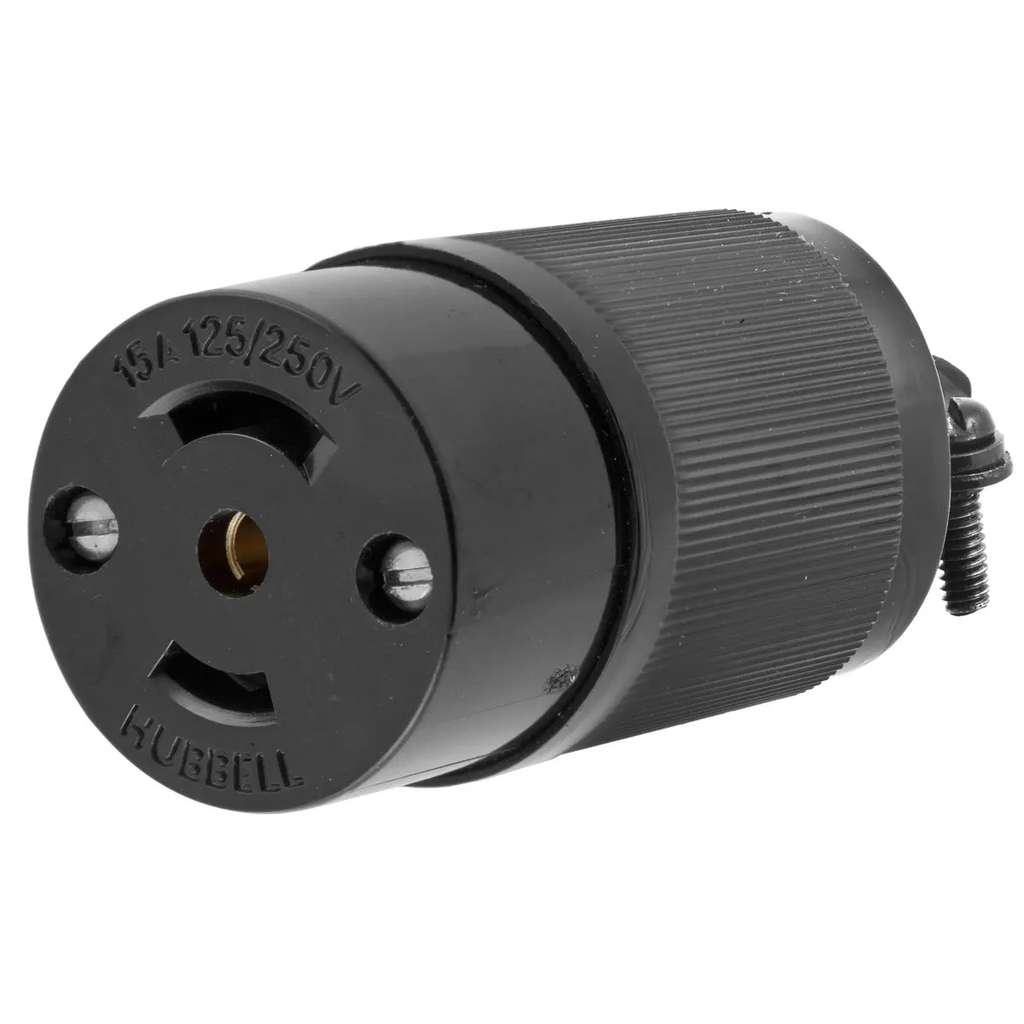

HBL7484 is a Hubbell heavy duty isolated non-grounding midget locking standard cord mount female connector rated for 15 amps and 125/250 volts AC.
This industrial-grade connector features a 3-pole, 3-wire design with a black nylon insulated body and pressure screw terminals. It supports cord diameters from 0.281 to 0.421 inches and wire sizes from #18 AWG to #14 AWG. The connector is NEMA ML-3R rated, withstands 2,000V dielectric voltage, and operates in temperatures from -40°C to 75°C without impact. It is UL 498 and CSA C22.2 certified for current interrupting at full rated current, suitable for indoor dry environments unless otherwise protected.
- Key Specifications
- Amperage: 15 A
- Voltage: 125/250 V AC
- Poles: 3
- Wires: 3
- Mounting Type: Cord Mount
- Material: Nylon Insulated Body
- Terminal Type: Pressure Screw Terminal
- NEMA Rating: ML-3R
- Dielectric Strength: 2,000 V minimum
- Operating Temperature: -40°C to 75°C (without impact)
- Cord Range: 0.281" to 0.421" diameter
- Certifications: UL 498, CSA C22.2
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HBL7484
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Family : HBL
- Voltage : 125/250 125/250
Product Data
- UPC : 783585237381
- GTIN : 00783585237381
- Dimensions : 1.17 x 1.17 x 2.42 in 2.02 in L x 1.13 in W x 1.17 in H
- Weight : 0.08
