Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description

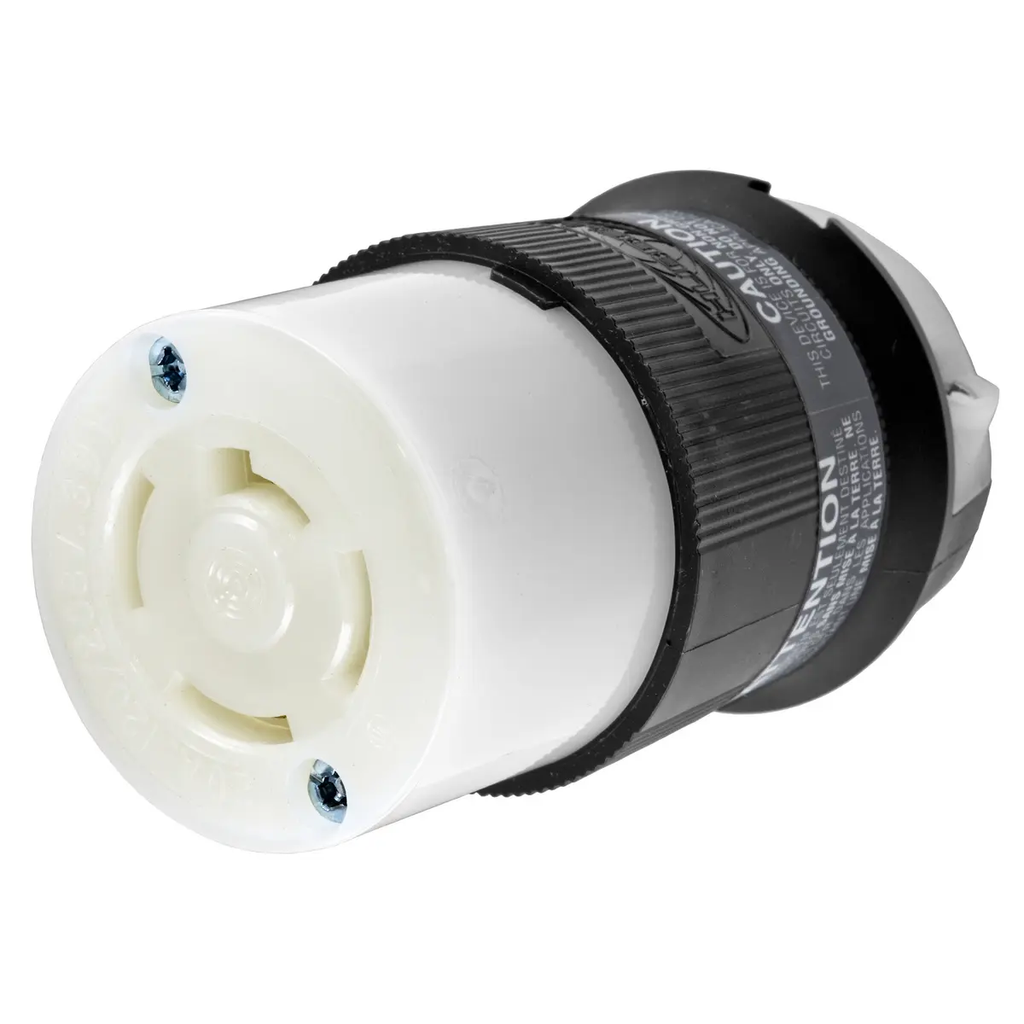

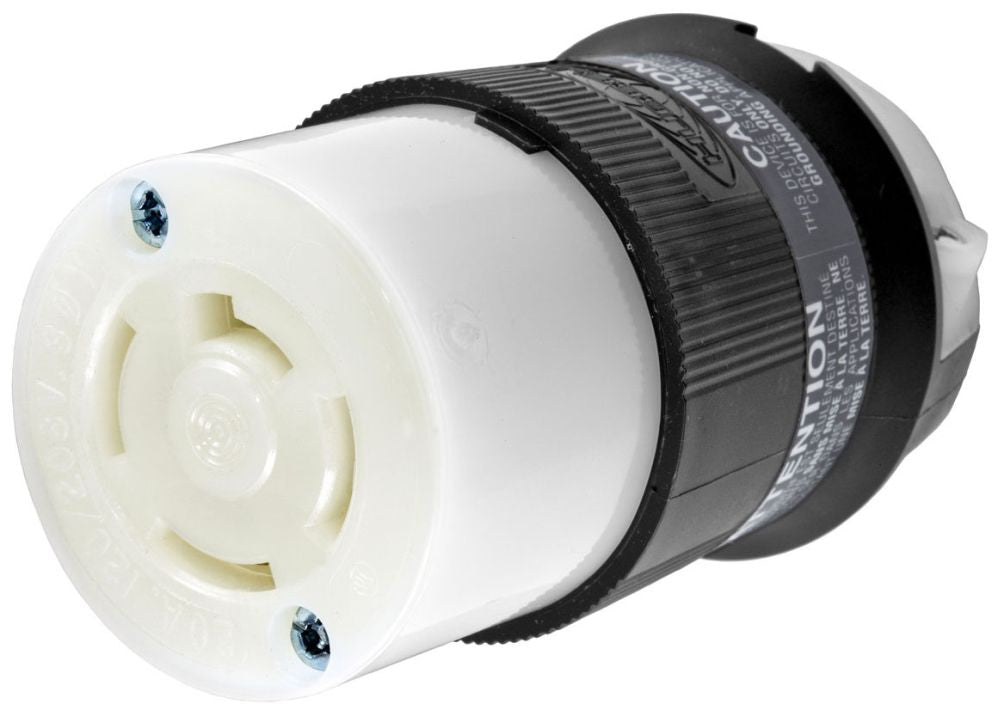

HBL7413C
HBL7413C is a Hubbell 20 Amp, 120/208 Volt, 4 Pole 4 Wire Twist-Lock connector body designed for heavy-duty industrial applications.This non-grounding, non-NEMA locking connector features a black and white nylon construction with impact and chemical resistance. It supports 3-phase 120/208 VAC star wiring, accommodates 14-12 AWG conductors, and includes a straight gland nut for secure cord mounting. Rated for continuous operation from -40 to 75 degrees Celsius, it meets UL 498 and CSA C22.2 standards.
- Key Specifications
- Amperage: 20 Amps
- Voltage: 120/208 VAC, 3-Phase
- Poles/Wires: 4 Pole, 4 Wire
- Mounting Type: Cord Mount
- Connector Type: Twist-Lock, Non-NEMA
- Material: Nylon, Black/White
- Temperature Rating: -40 to 75 °C
- Certifications: UL 498, CSA C22.2
- Cord Size Range: 0.35 to 1.15 inch diameter
- Resistance: Impact and Chemical Resistant
- IP Rating: IP20
Specifications
- Part Number: HBL7413C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 120/208Y
Product Data
- UPC : 783585037585
- GTIN : 00783585037585
- Dimensions : 2.33 x 2.33 x 3.86 in 3.84 in L x 2.22 in W
- Weight : 0.5
