Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL7411GCB

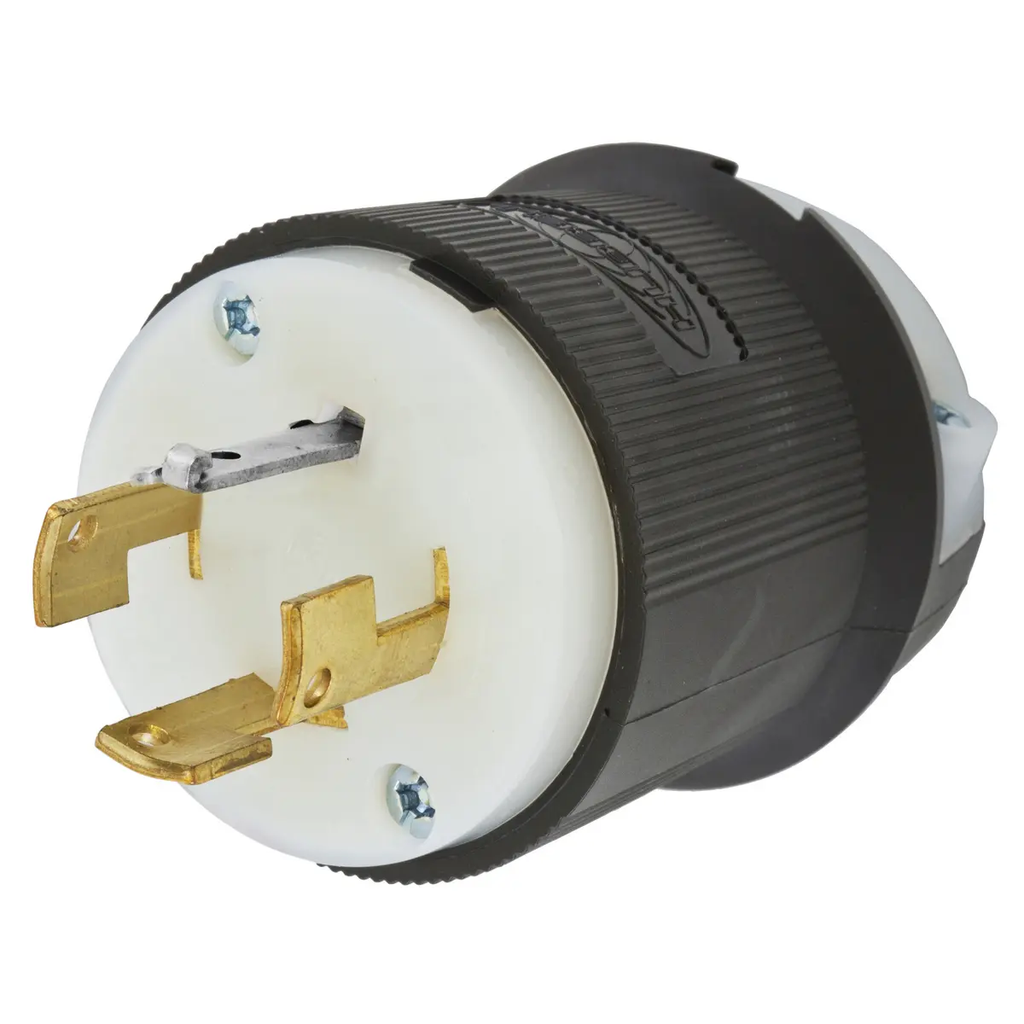

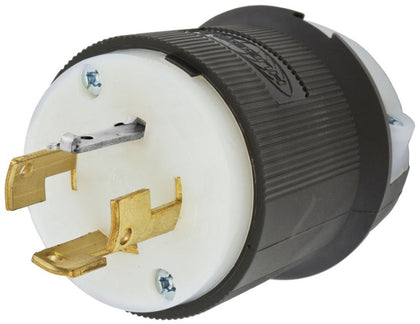

HBL7411GCB is a Hubbell 20 Amp 3-Pole 4-Wire 3-Phase 250 Volt twist-lock plug designed for industrial applications.This non-NEMA locking plug features a black ribbed nylon housing for impact and chemical resistance, a superior cord grip to protect terminations from strain, and a clear funnel-shaped wire entry for ease of termination. It includes an integral dust shield to protect the wiring chamber from contaminants and is certified for current interrupting at full rated current with dielectric voltage withstand of 2,000V minimum.
- Key Specifications
- Amperage: 20 A
- Voltage: 250 VAC
- Poles: 3
- Wires: 4
- Phase: 3
- Configuration: Non-NEMA
- Body Type: Straight
- Material: Black Nylon
- Mounting Type: Plug
- Connection Type: Screw Terminal
- Current Interrupting Certified
- Dielectric Voltage Withstand: 2,000 V minimum
- Part Number: HBL7411GCB
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 250 250
- UPC : 783585037578
- GTIN : 00783585037578
- Dimensions : 2.33 in L x 2.33 in W x 2.75 in H 2.33 x 2.33 x 2.75 in
- Weight : 0.4
