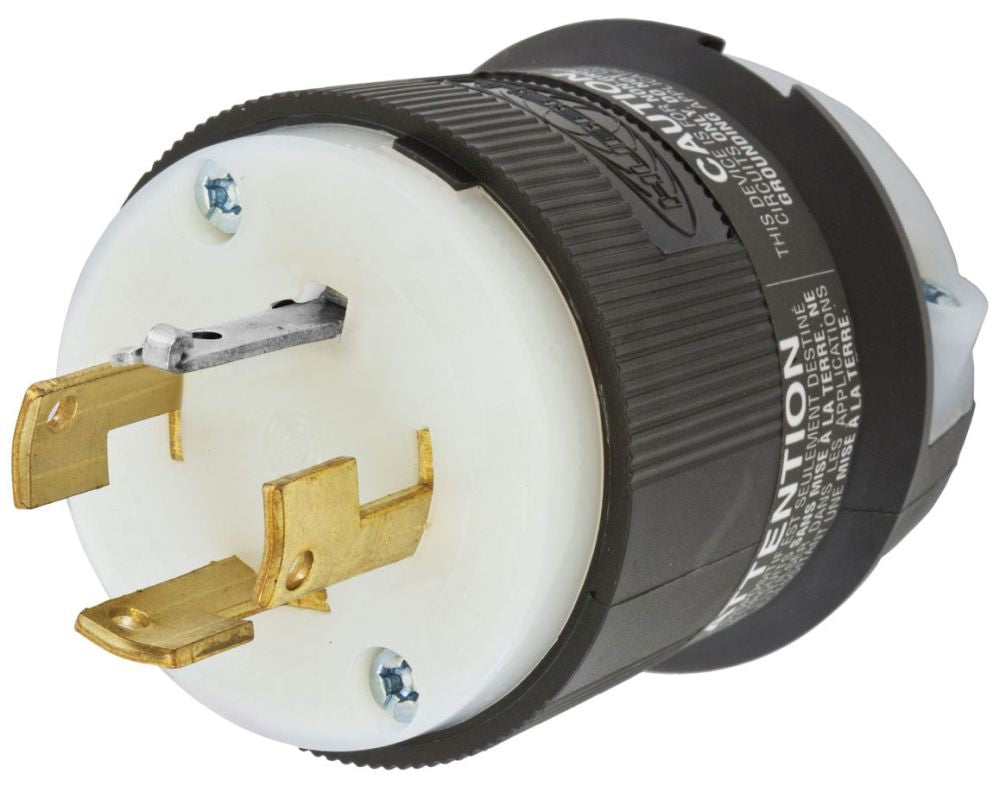

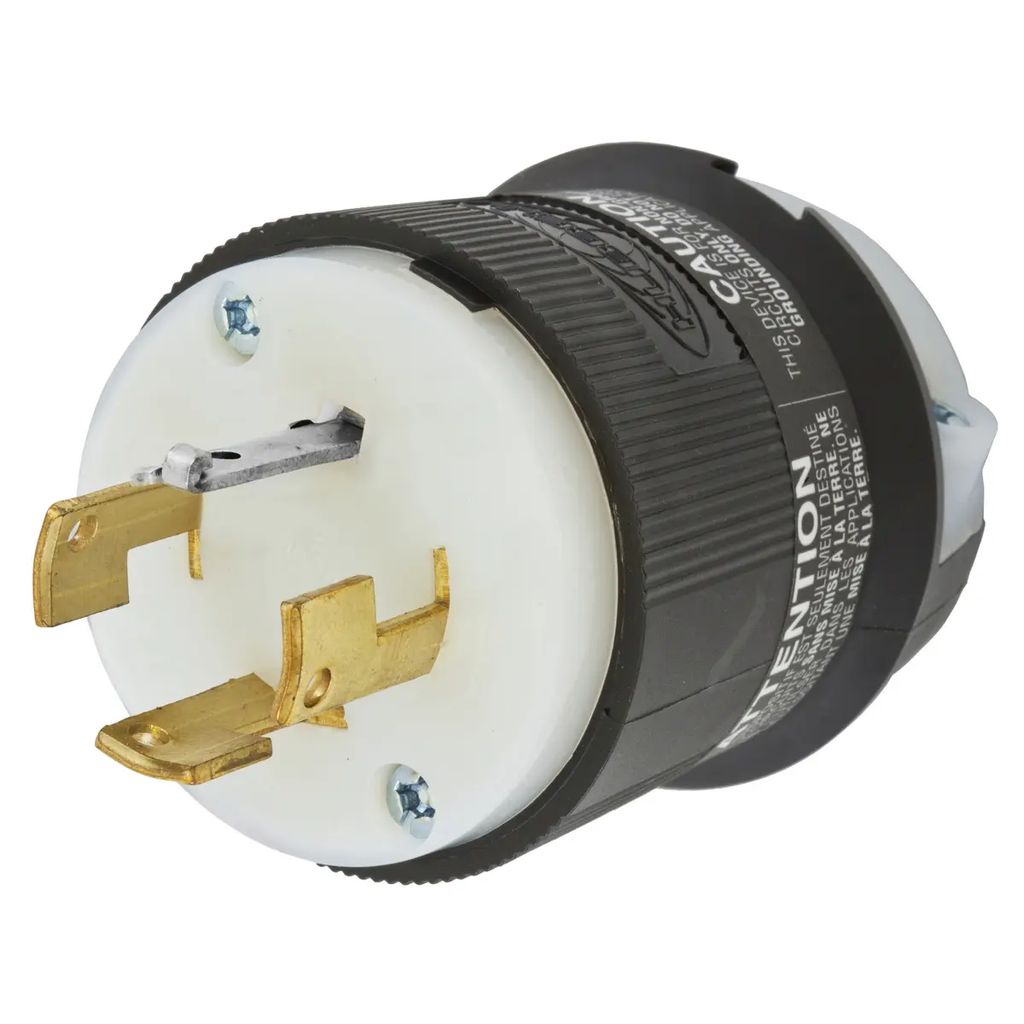

HBL7411C - Hubbell Twist-Lock Industrial Male Plug, 20A 3-Phase 120/208VAC, 4-Pole 4-Wire Non-Grounding, Non-NEMA, Screw Terminal, Black & White Nylon, Insulgrip Series

HBL7411C

HBL7411C Hubbell Twist-Lock industrial male plug is designed for robust 3-phase power applications requiring secure, reliable connections.

This non-NEMA, non-grounding plug features a 4-pole, 4-wire configuration with screw terminals, suitable for 20A, 120/208VAC systems. Constructed from durable black and white nylon, it accommodates cord sizes from 0.350" to 1.150" and is rated for continuous operation up to 75°C. The Insulgrip design ensures easy handling and installation, while the twist-lock mechanism provides a secure, vibration-resistant connection ideal for industrial environments.

Key Specifications
• Amperage: 20A
• Voltage: 3-Phase WYE 120/208VAC
• Poles: 4
• Mounting Type: Cord-mounted
• Interrupt Rating: Certified for current interrupting at full rated current
• Series/Frame: Insulgrip
• Trip Unit: Not applicable
• Certifications: Listed to UL 498, RoHS compliant
• Terminal Type: Screw terminal, #16 AWG to #8 AWG stranded copper wire
• Material: Black and white nylon
• Operating Temperature: -40°C to 75°C
• Dielectric Strength: 2,000V minimum
• Cord Range: 0.350"–1.150" (9–29 mm)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL7411C
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve
• Voltage : 120/208 120/208

Product Data

• UPC : 783585037561
• GTIN : 0783585037561
• Dimensions : 2.21 in Dia x 2.75 in L 2.33 x 2.33 x 2.75 in
• Weight : 0.5
