Product Info
- Manufacturer:Hubbell
- Sub-Category:Plugs Recep
Description
HBL7410BG

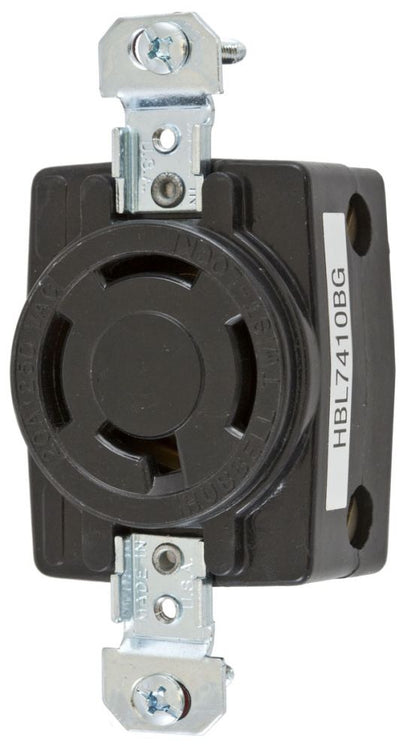

HBL7410BG is a 20 Amp, 250 VAC, 3-Pole 4-Wire grounding industrial flush receptacle by Hubbell designed for heavy-duty applications.This non-NEMA rated receptacle features a durable black nylon face and screw mounting hardware. It supports back wired screw terminals accommodating #16 AWG to #8 AWG copper wire. Rated for indoor dry environments, it withstands continuous temperatures from -40°C to 75°C and dielectric strength of 2,000V minimum. The device is CSA certified and meets UL 498 and Federal Specification W-C-596 standards.
- Key Specifications
- Amperage: 20 A
- Voltage: 250 VAC
- Poles: 3-Pole
- Wires: 4-Wire grounding
- Mounting Type: Flush Mount
- Material: Black Nylon
- Connection Type: Back Wired Screw Terminals
- Wire Size Range: #16 AWG to #8 AWG
- Industry Standards: CSA C22.2 No. 42, UL 498, Federal Spec W-C-596
- Operating Temperature: -40°C to 75°C
- Dielectric Strength: 2,000V minimum
- NEMA Rating: Non-NEMA
Specifications
- Part Number: HBL7410BG
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Voltage : 250 250
Product Data
- UPC : 783585333540
- GTIN : 00783585333540
- Dimensions : 3.61 in L x 1.71 in W x 1.28 in H 3.61 x 1.71 x 1.28 in
- Weight : 0.3
