Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL7410B

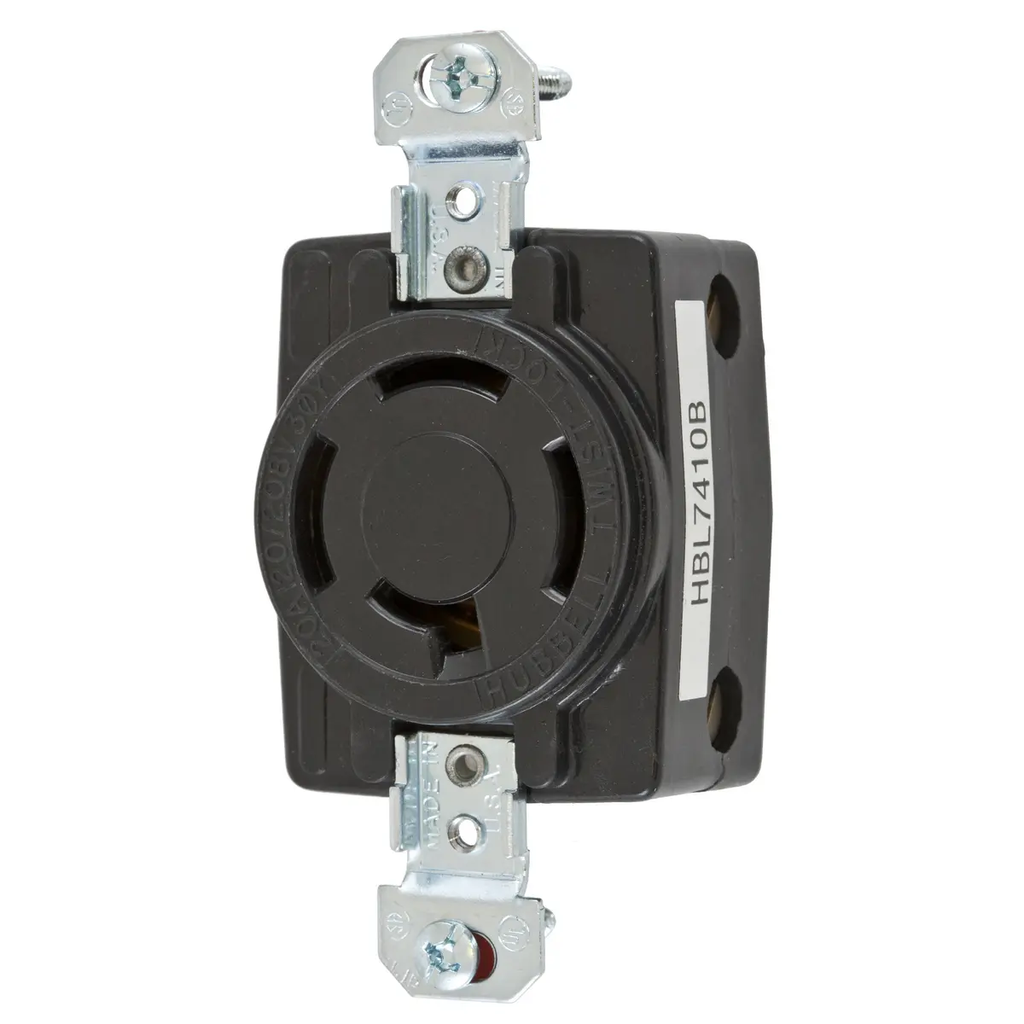

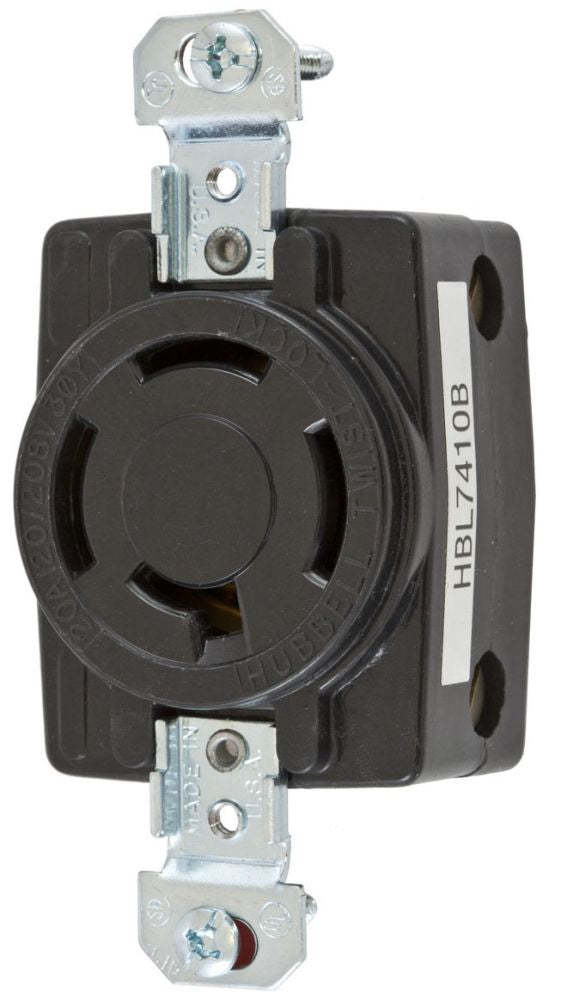

HBL7410B is a Hubbell 20 Amp, 120/208 Volt, 4-Pole 4-Wire Non-NEMA locking receptacle with screw mounting and back wired screw terminals.This receptacle features a black thermoset nylon face and is designed for three-phase WYE 120/208 VAC applications. It supports #16 AWG to #8 AWG wire sizes and is rated for 20 Amps continuous use with a dielectric strength of 2,000V minimum. The device is non-grounding, non-NEMA, and certified for current interrupting at full rated current. It operates reliably in temperatures from -40°C to 75°C and meets CM and EU RoHS compliance standards.
- Amperage: 20 A
- Voltage: 120/208 VAC 3-Phase WYE
- Poles: 4-Pole
- Wires: 4-Wire
- Mounting Type: Screw Mount
- Terminal Type: Back Wired Screw Terminals
- Material: Black Thermoset Nylon Face
- Interrupt Rating: Certified for full rated current interrupting
- Dielectric Strength: 2,000V minimum
- Operating Temperature: -40°C to 75°C
- Standards: CM, EU RoHS Compliant
- Non-NEMA Locking Configuration
Specifications
- Part Number: HBL7410B
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Family : HBL
- Voltage : 120/208Y 120Y/208
Product Data
- UPC : 783585333526
- GTIN : 00783585333526
- Dimensions : 3.61 in L x 1.71 in W x 1.05 in D 3.61 x 1.71 x 1.28 in
- Weight : 0.3
