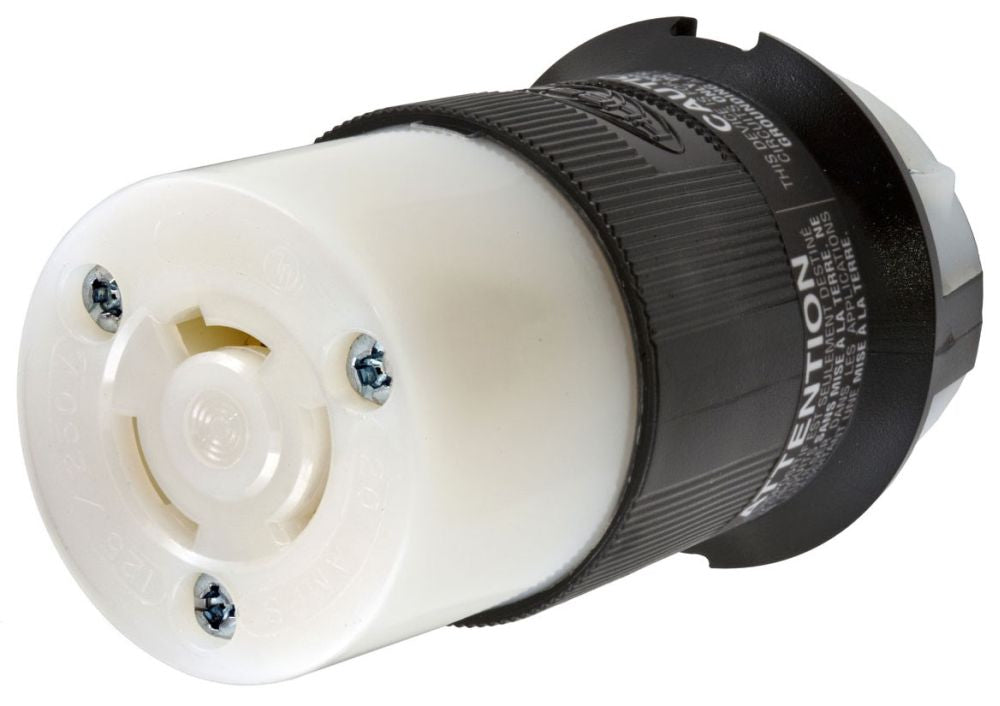

HBL7314C - Hubbell 20A 125/250V 3-Pole 3-Wire Non-Grounding Twist-Lock Connector, Cord Mounted

HBL7314C

HBL7314C is a Hubbell 20 Amp, 125/250 Volt, 3-pole, 3-wire non-grounding Twist-Lock locking connector designed for heavy duty industrial applications.This connector features a ribbed nylon Insulgrip body for secure grip and impact resistance, with a superior cord grip design to protect terminations from strain. It supports conductor sizes 14-12 AWG and cord diameters from 0.325 to 0.93 inches. The device uses pressure screw terminals and includes an integral dust shield to protect wiring chambers from contaminants. Rated for continuous use from -40°C to 75°C (without impact), it meets UL 498 standards and is non-NEMA configured.

Key Specifications
• Amperage: 20 A
• Voltage: 125/250 V AC
• Poles/Wires: 3-pole, 3-wire non-grounding
• Mounting Type: Cord mounted
• Conductor Size: 14-12 AWG
• Cord Diameter Range: 0.325" to 0.93"
• Connection Type: Pressure screw terminals
• Material: Ribbed nylon Insulgrip body
• Temperature Rating: -40°C to 75°C continuous
• Standards: UL 498 certified
• Color: Black and white
• Non-NEMA configuration
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HBL7314C
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Locking Devices
• Family : HBL
• Voltage : 125/250 125/250



Product Data

• UPC : 783585037509
• GTIN : 783585037509
• Dimensions : 2.26 in Dia x 3.86 in L 2.26 x 2.26 x 3.86 in
• Weight : 0.4
