Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL7303C

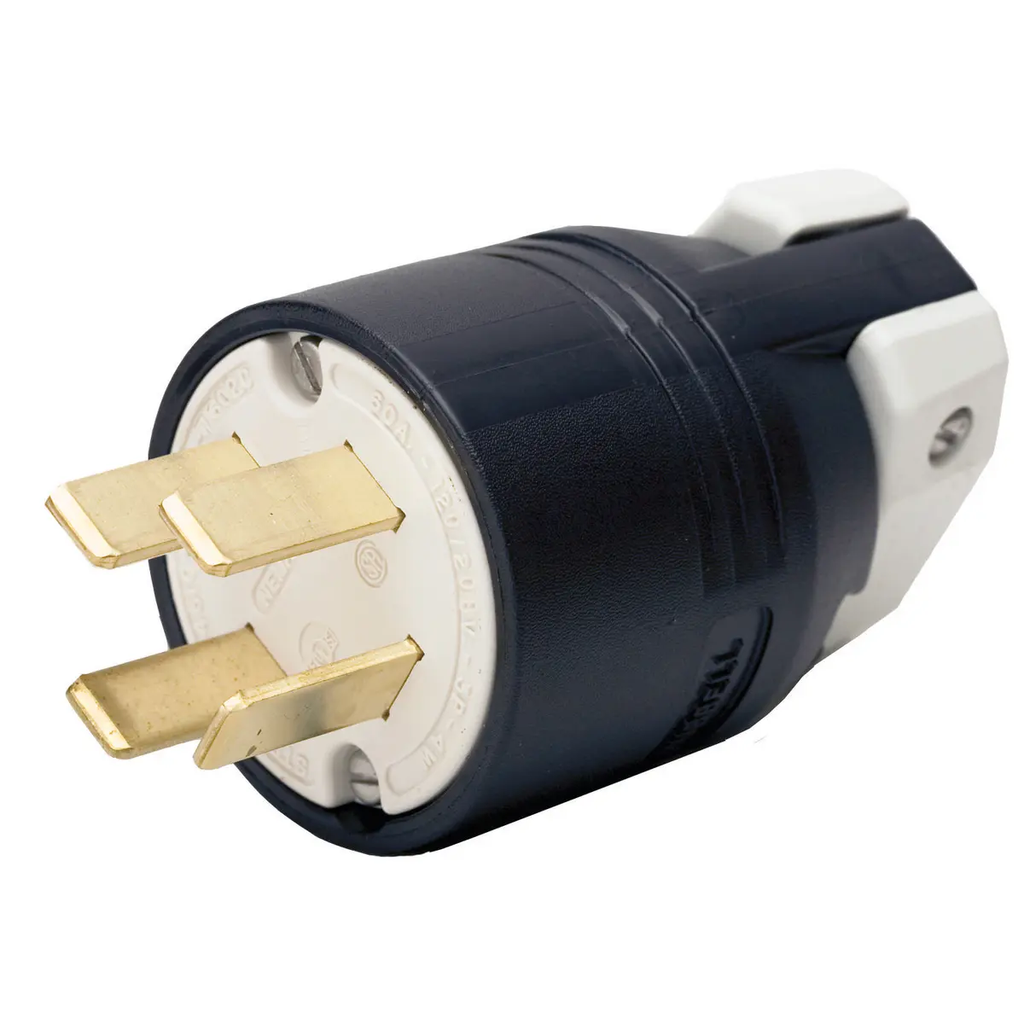

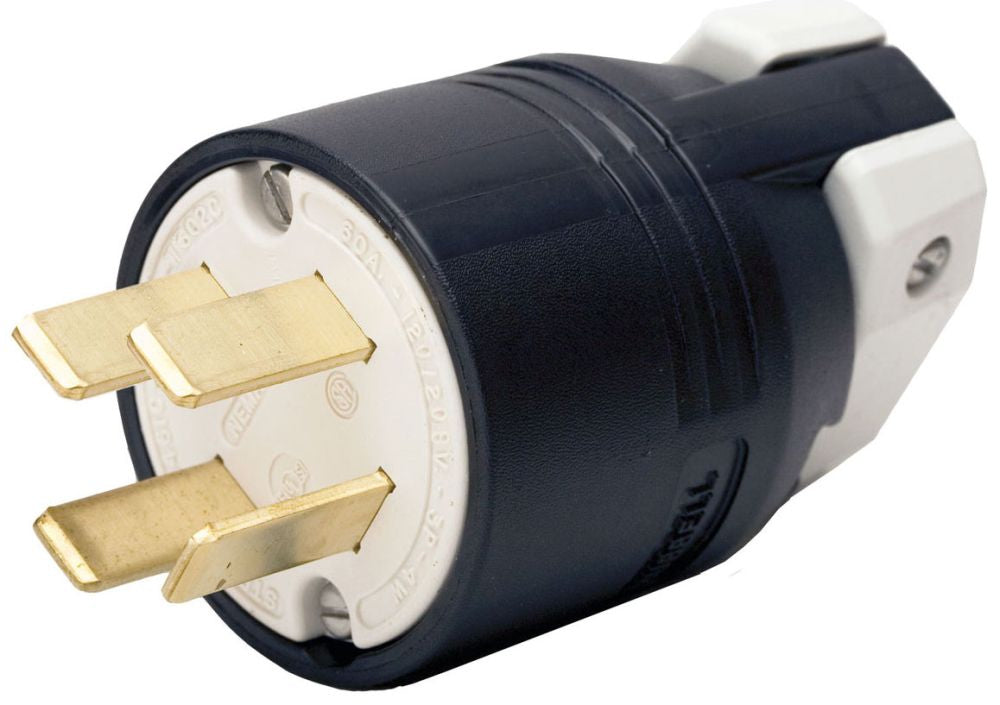

HBL7303C is a heavy-duty industrial/commercial grade straight blade plug designed for 60A 3-phase 120/208V AC applications with a 4-pole 4-wire non-grounding configuration.Constructed from durable black nylon, this Hubbell plug features a straight blade design for reliable power connections in demanding environments. Rated for continuous operation up to 75°C and as low as -40°C, it supports wire sizes from #12 AWG to #4 AWG and withstands a dielectric strength of 2,000V minimum. The plug is certified for current interrupting at full rated current and is suitable for use in industrial and commercial power distribution systems.
- Part Number: HBL7303C
- Manufacturer: Hubbell
- Amperage Rating: 60A
- Voltage Rating: 120/208V AC
- Phase: 3-Phase
- Poles: 4-Pole
- Wires: 4-Wire
- Grounding: Non-Grounding
- Mounting Type: Straight Blade Plug
- Interrupt Rating: Full rated current
- Series: Extra Heavy Duty
- Wire Size: #12 AWG to #4 AWG
- Dielectric Strength: 2,000V minimum
- Operating Temperature: -40°C to 75°C
- Material: Nylon
- Color: Black
Specifications
- Part Number: HBL7303C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
Product Data
- UPC : 783585015385
- GTIN : 00783585015385
- Weight : 1
