HBL7301A - Hubbell 60A 120/208V 4-Pole 4-Wire Industrial Grade Straight Blade Receptacle NEMA 18-60R

HBL7301A

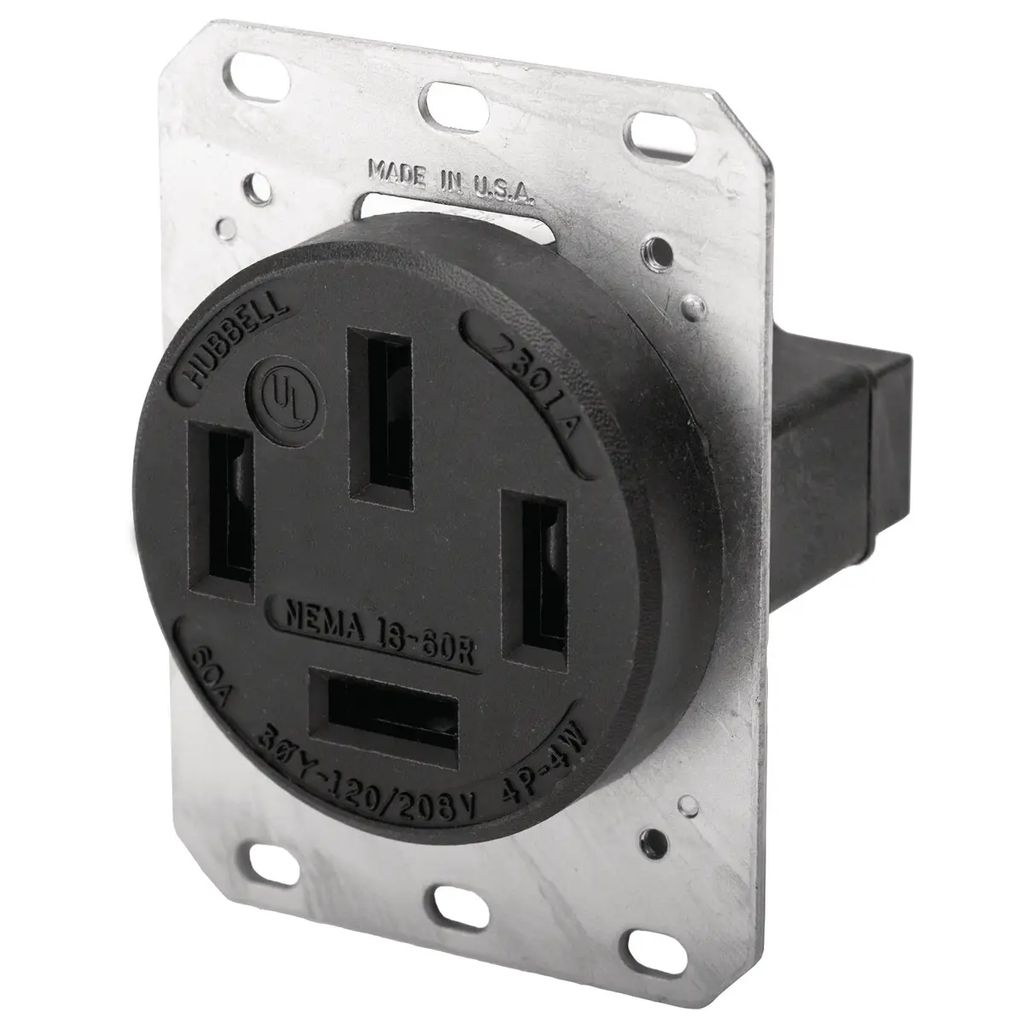

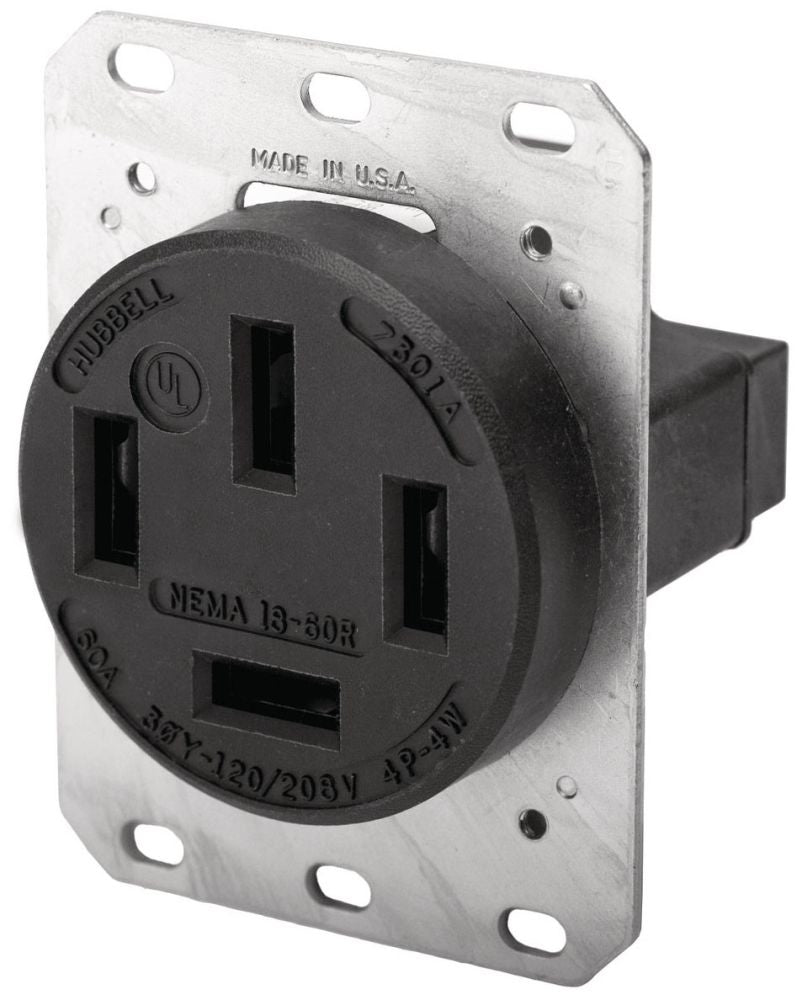

HBL7301A is a Hubbell industrial grade straight blade receptacle rated for 60 amps and 120/208 volts AC with a 4-pole, 4-wire non-grounding design.This receptacle features a thermoplastic polyester housing with brass contacts and a screw mounting plate. It is designed for three-phase power systems, supports wire sizes from #12 AWG to #4 AWG, and meets NEMA 18-60R configuration standards. The device is UL listed, CSA certified, and compliant with NEMA WD-6. It withstands a dielectric voltage of 2,000V minimum and operates reliably in temperatures from -40°C to 75°C continuous.

Key Specifications
• Amperage Rating: 60 A
• Voltage Rating: 120/208 VAC
• Number of Poles: 4-Pole
• Number of Wires: 4-Wire
• Mounting Type: Screw Mounting
• Material: Reinforced Thermoplastic Polyester
• Connectivity: Back and Side Wired Screw Terminals
• Dielectric Strength: 2,000V minimum
• Phase: Three Phase
• Configuration: NEMA 18-60R
• Operating Temperature: -40°C to 75°C continuous
• Certifications: UL Listed, CSA Certified, NEMA WD-6 Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HBL7301A
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve
• Voltage : 120/208 120/208



Product Data

• UPC : 783585015095
• GTIN : 783585015187
• Dimensions : 2.75 in W x 2.44 in D x 3.28 in H 3.28 in H x 2.75 in W x 2.44 in D
• Weight : 0.3
