Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL5969VY

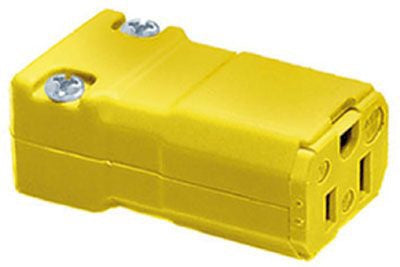

HBL5969VY Hubbell Valise Series industrial/commercial grade female connector body for reliable power connections in demanding environments.
This straight blade, 2-pole, 3-wire grounding connector features a yellow nylon housing, cord-mounted design, and accommodates #18 to #12 AWG stranded copper conductors. It is rated for 15A, 125V, and is certified for current interrupting at full rated current. The connector meets NEMA 5-15R standards, is UL listed (UL498), and is RoHS compliant. Its robust construction includes a Noryl cord clamp for secure strain relief and captive assembly screws for easy, tool-free wiring.
-
Key Specifications
- Amperage: 15A
- Voltage: 125V
- Poles: 2
- Mounting Type: Cord Mounted
- Interrupt Rating: Certified for current interrupting at full rated current
- Series/Frame: Valise Series
- Trip Unit: Not applicable
- Certifications: UL Listed (UL498), RoHS Compliant, NEMA 5-15R
- Wire Size: #18 to #12 AWG stranded copper
- Material: Nylon housing, Noryl cord clamp
- Color: Yellow
- Operating Temperature: -40°C to 75°C
- Dielectric Strength: 2,000V minimum
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HBL5969VY
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125 125
Product Data
- UPC : 783585013107
- GTIN : 00783585013107
- Dimensions : 2.68 x 1.32 x 2.68 in 2-5/8 in L x 1-1/4 in W x 1-1/8 in H
- Weight : 5.19
