Product Info
- Manufacturer:Hubbell
- Sub-Category:Plugs Recep
Description

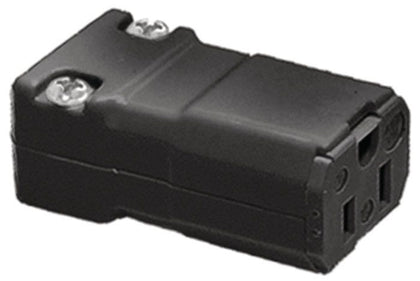

HBL5969VBLK
HBL5969VBLK is a Hubbell Valise Series straight blade female connector body rated for 15 amps and 125 volts with 2 poles and 3 wires.This industrial/commercial grade connector features a nylon insulated body designed for cord mounting, with screw terminal connectivity. It supports a conductor range of #14 AWG to #12 AWG and is rated for indoor dry environments unless otherwise protected. The connector withstands a dielectric strength of 2,000 volts minimum and operates in temperatures from -40°C to 75°C continuous without impact. It meets NEMA 5-15R standards and is RoHS compliant.
- Key Specifications
- Amperage Rating: 15 A
- Voltage Rating: 125 V
- Number of Poles: 2
- Number of Wires: 3
- Material: Nylon Insulated Body
- Mounting Type: Cord Mounted
- Connectivity: Screw Terminals
- Temperature Rating: -40°C to 75°C continuous
- Dielectric Strength: 2,000 V minimum
- Series: Valise®
- NEMA Rating: 5-15R
- Compliance: RoHS, UL 498, CSA C22.2
Specifications
- Part Number: HBL5969VBLK
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Voltage : 125
Product Data
- UPC : 783585013275
- GTIN : 783585013275
- Dimensions : 2.68 x 1.32 x 2.68 in
- Weight : 0.5
