Product Info
- Manufacturer:Hubbell
Description
HBL5684

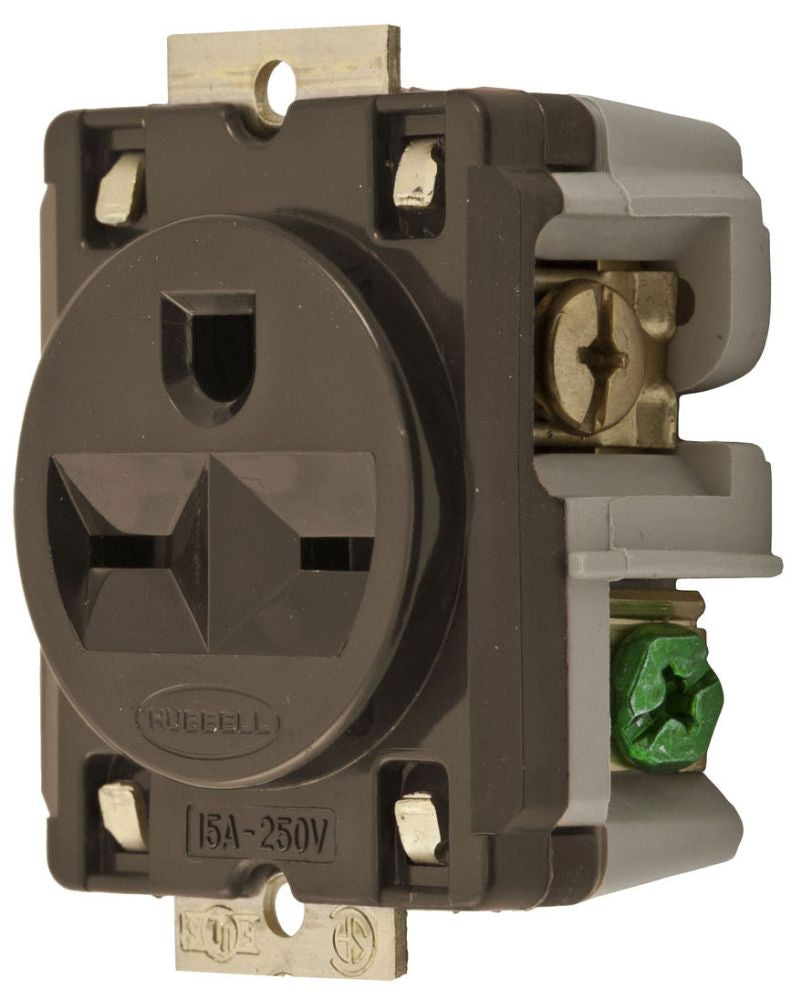

HBL5684 is a straight blade specification grade single panel mount receptacle designed for heavy duty applications. This grounding receptacle features a reinforced PET base material and is rated for 15 amperes at 250 volts with a 2-pole, 3-wire configuration compliant with NEMA 6-15R standards. The unit is certified for current interrupting at full rated current and withstands 2,000V minimum dielectric voltage, making it suitable for secure and efficient electrical connections in demanding environments. Back and side wired connectivity accommodates wire sizes from #14 AWG to #10 AWG. Operating temperature range spans from -40°C to 75°C maximum continuous. The brown finish receptacle measures 1.94 inches in length, 1.63 inches in width, and 1.19 inches in height, weighing 0.2 pounds.
- Amperage Rating: 15 A
- Voltage Rating: 250 V
- Configuration: 2-Pole, 3-Wire Grounding
- Mounting Style: Panel Mount Single
- NEMA Rating: 6-15R
- Wire Size: #14 AWG to #10 AWG
- Dielectric Strength: 2,000V minimum
- Base Material: Reinforced PET
- Color: Brown
- Operating Temperature: -40°C to 75°C
- Connectivity: Back and Side Wired
- EU RoHS Compliant: Yes
Specifications
- Part Number: HBL5684
- Manufacturer : Hubbell
- Brand : Hubbell
- Voltage : 250
Product Data
- UPC : 783585014845
- GTIN : 00783585014845
- Country of Origin : United States
- Dimensions : 1.63 in x 1.94 in x 1.19 in
- Weight : 5.19
