Product Info
- Manufacturer:Hubbell
- Sub-Category:Plugs Recep
Description
HBL5662

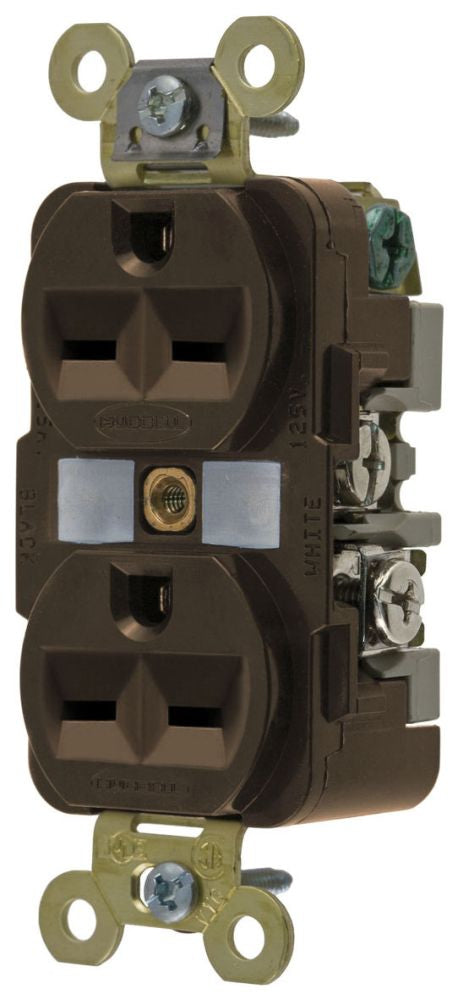

HBL5662 is a Hubbell specification grade duplex receptacle rated for 15 amps and 250 volts with 2 poles and 3-wire grounding in brown color.
This extra heavy duty straight blade device features a 6-15R NEMA configuration, certified for current interrupting at full rated current, and withstands dielectric voltage of 2,000V minimum. It supports back and side wiring with terminal accommodation for #14-#10 AWG copper stranded or solid conductors. The device is UL listed to UL498, CSA certified to C22.2 No. 42, and meets NEMA WD-6 requirements. It has a nylon top, reinforced PET base, brass mounting strap, and stainless steel mounting screws for durability and reliability.
- Key Specifications
- Amperage: 15A
- Voltage: 250V
- Poles: 2
- Wires: 3 (Grounding)
- NEMA Configuration: 6-15R
- Mounting Type: Back and Side Wired
- Interrupt Rating: Certified for full rated current interrupting
- Material: Nylon top, reinforced PET base
- Certifications: UL Listed UL498, CSA C22.2 No. 42
- Terminal Accommodation: #14-#10 AWG copper conductors
- Color: Brown
- Standards: NEMA WD-6 Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HBL5662
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Voltage : 250 250
Product Data
- UPC : 783585435541
- GTIN : 00783585435541
- Dimensions : 3.28 in H x 1.65 in W x 1.19 in D 3.28 x 1.65 x 1.19 in
- Weight : 0.3
