HBL560R9W - Hubbell 60A 4-Pole 5-Wire 3-Phase Y 120/208V Watertight Pin & Sleeve Receptacle

HBL560R9W

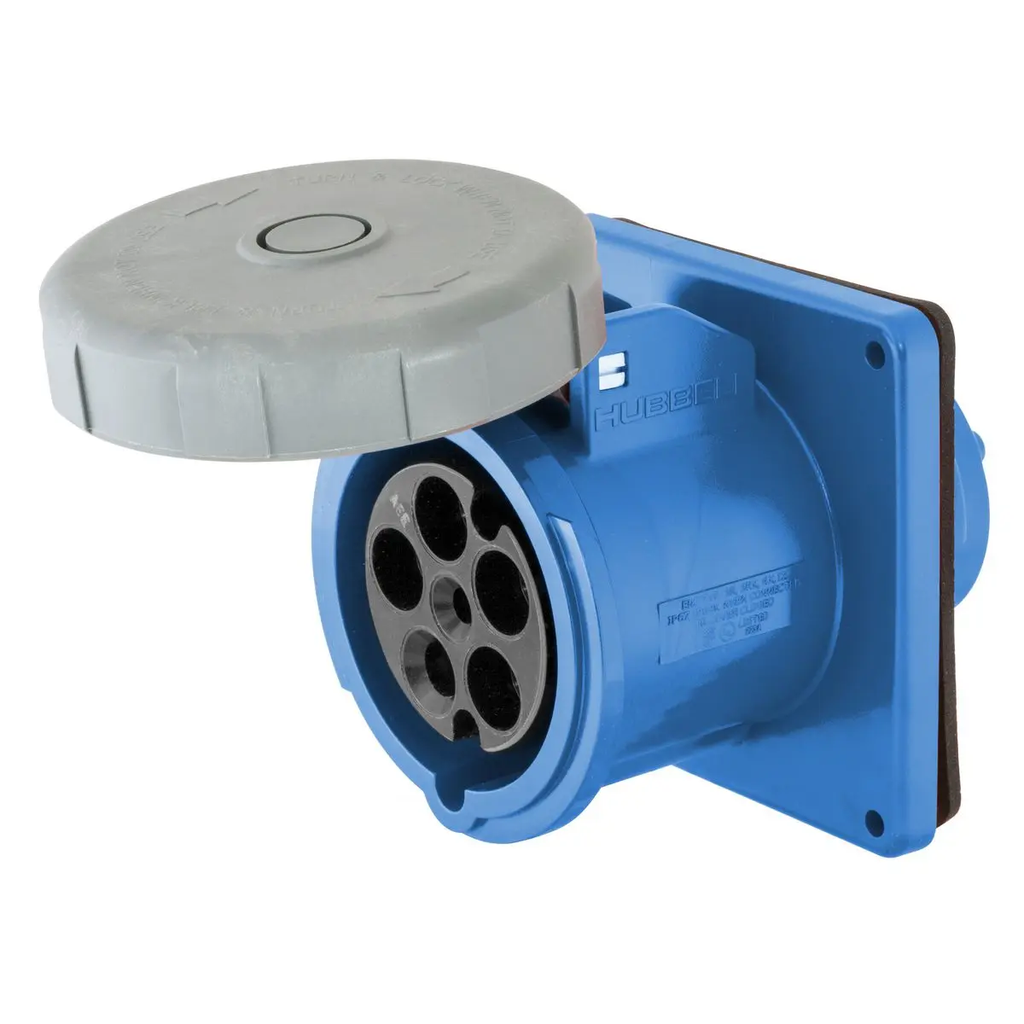

HBL560R9W is a 60 amp, 4-pole, 5-wire, 3-phase Y 120/208V watertight pin and sleeve receptacle from Hubbell.This industrial-grade receptacle features a rugged thermoplastic housing with a self-closing gasketed cover for watertight protection. It is designed for high ampacity watertight connections and meets UL1682 standards. The device includes pressure terminal screws for wire sizes #8 AWG to #2 AWG and is suitable for screw mounting. It is recognized as an approved disconnecting means per NEC 430.109(F) and offers superior strain relief with a heavy-duty external cord grip. The receptacle is color-coded blue for easy identification and rated for 60 amps at 120/208 VAC three-phase power.

Key Specifications
• Amperage: 60 A
• Voltage: 120/208 VAC, 3-Phase Y
• Poles: 4-Pole
• Wires: 5-Wire Grounding
• Material: Thermoplastic housing
• Mounting: Screw Mounting
• Connectivity: Pressure Terminal Screws
• Standards: UL1682 Listed
• Watertight: Yes, with neoprene gasket
• Wire Size Range: #8 AWG to #2 AWG
• Color: Blue
• Environmental Rating: IP67 equivalent
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HBL560R9W
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve
• Voltage : 120/208Y 120/280



Product Data

• UPC : 783585405735
• GTIN : 783585405735
• Dimensions : 4.5 in W x 4.07 in D x 5.1 in H 5.1 in H x 4.5 in W x 4.07 in D
• Weight : 0.4
