Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL560R7W

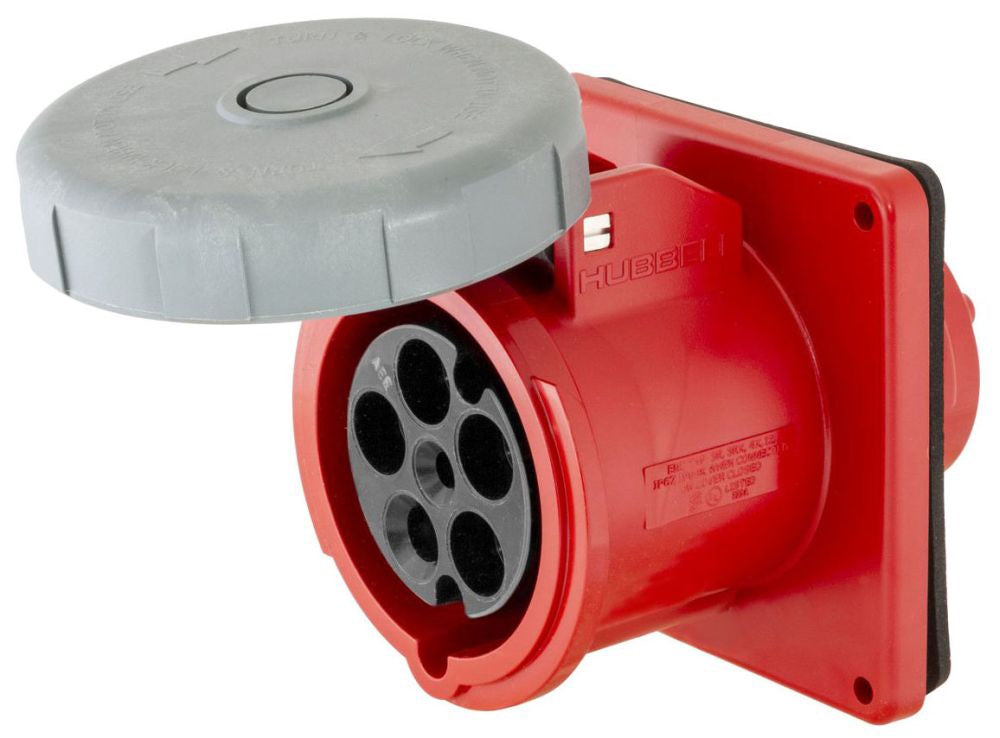

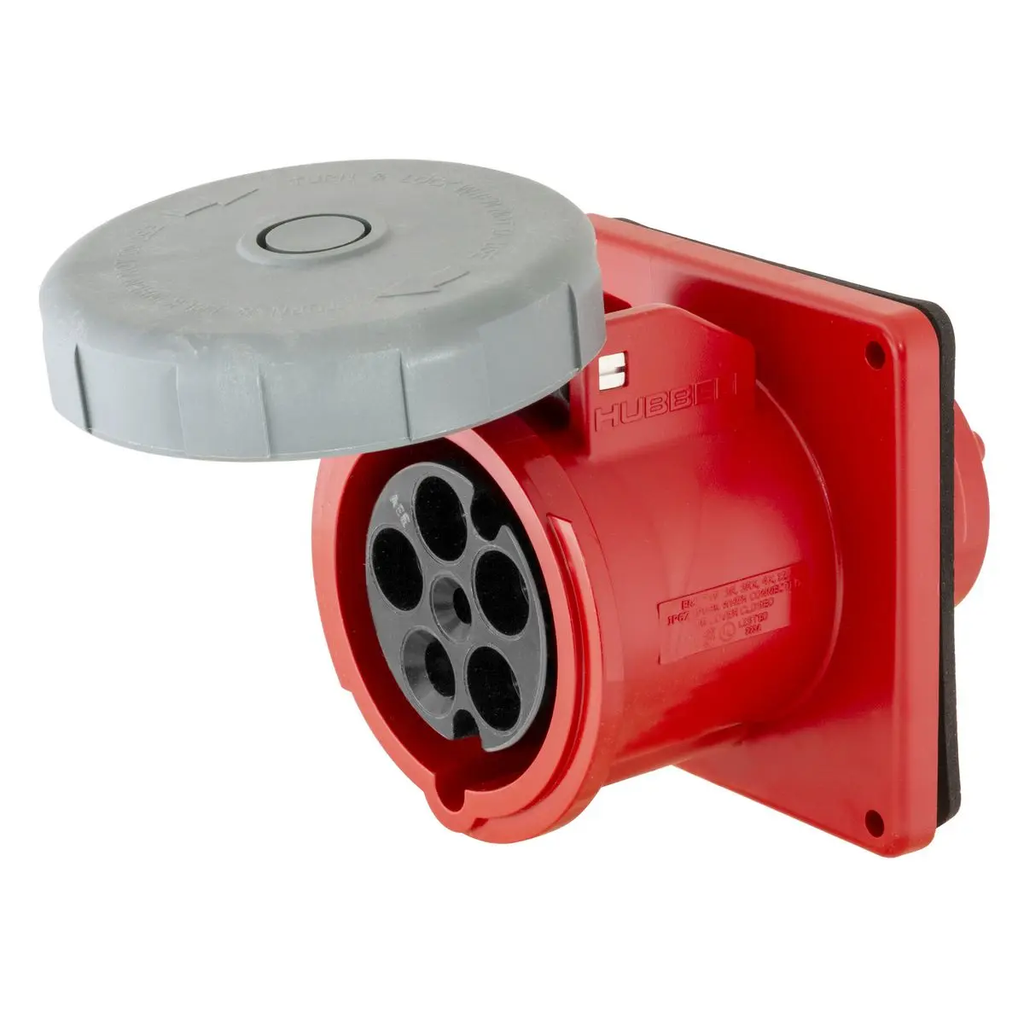

HBL560R7W is a Hubbell industrial-grade, watertight pin & sleeve receptacle designed for demanding environments.
This 4-pole, 5-wire receptacle features a robust thermoplastic housing, reinforced cover, and solid neoprene gaskets for superior water and corrosion resistance. It is rated for 60A, 3-phase Y 277/480V AC, and is suitable for high-ampacity applications where durability and safety are critical. The device is screw-mounted, uses pressure terminal screws for secure connections, and accepts wire sizes from #8 AWG to #2 AWG. It is not NEMA-rated but meets UL1682 and carries EU RoHS compliance.
-
Key Specifications
- Amperage: 60A
- Voltage: 3-phase Y 277/480V AC
- Poles: 4
- Mounting Type: Screw mount, single flanged
- Interrupt Rating: Not specified in available documentation
- Series/Frame: HBL Heavy Duty
- Trip Unit: Not applicable (receptacle only)
- Certifications: UL1682 listed, EU RoHS compliant
- Environmental: Watertight, IP67, impact and corrosion resistant
- Material: Thermoplastic (Zytel® 101 Nylon)
- Wire Size: #8 AWG to #2 AWG
- Style: Standard service, IEC pin and sleeve
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HBL560R7W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 277/480Y 277/480Y
Product Data
- UPC : 783585405728
- GTIN : 00783585405728
- Dimensions : 4.5 in W x 5.1 in H 5.1 in H x 4.5 in W
- Weight : 0.5
