Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL560P9W

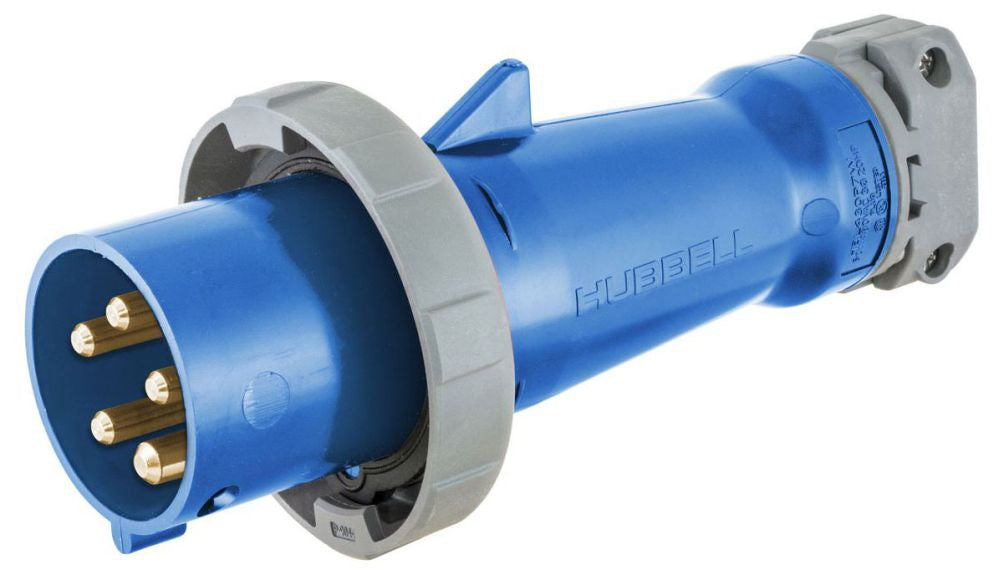

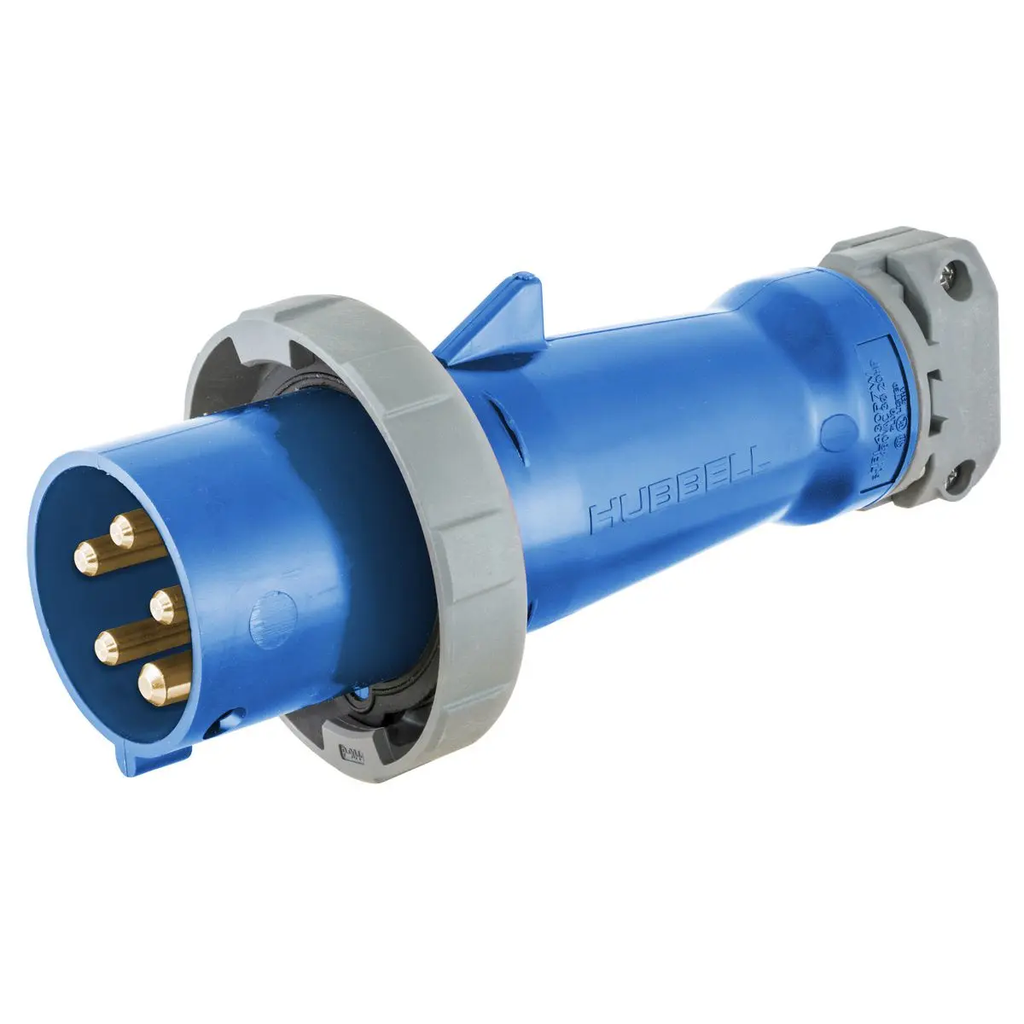

HBL560P9W is a 60 amp, 120/208 volt, 4-pole, 5-wire watertight pin and sleeve plug from Hubbell designed for heavy-duty industrial use.This watertight plug features a rugged one-piece composite housing with thermoset polyester contact carrier for high resistance to electrical tracking and thermal overloads. It is cord-mounted with pressure terminal screws and supports #8 to #2 AWG wire sizes. The device meets NEC 430.109(F) for disconnecting means and is UL listed to IEC60309-1 standards with UL Type 4X, 12, and IP69k environmental ratings for superior durability and safety.
- Key Specifications
- Amperage: 60 A
- Voltage: 3 Phase Y 120/208 VAC
- Poles: 4-Pole, 5-Wire Grounding
- Mounting Type: Cord Mounted
- Material: Composite housing with thermoset contact carrier
- Connectivity: Pressure terminal screws
- Environmental Ratings: UL Type 4X, 12, IP69k Watertight
- Certifications: UL Listed, CSA Standard C22.2 No. 182.1, UL Classified IEC60309-1
- Wire Size Range: #8 AWG to #2 AWG
- Series: Hubbell HBL Heavy Duty
- Color: Blue
Specifications
- Part Number: HBL560P9W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Family : HBL
- Voltage : 120/208Y
Product Data
- UPC : 783585405704
- GTIN : 00783585405704
- Dimensions : 4.49 in Dia x 10.15 in L
- Weight : 0.3
