HBL560C9W - Hubbell 60A 4-Pole 5-Wire 120/208V IEC Pin & Sleeve Watertight Connector

HBL560C9W

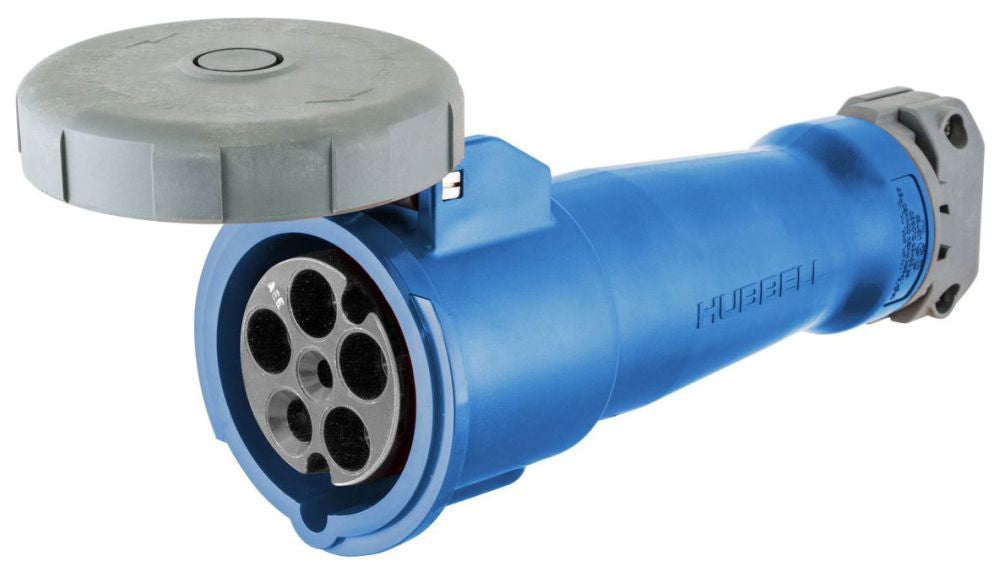

HBL560C9W is a heavy-duty IEC pin and sleeve watertight connector designed for industrial power distribution applications requiring reliable, secure connections in demanding environments. This connector features a robust non-metallic housing, sequential contact engagement, and is rated for 60A at 120/208V 3-phase Y, 4-pole, 5-wire grounding. Ideal for use in wet, corrosive, or high-impact locations, it provides superior protection against water ingress and environmental hazards. The HBL560C9W connector is constructed with impact and corrosion resistant PBT housing, a solid neoprene glad seal, and UL Type 4X, IP68, and IP69K environmental ratings. It supports conductor sizes from #8 AWG to #2 AWG and is certified to UL, CSA, and IEC standards for safety and performance. The connector body is color-coded for easy identification and features permanent terminal identification in accordance with North American and IEC conventions.

• Amperage Rating: 60A
• Voltage Rating: 3-Phase Y 120/208V
• Poles: 4
• Wires: 5-Wire Grounding
• Mounting Type: Cord
• Interrupt Rating: Certified for current interrupting at full rated current
• Series/Frame: HBL Heavy Duty
• Certifications: UL Listed, CSA Certified, IEC 60309-1/2
• Housing Material: PBT (Blue)
• Environmental Rating: UL Type 4X, IP68, IP69K
• Operating Temperature: -40°C to 75°C
• Conductor Range: #8 AWG to #2 AWG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL560C9W
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve

Product Data

• UPC : 783585405674
• GTIN : 0783585405674
• Weight : 0.5
