Product Info
- Manufacturer:Hubbell
- Sub-Category:Plugs Recep
Description
HBL560C7W

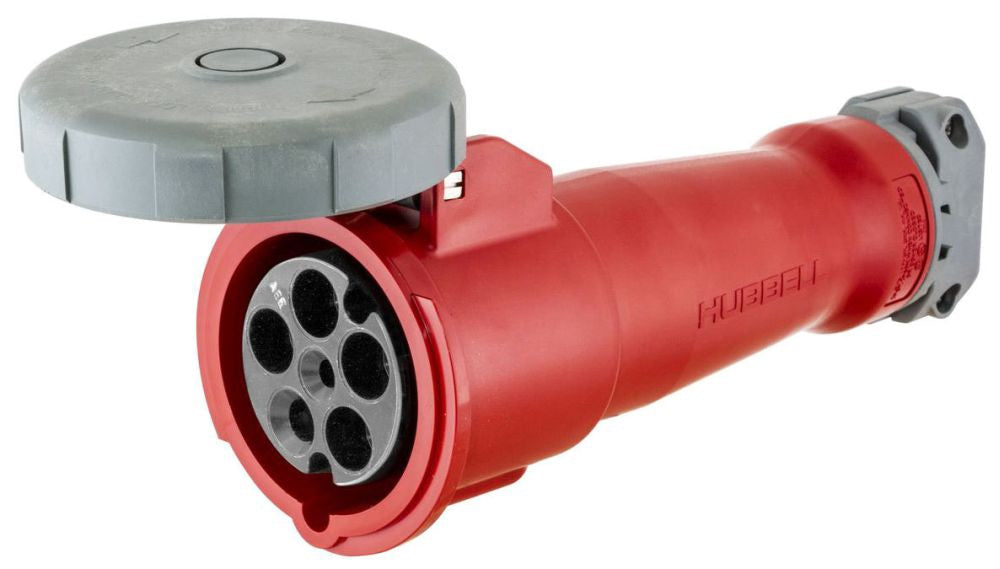

HBL560C7W is a Hubbell 60 Amp, 4 Pole 5 Wire, 277/480 Volt AC watertight pin and sleeve connector body designed for industrial applications.This heavy-duty female connector body features a rugged Zytel ST801 nylon housing with a self-closing gasketed cover for watertight protection (IP67). It is rated for 60A continuous current at 277/480 VAC 3-phase wye systems and certified for current interrupting at full rated current. The device includes pressure terminal screws, is color-coded red for easy identification, and withstands operating temperatures from -40°C to 75°C. It meets UL and CSA certifications and is suitable for harsh environments including agriculture, chemical processing, and construction.
- Key Specifications
- Amperage: 60 Amps
- Voltage Rating: 277/480 VAC 3-Phase Wye
- Poles: 4
- Wires: 5 (including ground)
- Mounting Type: Female Connector Body
- Interrupt Rating: Certified for full rated current interrupting
- Material: Zytel ST801 Nylon
- Ingress Protection: IP67 Watertight
- Operating Temperature: -40°C to 75°C
- Certifications: UL, CSA
- Color: Red
- Terminal Type: Pressure Terminal Screws
Specifications
- Part Number: HBL560C7W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Voltage : 277/480 277/480
Product Data
- UPC : 783585405667
- GTIN : 00783585405667
- Dimensions : 11.15 in L x 5.1 in W
- Weight : 5.19
