Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL5466C

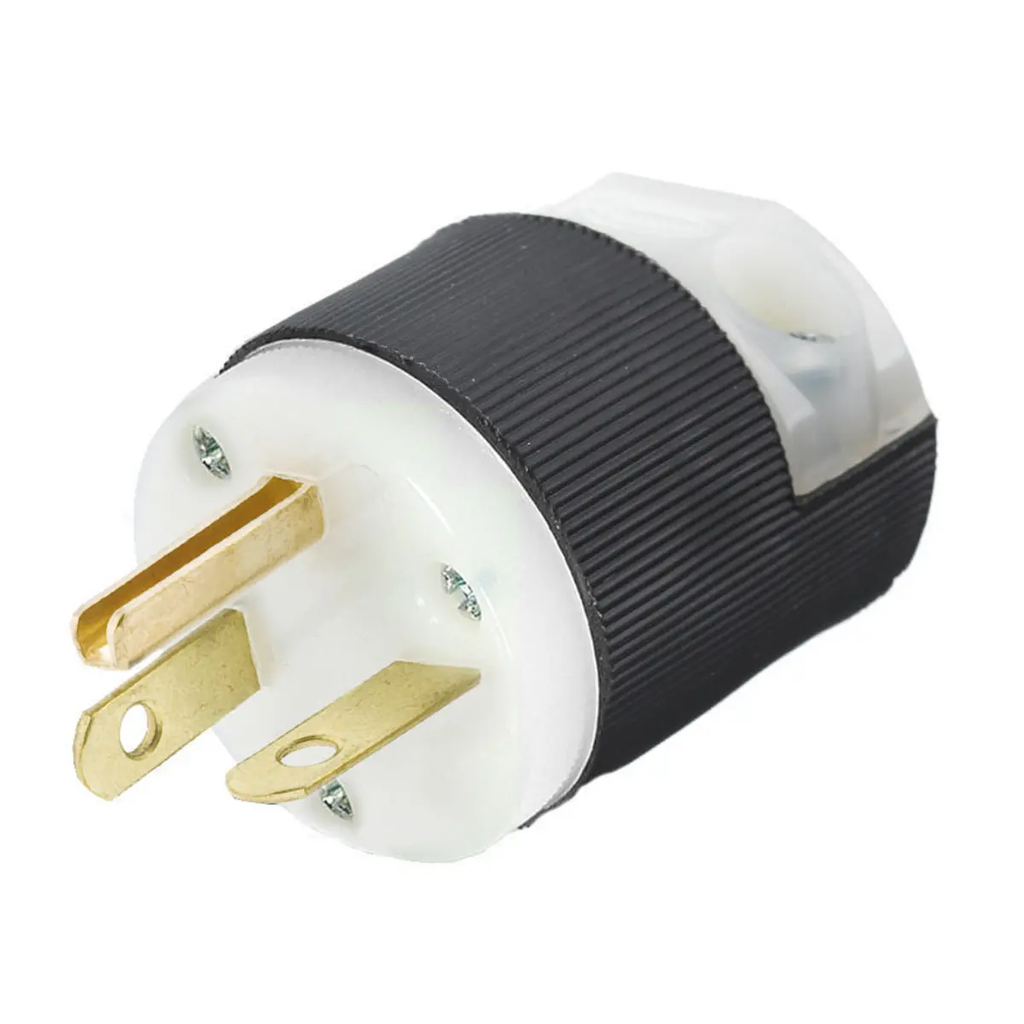

HBL5466C is a Hubbell Insulgrip heavy duty industrial/commercial grade straight blade plug rated for 20 amps and 250 volts with 2 poles and 3 wires in black and white color.This plug features a ribbed nylon housing that is impact and chemical resistant, a VARI-SIZE adjustable cord clamp, fast lead assembly screws, and a beveled housing to prevent snagging. It is certified for current interrupting at full rated current and withstands a dielectric voltage of 2,000 volts minimum. The plug supports wire sizes from #18 AWG to #10 AWG and is rated for continuous operation from -40°C to 75°C.
- Key Specifications
- Amperage: 20 A
- Voltage: 250 V
- Poles: 2
- Wires: 3
- Type: Straight Blade Plug
- Housing: Ribbed Nylon, Impact and Chemical Resistant
- Cord Clamp: VARI-SIZE Adjustable
- Dielectric Strength: 2,000 V minimum
- Operating Temperature: -40°C to 75°C
- Wire Size Range: #18 AWG to #10 AWG
- Standards: NEMA 6-20P, CM Rated
- Color: Black and White
Specifications
- Part Number: HBL5466C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 250 250
Product Data
- UPC : 783585174709
- GTIN : 00783585174709
- Dimensions : 1.53 in Dia x 1.97 in L 1.97 x 1.53 x 1.53 in
- Weight : 5.19
