Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL5462I

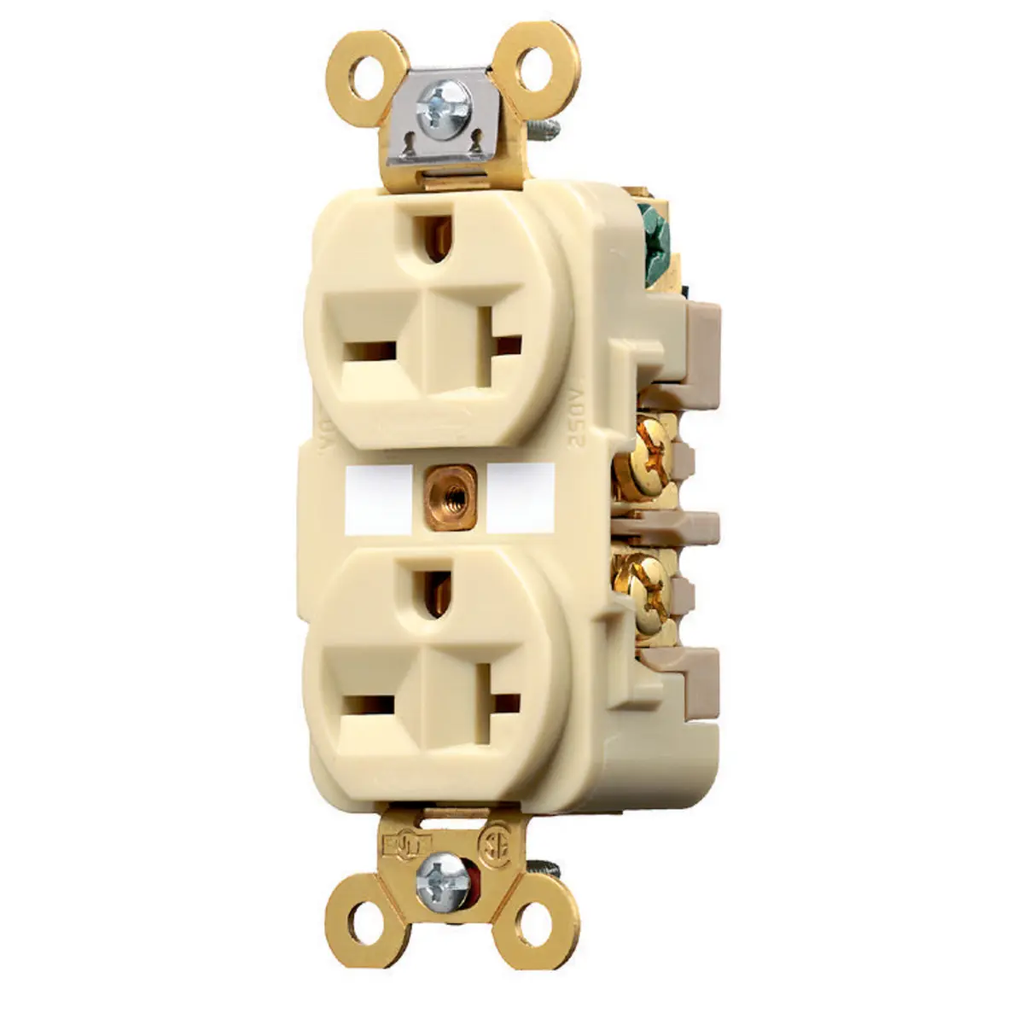

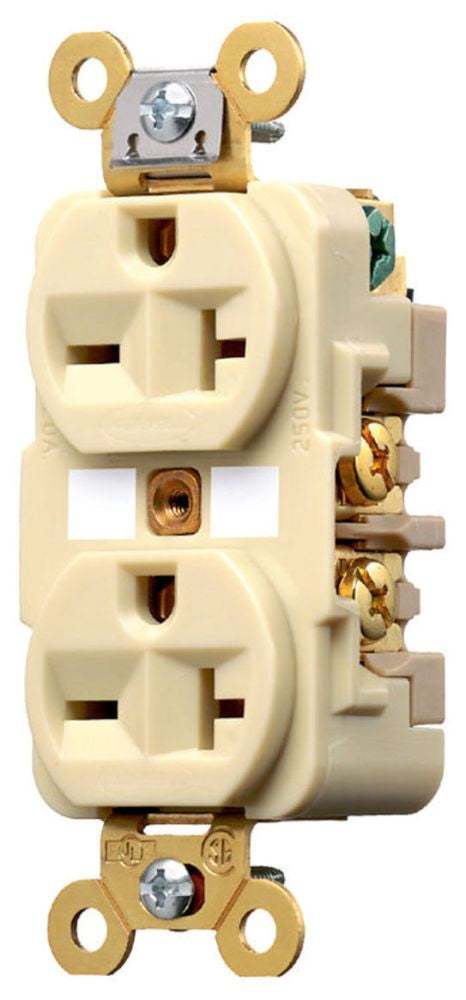

HBL5462I is a Hubbell extra heavy duty 20 amp, 250 volt, 2-pole, 3-wire grounding duplex receptacle in ivory color.This specification grade receptacle features a finder groove face design, back and side wired screw terminals, and is rated for indoor dry environments. It is UL and CSA certified for current interrupting at full rated current, with a dielectric strength of 2,000 volts minimum. The device supports #14 to #10 AWG wire sizes, has a maximum continuous operating temperature of 75°C, and is RoHS compliant.
- Key Specifications
- Amperage Rating: 20 A
- Voltage Rating: 250 V
- Number of Poles: 2
- Number of Wires: 3-Wire Grounding
- Configuration: NEMA 6-20R
- Mounting Type: Screw Mounting
- Interrupt Rating: Certified for full rated current interrupting
- Series: Extra Heavy Duty
- Operating Temperature: -40°C to 75°C continuous
- Material: Nylon face, PBT base
- Certifications: UL 498, CSA C22.2, RoHS Compliant
- Color: Ivory
Specifications
- Part Number: HBL5462I
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 250 250
Product Data
- UPC : 783585435527
- GTIN : 0783585435527
- Dimensions : 3.28 in H x 1.65 in W x 1.19 in D 3.28 x 1.65 x 1.19 in
- Weight : 5.19
