Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL5378C

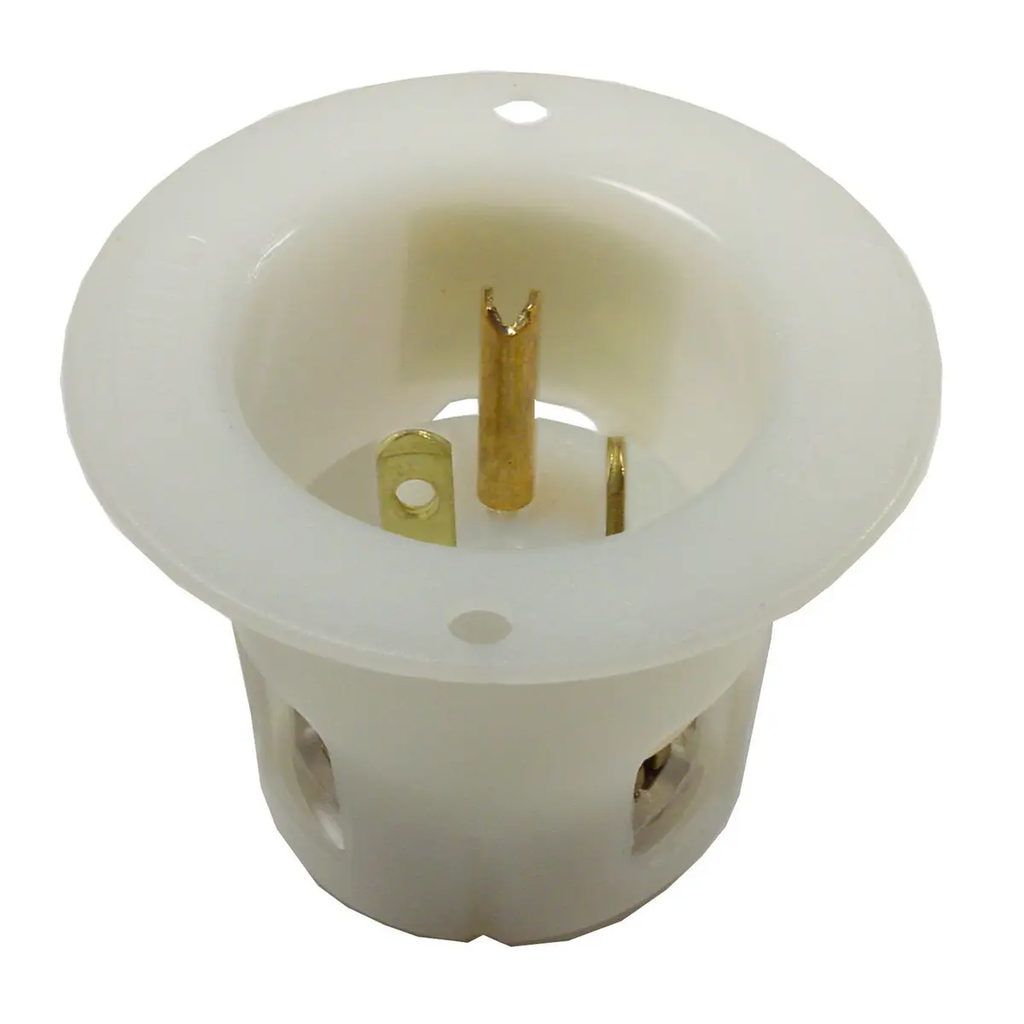

HBL5378C is a 20A, 125V, 2-pole, 3-wire grounding flanged inlet designed for industrial and commercial applications. This Hubbell Extra Heavy Duty series device features impact-resistant thermoplastic construction and backwired terminations for easy installation. It is suitable for use with #18 to #10 AWG copper conductors and is rated for maximum continuous operation at 75°C. The HBL5378C flanged inlet is UL Listed, CSA Certified, and NEMA WD-6 compliant, ensuring reliable performance in demanding environments. Its nylon casing and brass blades provide durability and corrosion resistance, while the included mounting screws simplify setup. The device is ideal for use in dry indoor locations unless protected by additional means.
- Part Number: HBL5378C
- Manufacturer: Hubbell
- Amperage Rating: 20A
- Voltage Rating: 125V
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- Mounting Type: Flanged, Screw Mounting
- Interrupt Rating: Full rated current
- Series: Extra Heavy Duty
- Material: Nylon casing, brass blades
- Certifications: UL Listed, CSA Certified, NEMA WD-6
- Operating Temperature: -40°C to 75°C
Specifications
- Part Number: HBL5378C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125 125
Product Data
- UPC : 783585174402
- GTIN : 00783585174402
- Dimensions : 1.71 x 1.69 x 1.71 in 2.56 in Dia x 1.72 in L
- Weight : 5.19
