Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL5369C

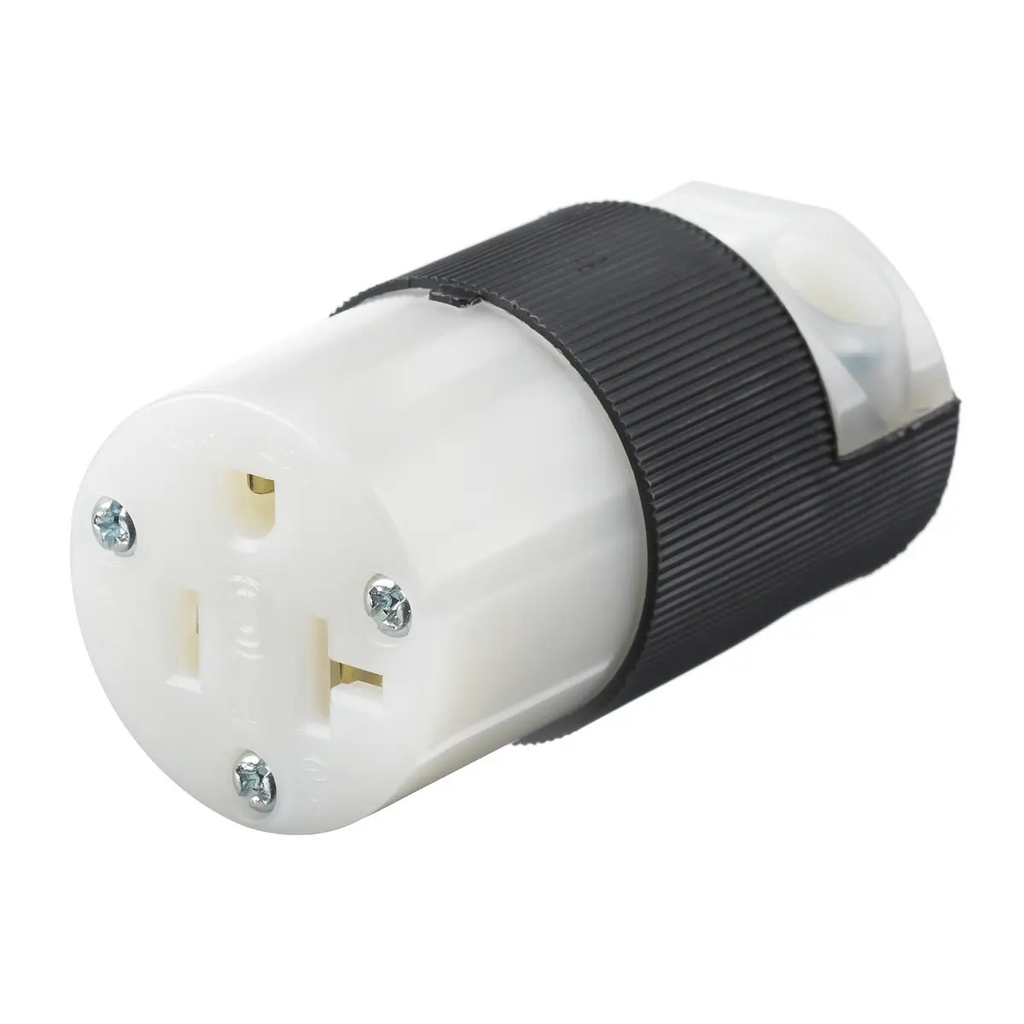

HBL5369C is a Hubbell Insulgrip® heavy duty industrial-grade straight blade female connector rated for 20 amps and 125 volts AC.
This connector features a 2-pole, 3-wire grounding design with screw terminal connections and accommodates #18 to #10 AWG copper conductors. It is cord mounted with a black and white nylon housing, rated for continuous operation from -40°C to 75°C without impact. The device meets UL 498, CSA C22.2 No. 42, and NEMA WD-1, WD-5 standards and has a NEMA 5-20R configuration with a dielectric strength of 2000V minimum.
- Key Specifications
- Amperage: 20 A
- Voltage: 125 VAC
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- Mounting Type: Cord Mounted
- Connection Type: Screw Terminals
- Wire Size Range: #18 AWG to #10 AWG
- Temperature Rating: -40°C to 75°C continuous
- Material: Nylon housing with polycarbonate terminal retainer
- NEMA Configuration: 5-20R
- Certifications: UL Listed, CSA Certified, NEMA WD-1, WD-5 compliant
- Dielectric Strength: 2000V minimum
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HBL5369C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125
Product Data
- UPC : 783585174259
- GTIN : 00783585174259
- Dimensions : 2.78 x 1.41 x 1.53 in
- Weight : 0.5
