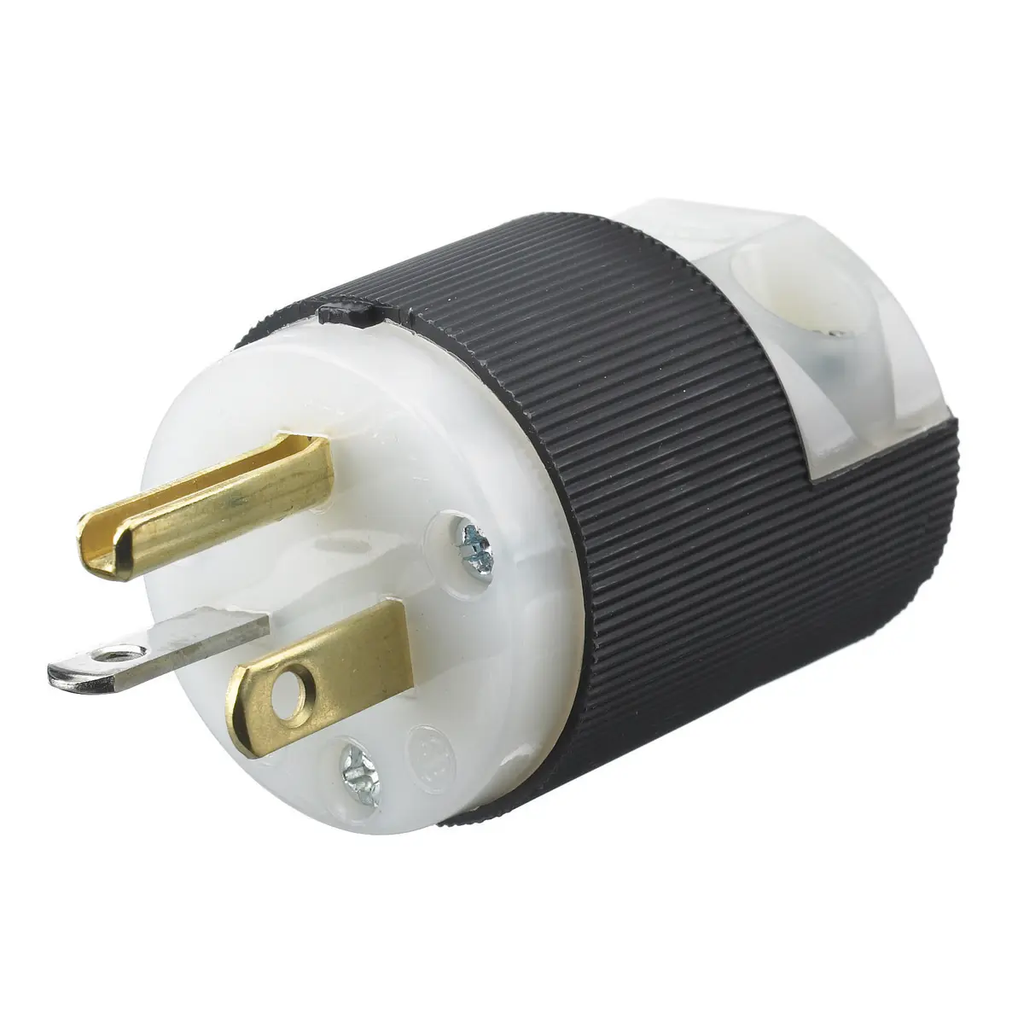

HBL5366C - Hubbell 20A 125V 2-Pole 3-Wire Grounding Plug NEMA 5-20P Insulgrip Industrial/Commercial Grade

HBL5366C

HBL5366C is a Hubbell Insulgrip 20A 125V 2-pole 3-wire grounding plug designed for industrial and commercial applications. This NEMA 5-20P plug features a ribbed nylon housing for impact and chemical resistance, a VARI-SIZE adjustable cord clamp, and fast lead assembly screws for easy installation. The beveled housing prevents snagging and ensures a secure fit. This plug is rated for single-phase 125V AC, 20A, and is suitable for use with conductors from #18 AWG to #10 AWG. It is certified for current interrupting at full rated current and meets UL 498, NEMA WD-1, and WD-5 standards. The plug is designed for portable use and is ideal for environments requiring reliable and durable electrical connections.

• Part Number: HBL5366C
• Manufacturer: Hubbell
• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Mounting Type: Portable
• Interrupt Rating: Full rated current
• Series/Frame: Insulgrip
• Certifications: UL 498, NEMA WD-1, WD-5
• Wire Size: #18 AWG to #10 AWG
• Operating Temperature: -40°C to 75°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL5366C
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve
• Voltage : 125 125

Product Data

• UPC : 783585173955
• GTIN : 00783585173955
• Dimensions : 1.52 x 1.52 x 1.96 in 1.53 in Dia x 1.97 in L
• Weight : 0.5
