Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL5362I

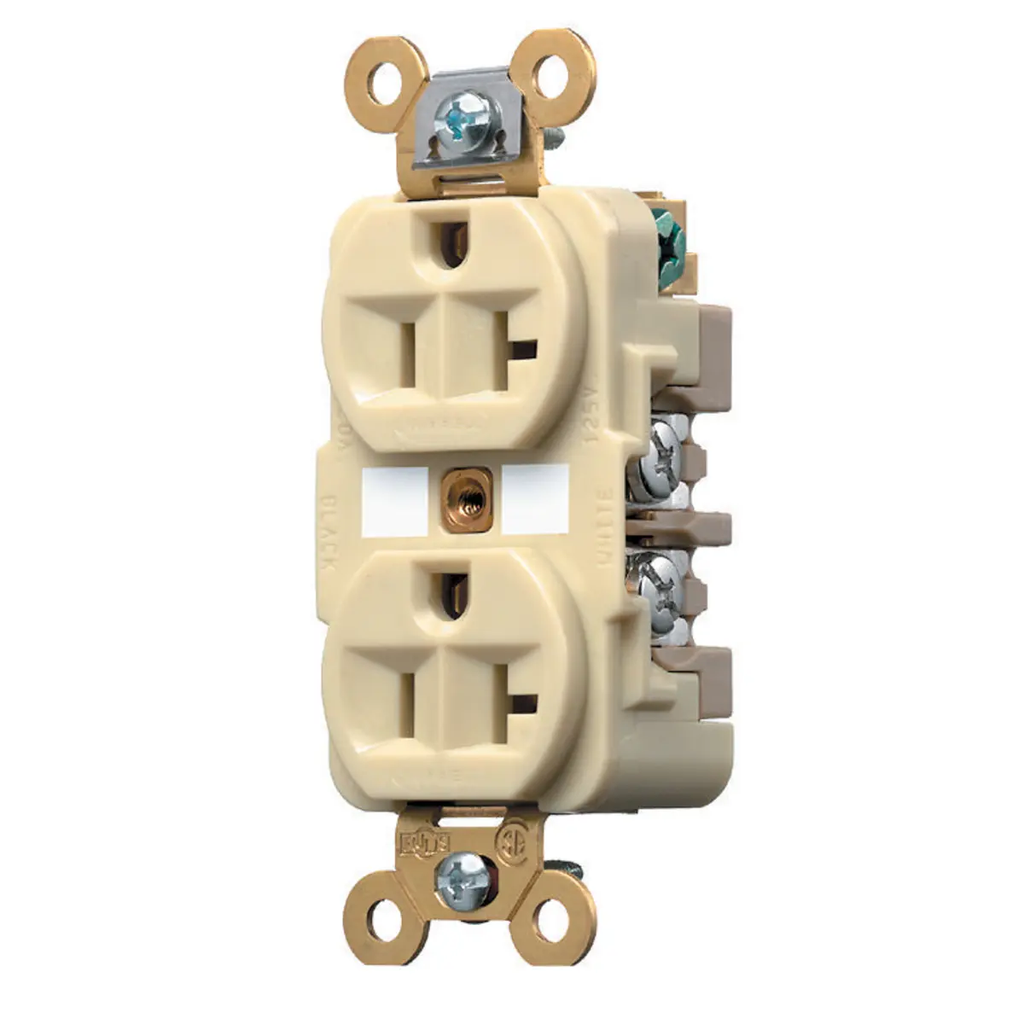

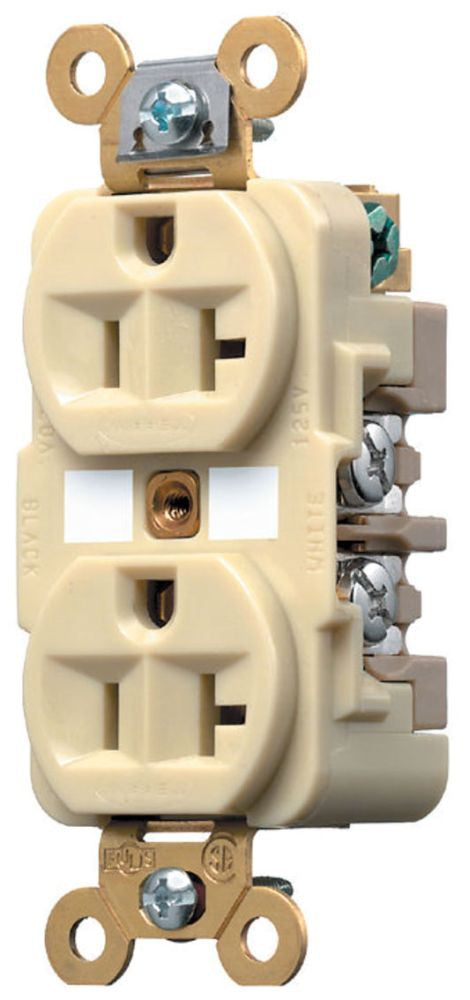

HBL5362I is a Hubbell heavy duty straight blade duplex receptacle rated for 20 amps and 125 volts in an ivory finish.
This extra heavy duty industrial grade receptacle features a 2-pole, 3-wire grounding configuration with NEMA 5-20R rating. It supports back and side wiring with screw terminals and is designed for indoor dry environments. The receptacle withstands 2,000V dielectric strength and operates between -40°C and 75°C. It complies with UL 498 and NEMA WD-1, WD-5 standards, making it suitable for commercial and industrial applications.
- Key Specifications
- Amperage: 20 A
- Voltage: 125 V AC
- Poles: 2
- Wiring: 3-Wire Grounding
- NEMA Rating: 5-20R
- Mounting Type: Screw, Flush
- Material: Nylon Face, Plastic Body
- Terminal Connection: Back and Side Wired Screw Terminals
- Dielectric Strength: 2,000 V minimum
- Operating Temperature: -40°C to 75°C
- Standards: UL 498, NEMA WD-1, WD-5
- Color: Ivory
- Part Number: HBL5362I
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125 125
- UPC : 783585435282
- GTIN : 00783585435282
- Dimensions : 3.28 in H x 1.65 in W x 1.19 in D 3.28 x 1.65 x 1.19 in
- Weight : 5.19
