Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL5352I

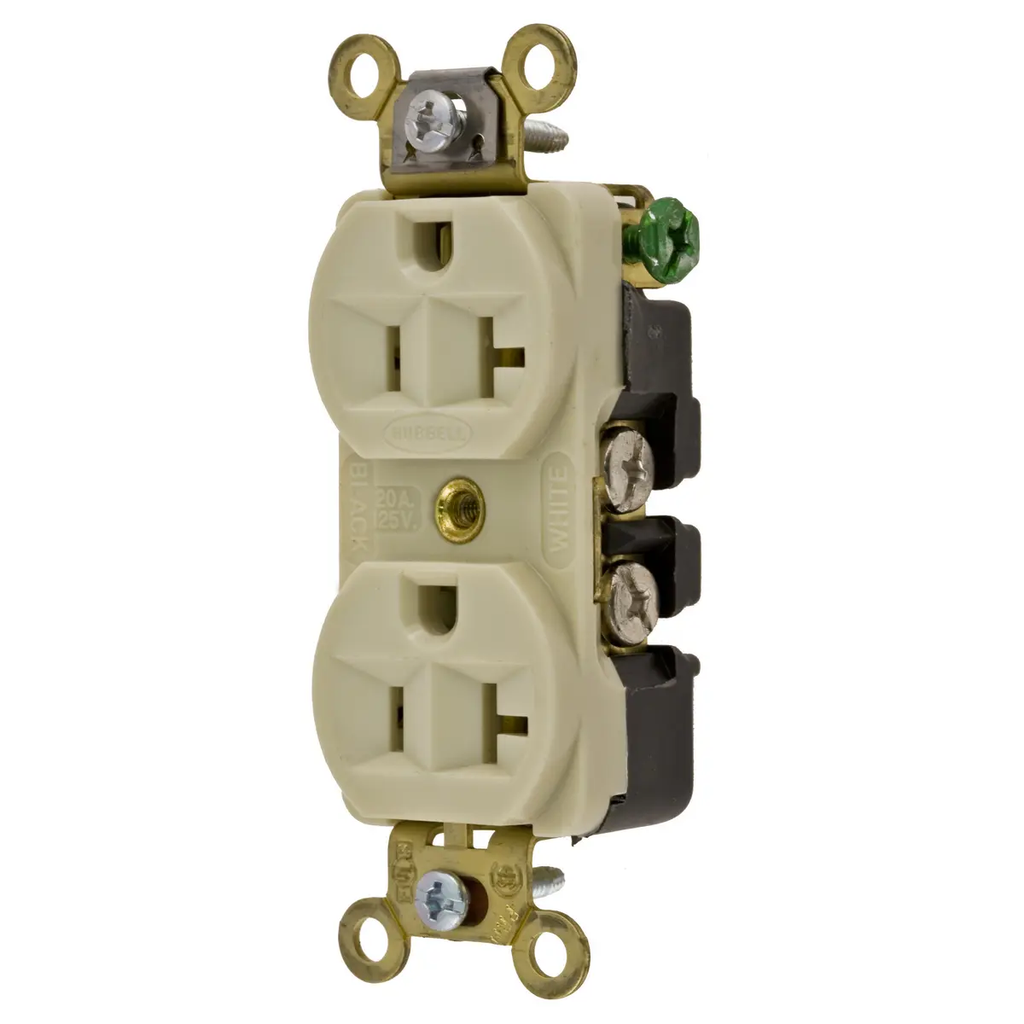

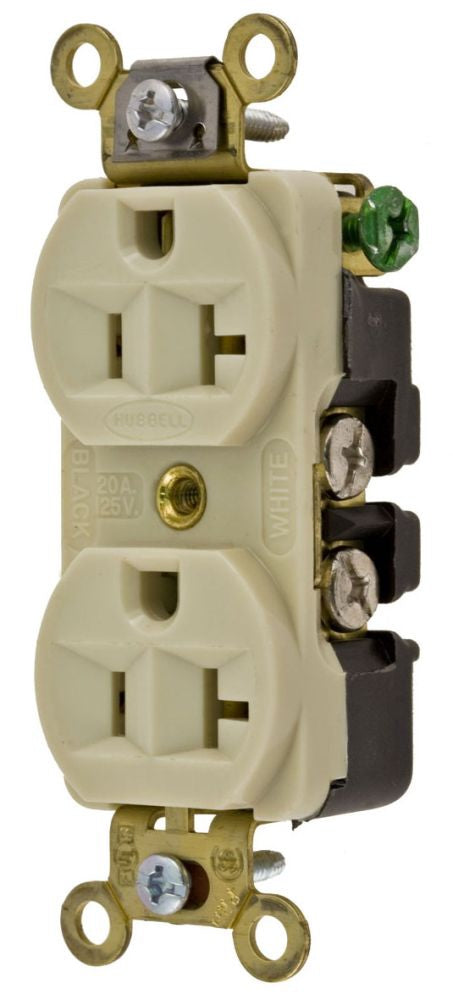

HBL5352I is a Hubbell 20 amp, 125 volt, 2-pole, 3-wire grounding duplex receptacle in ivory color designed for indoor dry locations.This extra heavy duty MAX compact duplex receptacle features a slender design with brass mounting strap, triple wipe brass contacts, and back and side wired screw terminals. It is UL listed, CSA certified, and compliant with NEMA WD-6 standards. Rated for 20A and 125VAC, it withstands 2000V dielectric voltage and operates in temperatures from -40°C to 75°C continuous.
- Key Specifications
- Amperage: 20 A
- Voltage: 125 VAC
- Poles: 2-Pole
- Wiring: 3-Wire Grounding
- Mounting Type: Screw Mounting
- Interrupt Rating: Certified for full rated current interrupting
- Series: Extra Heavy Duty MAX Compact
- Material: Nylon face, RTP base, brass contacts
- Operating Temperature: -40°C to 75°C continuous
- Certifications: UL Listed, CSA Certified, NEMA WD-6 Compliant
- Dimensions: 3.28 x 1.33 x 1.05 inches
- Color: Ivory
Specifications
- Part Number: HBL5352I
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Family : HBL
- Voltage : 125 125
Product Data
- UPC : 783585435046
- GTIN : 00783585435046
- Dimensions : 3.28 x 1.33 x 1.05 in 3.281 in H x 1.328 in W x 1.047 in D
- Weight : 0.3
