Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL5352GY

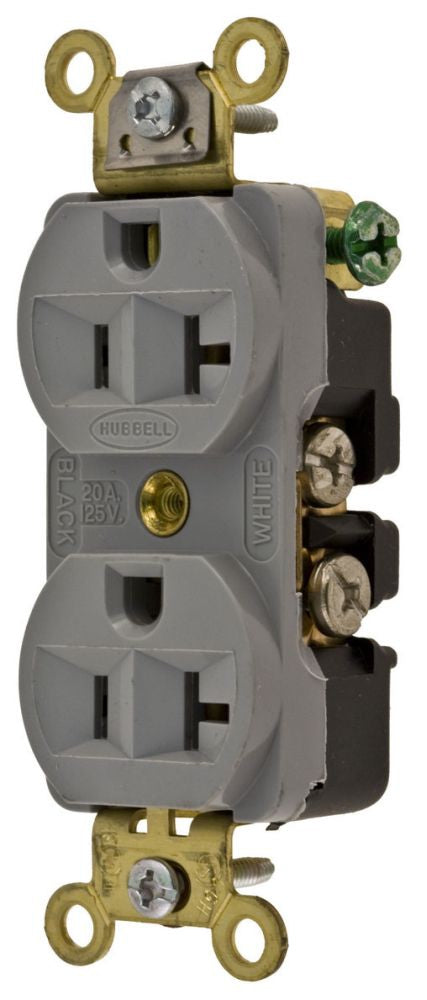

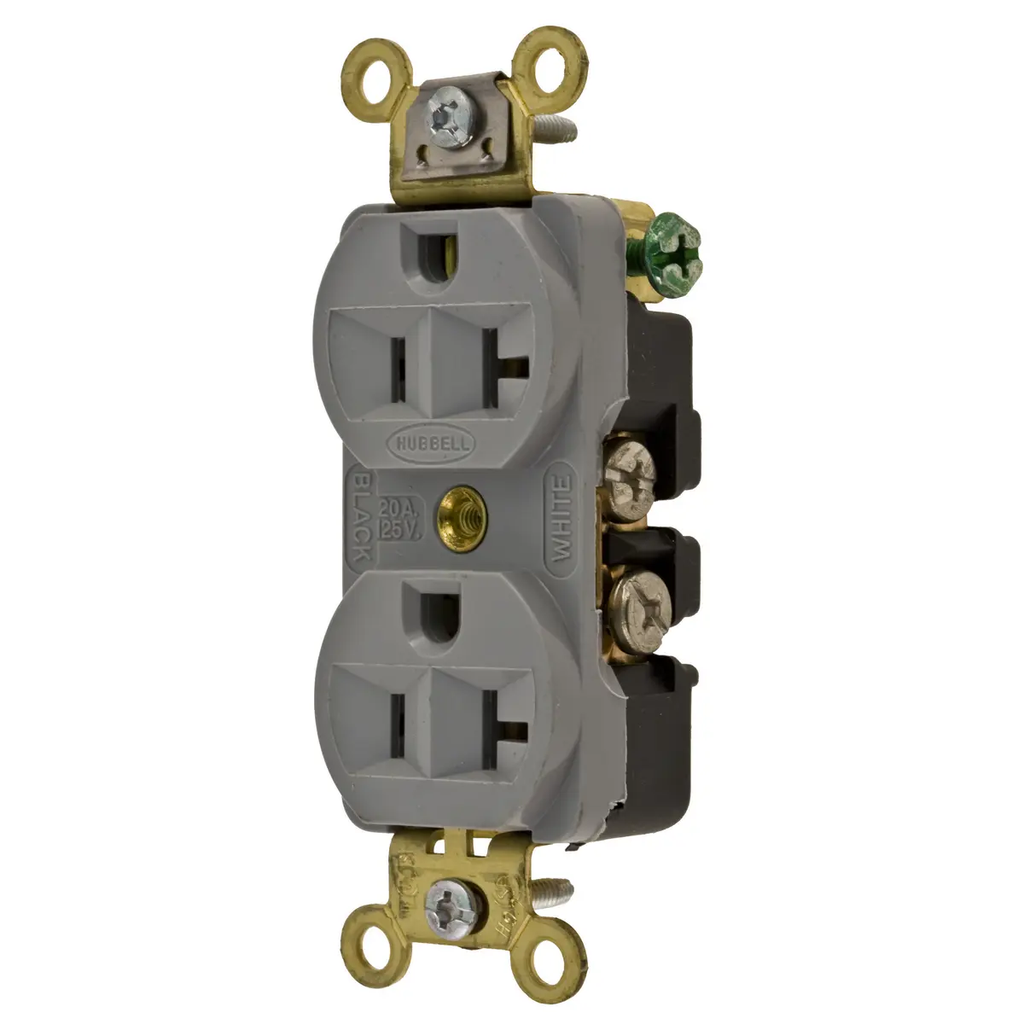

HBL5352GY is a Hubbell extra heavy duty compact duplex receptacle rated for 20 amps and 125 volts with a 2-pole, 3-wire grounding configuration in gray color.This industrial grade straight blade device features a slender, compact design with a nylon face and RTP base. It includes brass mounting strap and triple wipe brass contacts for reliable connectivity. The receptacle supports back and side wired screw terminals and withstands dielectric strength of 2,000 volts minimum. It is UL 498 and NEMA WD1 and WD5 certified, rated for 20A, 125V, and configured as NEMA 5-20R. Operating temperature ranges from -40°C to 75°C continuous. The device is TAA compliant and RoHS compliant, suitable for indoor dry environments unless otherwise protected.
- Key Specifications
- Amperage: 20 A
- Voltage: 125 V AC
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- Mounting Type: Screw Mount
- Interrupt Rating: Certified for full rated current interruption
- Series: Extra Heavy Duty Compact
- Face Material: Nylon
- Base Material: RTP
- Contacts: Brass with triple wipe
- Dielectric Strength: 2,000 V minimum
- Standards: UL 498, NEMA WD1 and WD5, RoHS compliant
Specifications
- Part Number: HBL5352GY
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Family : HBL
- Voltage : 125 125
Product Data
- UPC : 783585435022
- GTIN : 00783585435022
- Dimensions : 3.28 in L x 1.33 in W x 1.05 in H 3.28 x 1.33 x 1.05 in
- Weight : 5.19
