Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL530P9W

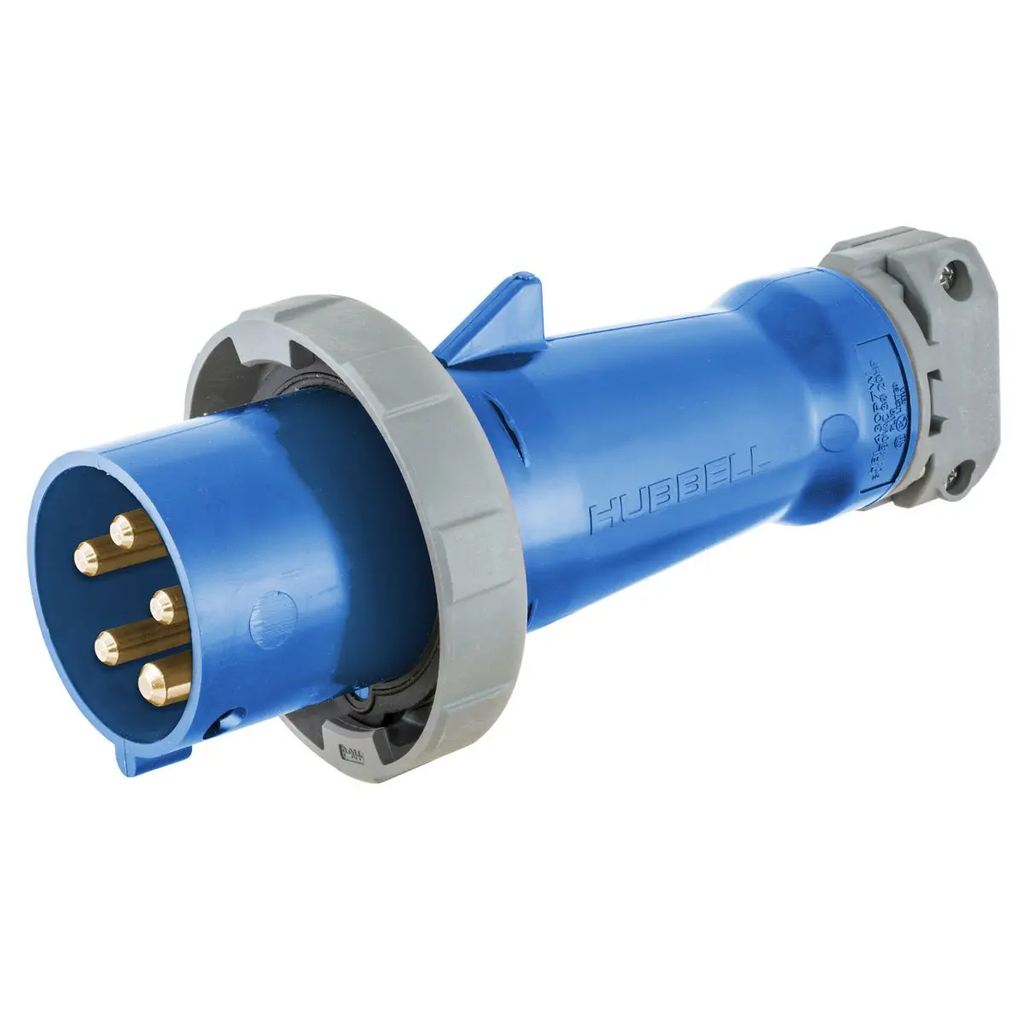

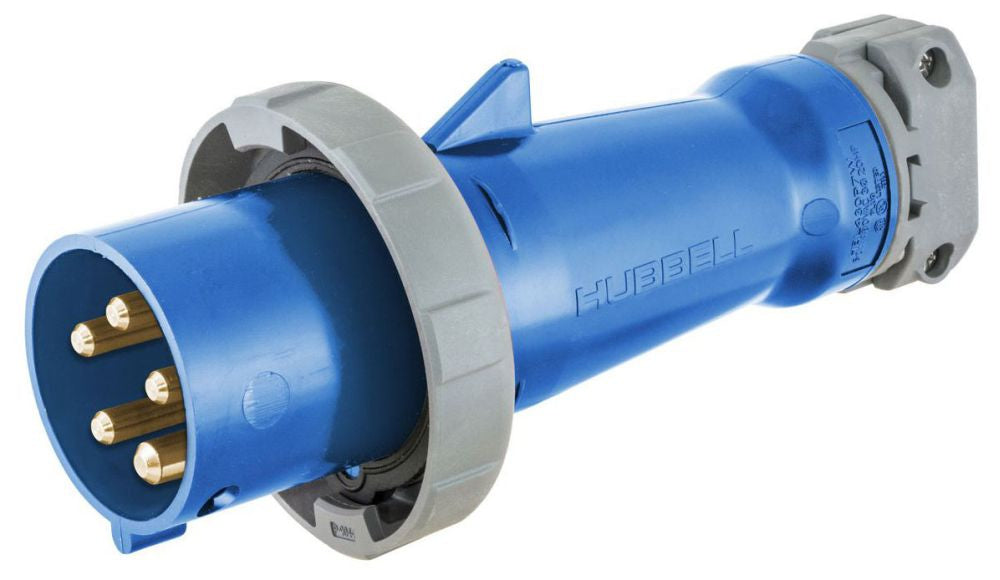

HBL530P9W is a 30A, 120/208V, 4-pole, 5-wire, watertight pin and sleeve plug designed for industrial-grade applications requiring reliable, high-ampacity connections. This Hubbell HBL series plug features a rugged composite housing, solid one-piece pins, gasketed sealing ring for watertight performance, and heavy-duty external cord grips for superior strain relief. It is rated for 30A, 120/208V AC, 4-pole, 5-wire grounding, and is suitable for use in demanding environments with IP67 ingress protection.
- Amperage Rating: 30A
- Voltage Rating: 120/208V AC
- Number of Poles: 4
- Number of Wires: 5
- Mounting Type: Cord Mounted
- Interrupt Rating: Certified for current interrupting at full rated current
- Series/Frame: HBL Series
- Terminal Type: Pressure Screw
- Wire Size: #12 AWG to #8 AWG
- Enclosure Rating: IP67
- Operating Temperature: -40 to 75°C
- Material: Composite
- Certifications: UL Type 4X, IP67, IEC 60309
Specifications
- Part Number: HBL530P9W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 120/208Y
Product Data
- UPC : 783585405483
- GTIN : 0783585405483
- Dimensions : 4.02 in Dia x 8.54 in L
- Weight : 0.4
