HBL530P7W - Hubbell 30A 277/480V 4-Pole 5-Wire Watertight Pin and Sleeve Plug, Industrial Grade, IP67, Red

HBL530P7W

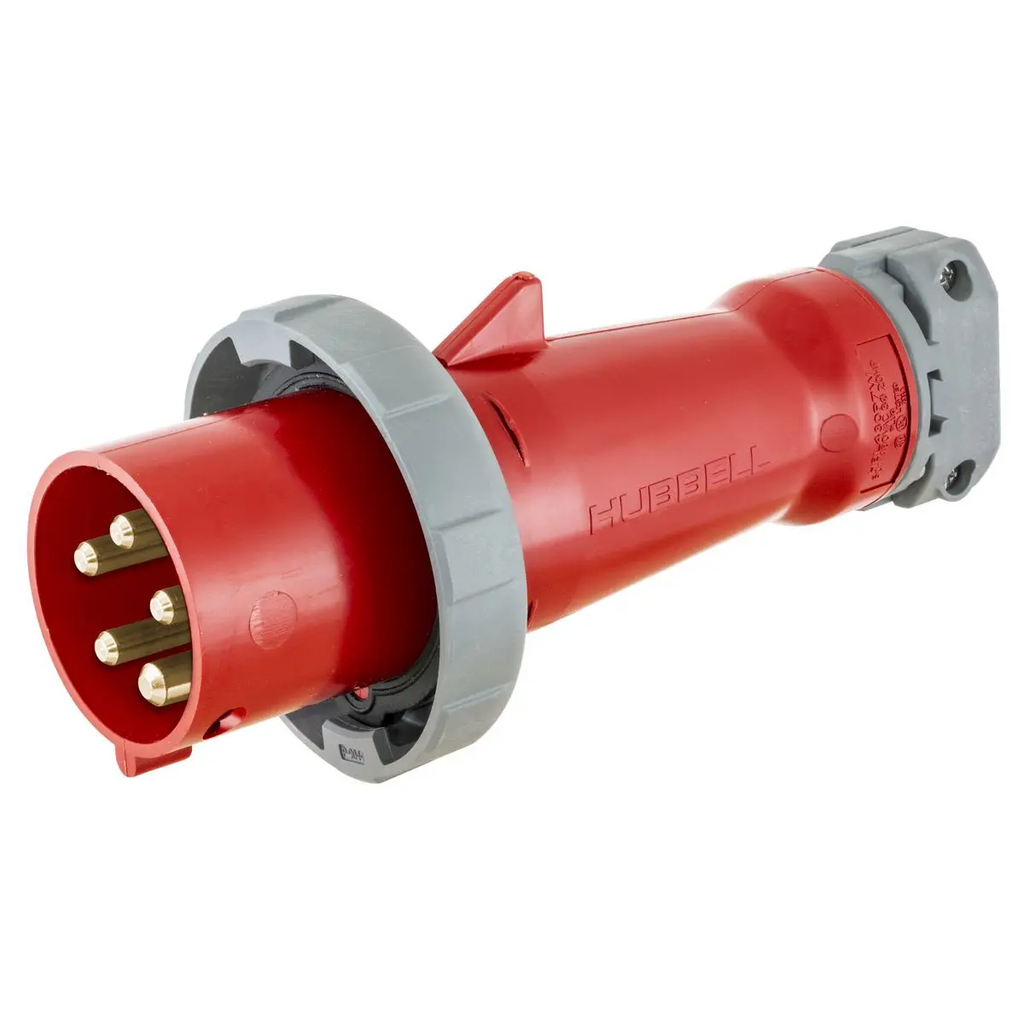

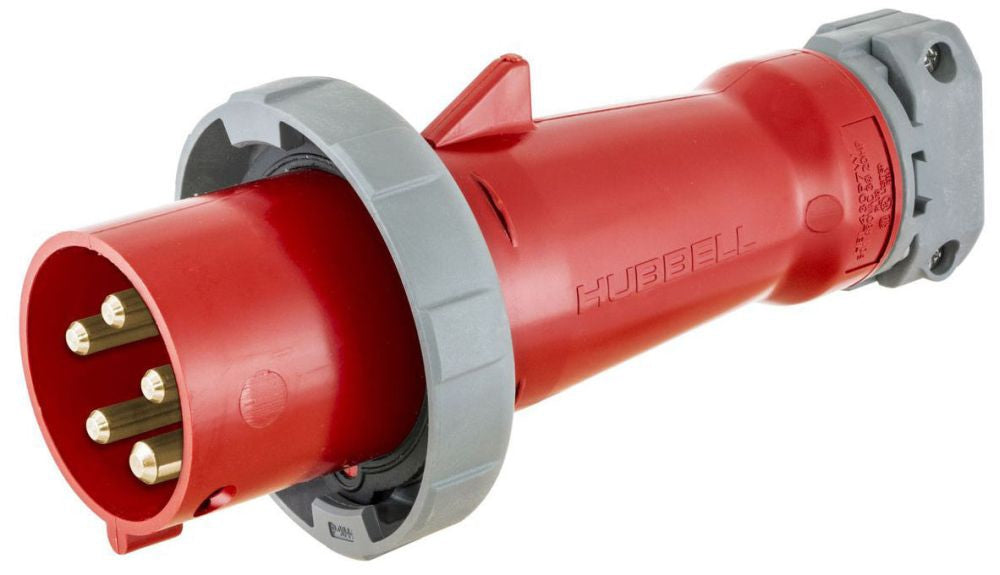

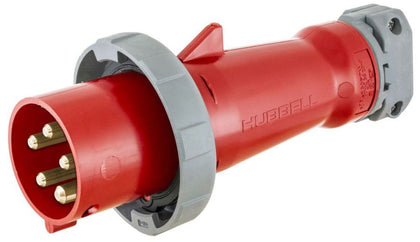

HBL530P7W is a heavy-duty, industrial-grade pin and sleeve plug designed for demanding environments requiring reliable, watertight connections. This Hubbell HBL series plug features a rugged composite housing, pressure screw terminals, and is rated for 30A at 277/480V AC, 4-pole, 5-wire grounding configuration. Ideal for portable and industrial applications, it provides superior strain relief and meets NEC 430.109(F) requirements for disconnecting means. Engineered for durability, the HBL530P7W offers a watertight, IP67-rated enclosure that protects against dust and water ingress. The thermoset polyester contact carrier resists electrical tracking and withstands high temperatures from overload or arcing. The external cord grip ensures secure cable attachment, and the plug is suitable for use in a wide temperature range from -40°C to 75°C. This plug is polarized, features Zytel ST801 nylon material, and is certified to UL 1682/1686C2 and CSA C22.2 standards.

• Part Number: HBL530P7W
• Manufacturer: Hubbell
• Amperage Rating: 30 A
• Voltage Rating: 277/480V AC
• Poles: 4
• Wires: 5 (Grounding)
• Mounting Type: Cord Mount
• Interrupt Rating: Full Load
• Series/Frame: HBL
• Enclosure Rating: IP67
• Material: Composite, Zytel ST801 Nylon
• Certifications: UL 1682/1686C2, CSA C22.2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL530P7W
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve
• Family : HBL
• Voltage : 277/480Y

Product Data

• UPC : 783585405476
• GTIN : 00783585405476
• Dimensions : 4.02 in Dia x 8.54 in L
• Weight : 5.19
