2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL5269C

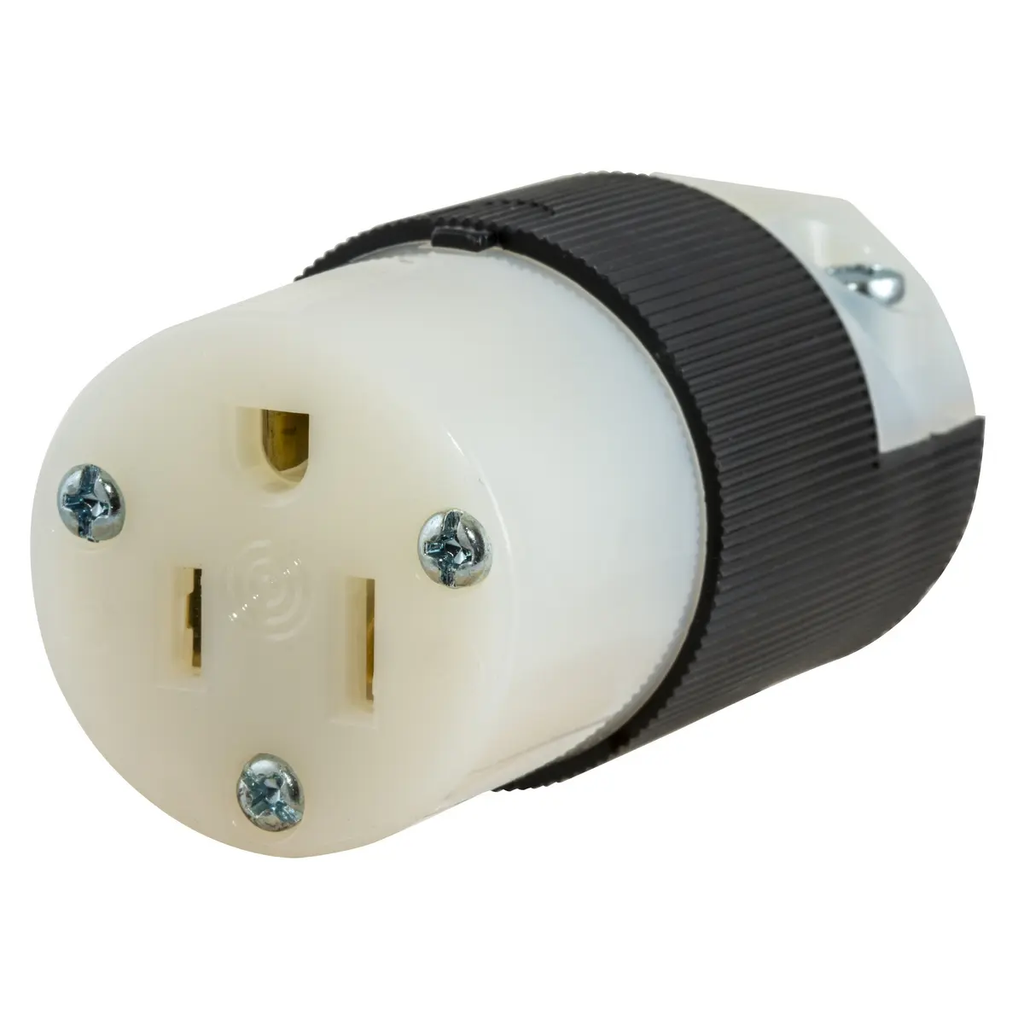

HBL5269C is a heavy-duty straight blade connector designed for industrial and commercial applications, featuring a robust polycarbonate and nylon construction for reliable power connections. This Hubbell Insulgrip connector provides a secure, grounded connection with screw terminals and is rated for 15A, 125V AC, 2-pole, 3-wire grounding. The connector is cord-mounted and features a beveled housing to prevent snagging, with fast lead assembly screws for easy installation. It is suitable for use with conductor sizes #18 AWG to #10 AWG and operates within a temperature range of -40°C to 75°C. The device is UL Listed and CSA Certified, ensuring compliance with industry standards.
- Amperage Rating: 15 A
- Voltage Rating: 125 V AC
- Number of Poles: 2
- Number of Wires: 3
- Mounting Type: Cord Mount
- Terminal Type: Screw
- Series: Insulgrip
- Interrupt Rating: Certified for current interrupting at full rated current
- Dielectric Strength: Withstands 2,000V minimum
- Material: Polycarbonate and Nylon
- Color: Black/White
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: HBL5269C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Functions : LIG - Long-Time, Instantaneous and Ground Fault
- Protection : Solid State
- Compatible Frames : SSD,SHD,SSF,SHF
Product Data
- UPC : 783585173252
- GTIN : 783585173259
- Weight : 0.5
