Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL5262

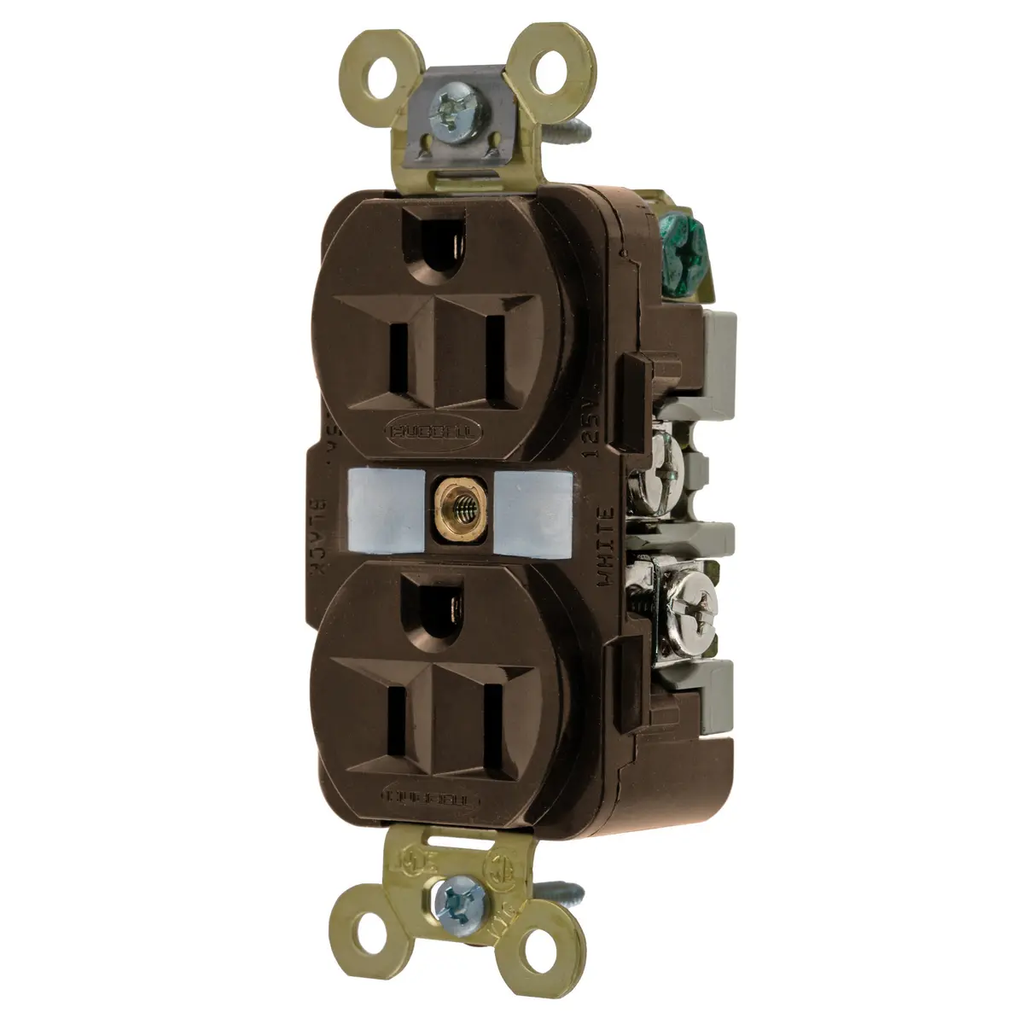

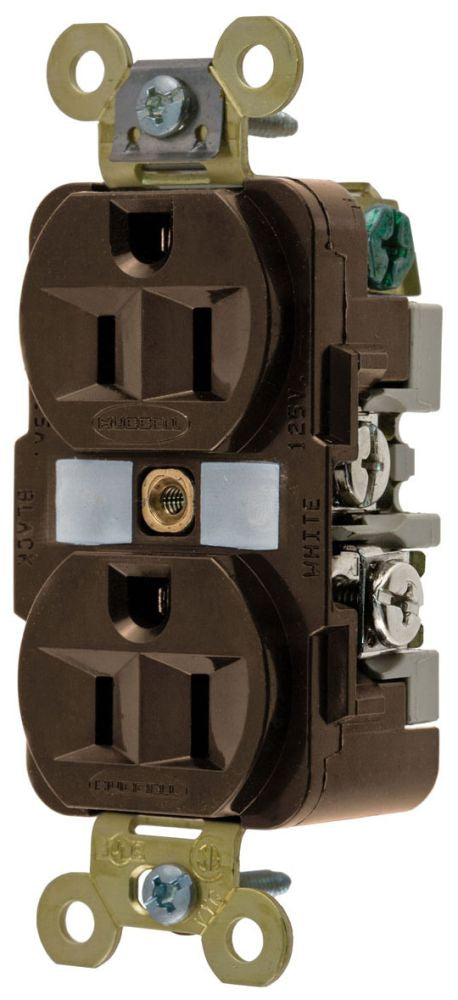

HBL5262 is a Hubbell extra heavy duty industrial grade duplex receptacle rated for 15 amps and 125 volts with 2 poles and 3-wire grounding in brown color.This receptacle features a nylon face and PBT base with back and side wiring options. It includes oversized bell-shaped ground contacts and nickel-plated steel retaining shields for enhanced grounding reliability and durability. Designed for indoor dry environments, it meets UL 498 and NEMA WD-1, WD-5 standards, ensuring safety and performance in industrial and commercial applications. The device mounts with screws and supports 14-12 AWG conductors.
- Key Specifications
- Amperage: 15A
- Voltage: 125V
- Poles: 2
- Wiring: 3-wire grounding
- Mounting Type: Screw flush mount
- Material: Nylon face, PBT base
- Configuration: NEMA 5-15R
- Grade: Extra Heavy Duty Industrial
- Color: Brown
- Certifications: UL 498, NEMA WD-1, WD-5
- Environmental: Indoor dry locations
- Back and side wiring
Specifications
- Part Number: HBL5262
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125 125
Product Data
- UPC : 783585435107
- GTIN : 30783585435108
- Dimensions : 3.28 in H x 1.65 in W x 1.19 in D 3.28 x 1.65 x 1.19 in
- Weight : 5.19
