Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL5252I

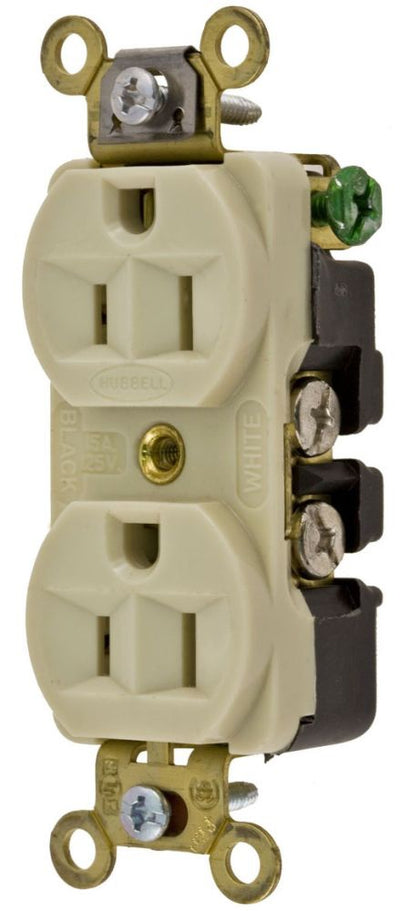

HBL5252I is a Hubbell 15A 125V 2-Pole 3-Wire grounding straight blade duplex receptacle in ivory color designed for industrial-grade applications.This extra heavy duty compact receptacle features a slender design with brass mounting strap and triple wipe contacts. It is back and side wired, rated for 15 amps and 125 volts AC, with a NEMA 5-15R configuration. It supports #14 to #10 AWG wire sizes and is suitable for indoor dry environments. The device withstands 2000V dielectric strength and operates from -40°C to 75°C continuously. It is UL listed and RoHS compliant.
- Key Specifications
- Amperage: 15 A
- Voltage: 125 VAC
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- Mounting: Screw Mounting
- Connection: Back and Side Wired
- Interrupt Rating: Certified for full rated current interrupting
- Series: Extra Heavy Duty Compact
- Material: Brass Mounting Strap, Thermoplastic Body
- Dimensions: 3.28 in H x 1.33 in W x 1.05 in D
- Operating Temperature: -40°C to 75°C
- Standards: UL Listed, RoHS Compliant
Specifications
- Part Number: HBL5252I
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125 125
Product Data
- UPC : 783585434902
- GTIN : 00783585434902
- Dimensions : 3.28 x 1.33 x 1.05 in 3.281 in H x 1.328 in W x 1.047 in D
- Weight : 1
