Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL5252

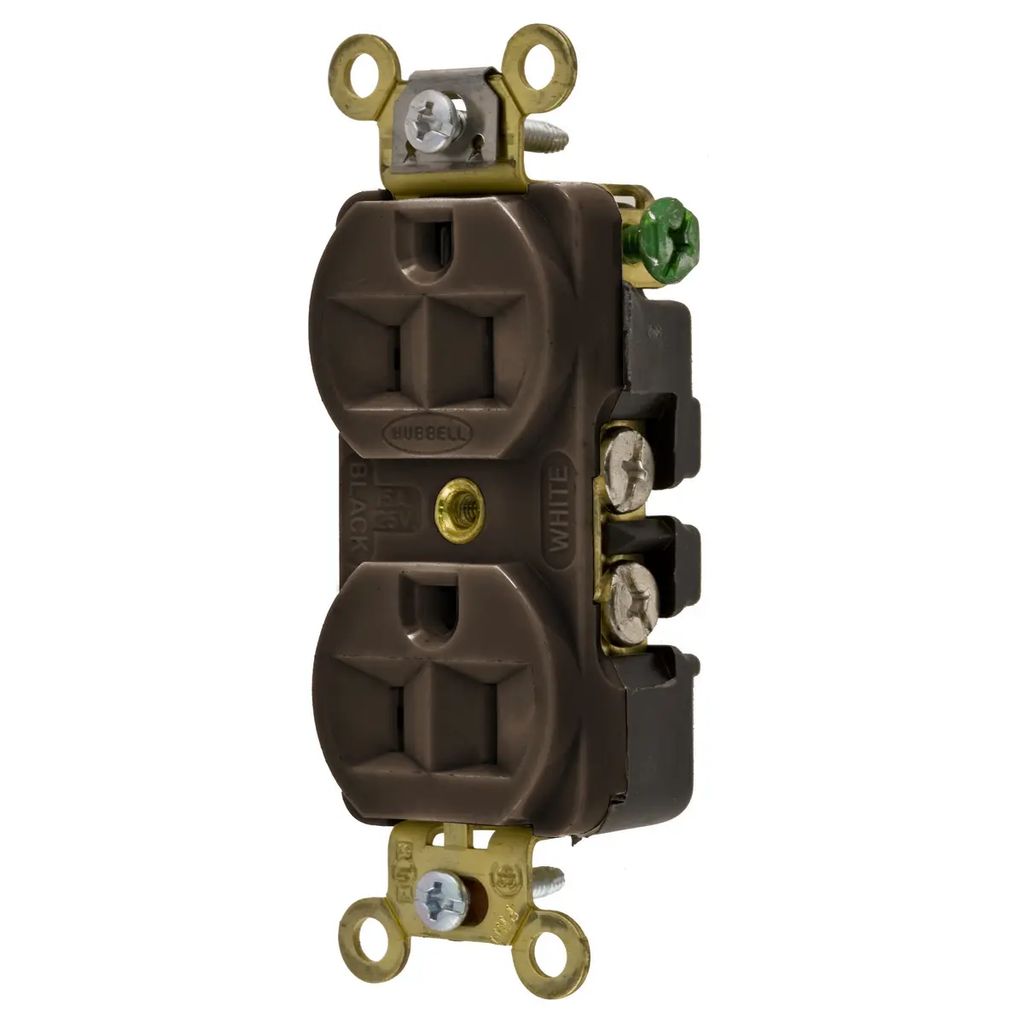

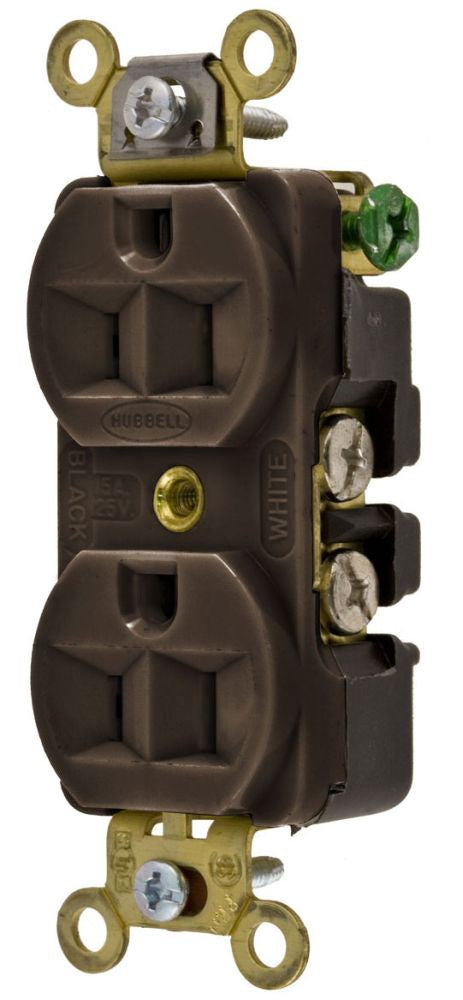

HBL5252 is a 15 amp, 125 volt, 2-pole, 3-wire brown extra heavy duty compact duplex receptacle from Hubbell.This industrial grade receptacle features a nylon face with a reinforced thermoplastic polyester base, designed for impact resistance and durability. It supports back and side wiring with screw terminals, is rated for 15 amps and 125 volts, and complies with UL 498 and CSA C22.2 standards. The device withstands a dielectric strength of 2000 volts minimum and operates in temperatures from -40 to 75 degrees Celsius. It is suitable for indoor dry environments and has a NEMA 5-15R configuration.
- Key Specifications
- Amperage Rating: 15 A
- Voltage Rating: 125 V
- Number of Poles: 2
- Number of Wires: 3 (Grounding)
- Mounting Type: Screw, Flush
- Interrupt Rating: Certified for full rated current interruption
- Series/Frame: Extra Heavy Duty Compact Industrial Series
- Material: Nylon Face, Reinforced Thermoplastic Polyester Base
- Wiring: Back and Side Wire
- Dielectric Strength: Withstands 2000 V minimum
- Standards: UL 498, CSA C22.2, NEMA WD-1, WD-5
- Operating Temperature: -40 to 75°C
Specifications
- Part Number: HBL5252
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125 125
Product Data
- UPC : 783585434841
- GTIN : 00783585434841
- Dimensions : 3.28 x 1.33 x 1.05 in 3.281 in H x 1.328 in W x 1.047 in D
- Weight : 5.19
