Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL520R7W

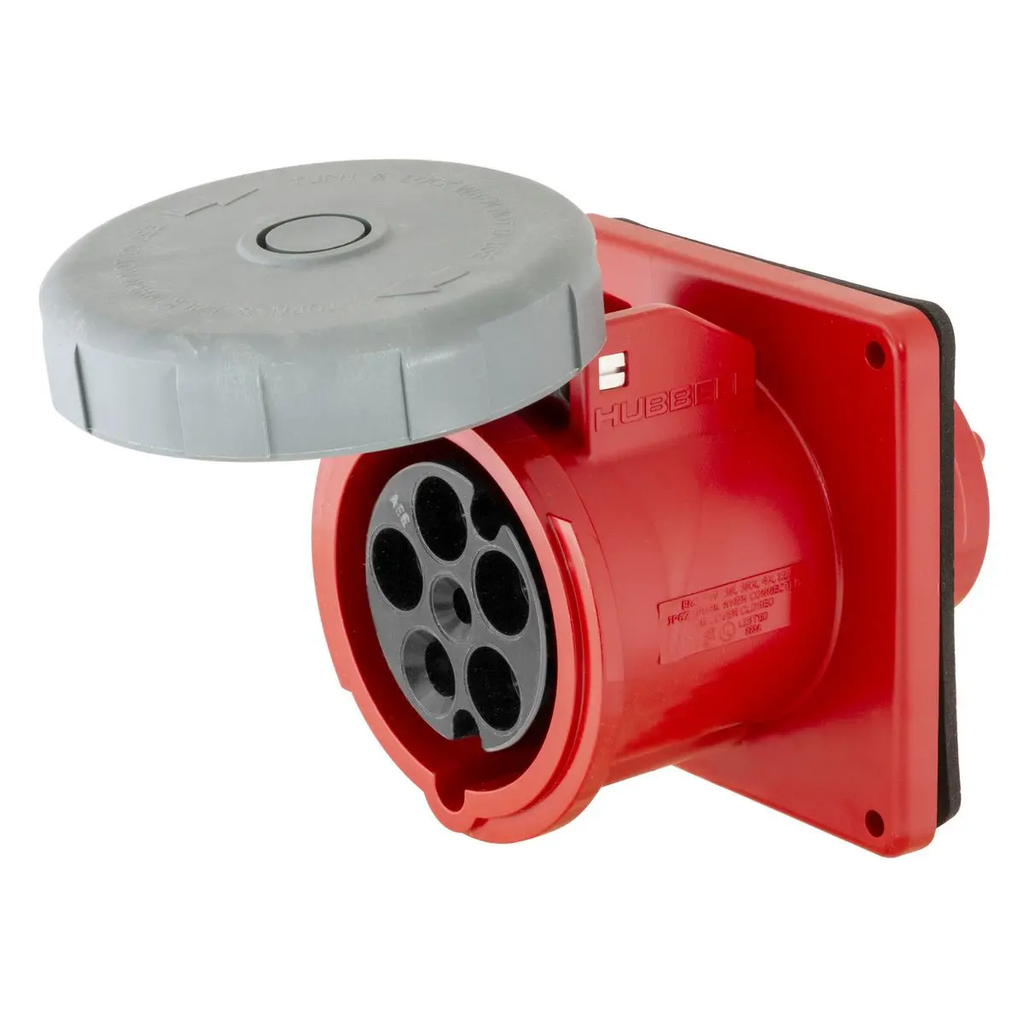

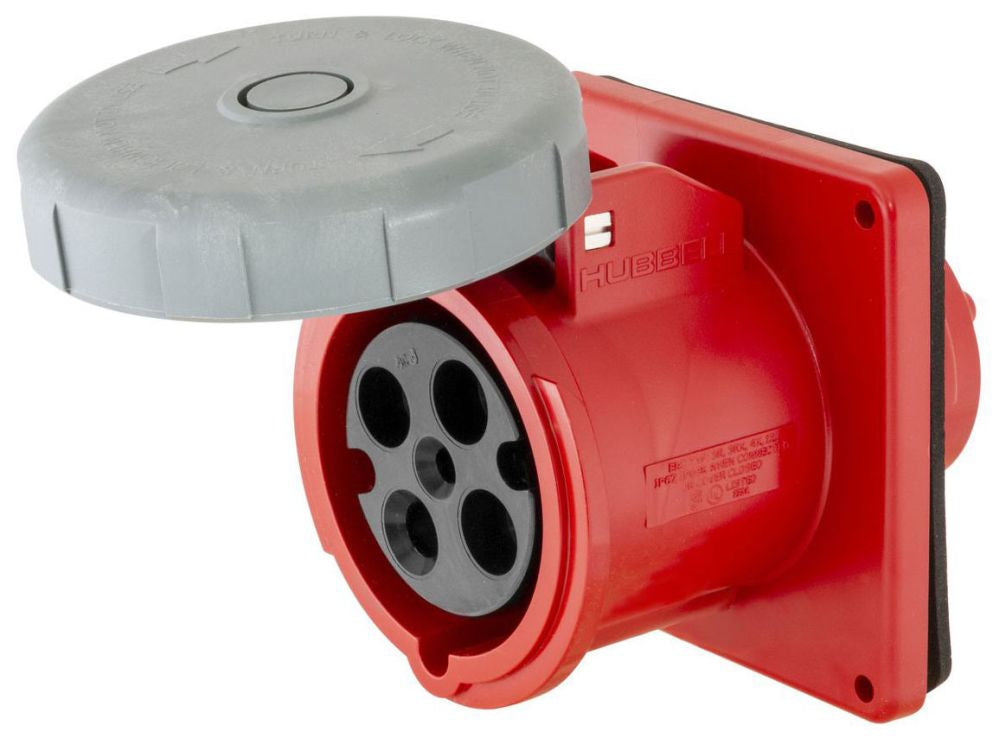

HBL520R7W is a Hubbell 20 Amp, 277/480 Volt, 4-Pole 5-Wire watertight IEC pin and sleeve flanged receptacle designed for heavy-duty industrial applications.This receptacle features a rugged thermoplastic housing with screw mounting hardware, providing superior strain relief and resistance to electrical tracking. It is rated for 20 Amps and 3 Phase Y 277/480 VAC, suitable for harsh environments with watertight protection. The device meets NEC 430.109(F) requirements and is certified for current interrupting at full rated current with a dielectric voltage rating of 3000V AC.
- Key Specifications
- Amperage: 20 A
- Voltage: 277/480 VAC, 3 Phase Y
- Poles: 4
- Wires: 5
- Mounting Type: Flanged, Screw Mounting
- Material: Thermoplastic housing
- Type: Watertight IEC Pin and Sleeve Receptacle
- Current Interrupting Certified: Yes
- Dielectric Voltage: 3000V AC
- Horsepower Rating: 10 HP
- Wire Size Range: #14 AWG to #10 AWG
- Color: Red
- Part Number: HBL520R7W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 277/480Y
- UPC : 783585405377
- GTIN : 00783585405377
- Dimensions : 3-3/4 in L x 3-3/4 in W
- Weight : 5.19
